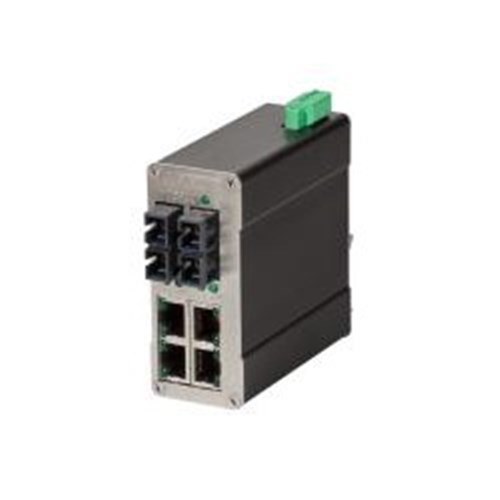

Red Lion 106FXE2-ST-15 Industrial Ethernet Switch (4) 10/100 Base-TX RJ45 (2) 100 Base-FX -Port

Product Code: 106FXE2-ST-15

  • FX Port-ST connection for reliable networking
  • Operates on 10-30 VDC with 270 mA current
  • Compact DIN rail mounting: 38x89x90 mm
  • Wide temp range: -40 to 70°C for harsh environments
  • Complies with FCC, CE, UL, and DNV standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
121.92mm
Height
97.28mm
Weight
0.7248kg
Width
37.84mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
4x RJ45, 2x ST
Fiber Distance Rating
15 km
Total Ports
6
Fiber Connector Type
ST Connector

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, UL, DNV
