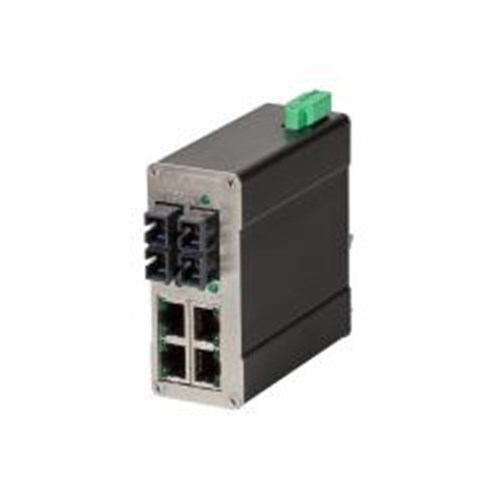

Red Lion 106FX2-SC Industrial Ethernet Unmanaged Switch (4) 10/100 Base-TX RJ45 (2) 100 Base-FX -Port

Product Code: 106FX2-SC

  • FX Port-SC connection for seamless integration
  • Supports 10-30 VDC with 270 mA current
  • Compact DIN rail mounting: 38x89x90 mm
  • Operates in -40 to 70°C temperature range
  • Complies with FCC, CE, UL/cUL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10-30 VDC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
121.92 mm
Height
97.28 mm
Weight
0.726 Kg
Width
37.84 mm

Environmental

Operating Temperature
-40 °C - 70 °C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
4x RJ45, 2x SC
Fiber Distance Rating
2 km
Total Ports
6
Fiber Connector Type
SC Connector

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL
