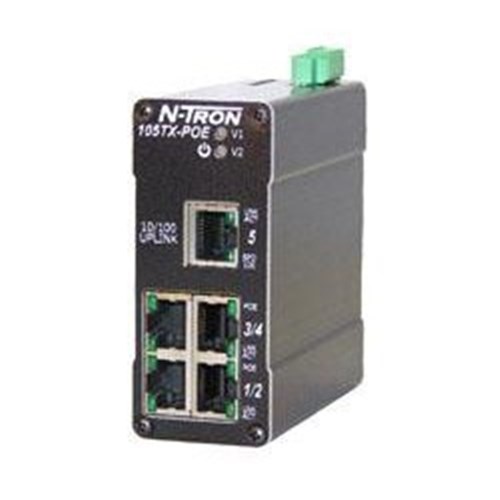

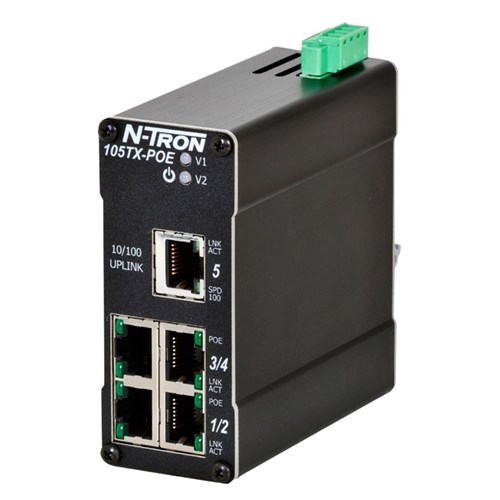

Red Lion 105TX-POE Industrial PoE Ethernet Switch 46-49VDC DIN Rail Mount

Product Code: 105TX-POE

  • Unmanaged networking switch for easy setup
  • Compact DIN Rail mounting design
  • Wide temp range: -40 to 85°C
  • 4 PoE ports + 1 standard RJ-45 port
  • Compliant with FCC, UL508 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial POE Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Rated Power
15.4 Watts per port
Rated Voltage (Ur)
46V to 49V DC

Mechanical

Mounting
DIN rail mount (bracket included)
Port Configuration
5x RJ45

Dimensions & Physical Data

Depth
90mm
Height
97mm
Weight
0.3kg
Width
38mm

Environmental

Operating Temperature without Derating
-40°C to 85°C
Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL

Documents

IPD Product Catalogue V17
