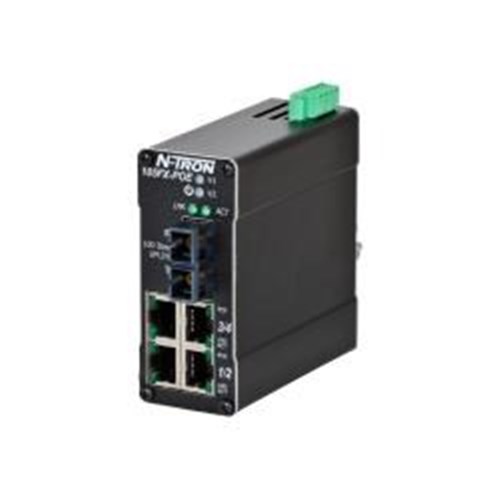

Red Lion 105FXE-SC-15 Unmanaged Industrial Ethernet Switch (4) 10/100 Base-TX (1) 100 Base-FX -Port

Product Code: 105FXE-SC-15

  • Supports 4x 10/100 Base-TX, 1x 100 Base-FX ports
  • Operates in -40 to 70°C temperature range
  • DIN Rail mounting for easy installation
  • Complies with FCC, EN61000, IEC61000 standards
  • Runs on 10-30 VDC, consuming 270 mA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Industrial Ethernet Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
121.92mm
Height
97.28mm
Weight
0.27kg
Width
37.84mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
4x RJ45, 1x SC
Fiber Distance Rating
15 km
Total Ports
5
Fiber Connector Type
SC Connector

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL
