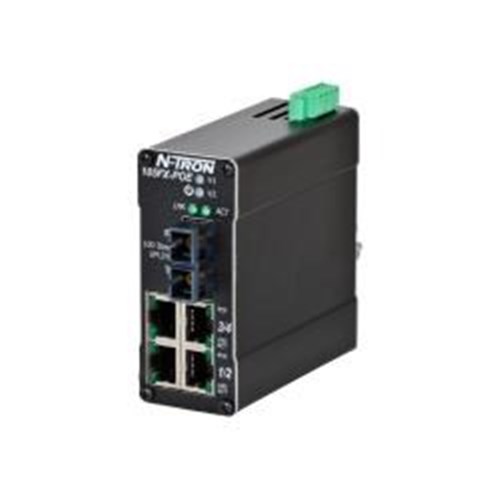

Red Lion 105FXE-SC-15-POE Unmanaged Industrial PoE Switch FX Port-SC 4 46-49VDC DIN Rail Mount

Product Code: 105FXE-SC-15-POE

  • Supports 4x10/100 Base-TX RJ-45, 1x100 Base-FX
  • Operates in extreme temps: -40 to 85°C
  • DIN Rail mounting for easy installation
  • Wide voltage range: 46-49 VDC
  • Complies with FCC, CE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Rated Power
15.4 Watts per port

Mechanical

Mounting
DIN rail mount (bracket included)
Port Configuration
4x RJ45, 1x SC

Dimensions & Physical Data

Depth
90mm
Height
97mm
Weight
0.3kg
Width
38mm

Environmental

Operating Temperature without Derating
-40°C to 85°C
Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 508 (US), ANSI/ISA-12.12.01-2007 (Class I, Division 2, Groups A–D, T4A), CSA C22.2 No. 14-M05 (Canada), CSA C22.2 No. 213-M1987 (Class I, Division 2, Hazardous Locations) CE, DNV, FCC, RoHS, UL
