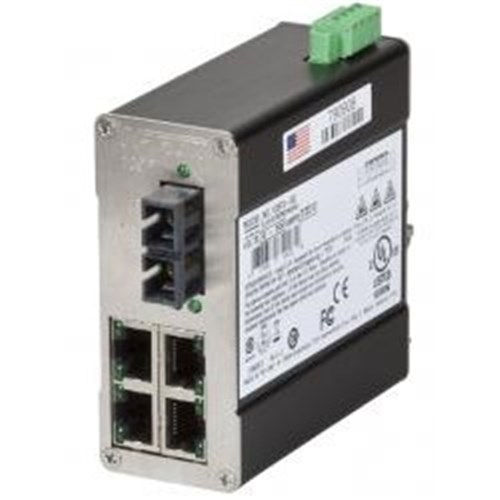

Red Lion 105FXE-SC-15-MDR Unmanaged Industrial Ethernet Switch (4) 10/100 Base-TX (1) 100 Base-FX -Port

Product Code: 105FXE-SC-15-MDR

  • Supports 4x 10/100 Base-TX, 1x 100 Base-FX ports
  • Operates in -40 to 70°C temperature range
  • Metal DIN Rail mounting for secure installation
  • Complies with FCC, IEEE1613 standards
  • Compact size: 38mm width, 89mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Industrial Ethernet Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
121.92mm
Height
96.58mm
Weight
0.7701kg
Width
37.84mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
4x RJ45, 1x SC
Fiber Distance Rating
15 km
Total Ports
5
Fiber Connector Type
SC Connector

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL
