Product Code: 105FX-ST-POE

FX Port-ST connection for reliable data transfer
DIN Rail mounting for easy installation
Wide temp range: -40 to 85°C for harsh conditions
Complies with multiple global safety standards
Compact size: 38mm W x 97mm H x 90mm D

Specifications

General

Product Type

Unmanaged Industrial POE Switch

Brand

Red Lion

Series

N-Tron

Electrical

Rated Power

15.4 Watts per port

Rated Voltage (Ur)

46V to 49V DC

Mechanical

Mounting

DIN rail mount (bracket included)

Port Configuration

4x RJ45, 1x ST

Dimensions & Physical Data

Depth 90mm	Height 97mm	Weight 0.3kg
Width 38mm

Environmental

Operating Temperature without Derating -40°C to 85°C	Storage Temperature -40°C to 85°C	Operating Temperature -40°C to 85°C
IP Rating IP20

Safety, Standards & Compliance

Standards and Approvals

UL 508 (US), ANSI/ISA-12.12.01-2007 (Class I, Div 2, Groups A–D, T4), C22.2 No. 14-M05 (Canada), C22.2 No. 213-M1987 (Canada, Class I, Div 2), ABS Type Approval for Shipboard Applications, DNV-GL Type Approval Certification, GOST-R Certified CE, DNV, FCC, RoHS, UL

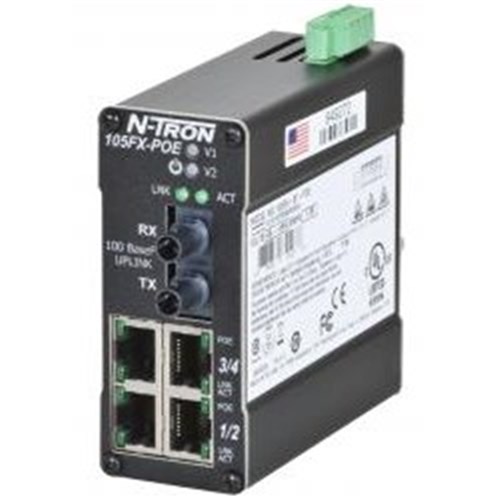

Red Lion 105FX-ST-POE Unmanaged Industrial PoE Switch FX Port-ST 4 46-49VDC DIN Rail Mount

Product Code: 105FX-ST-POE
