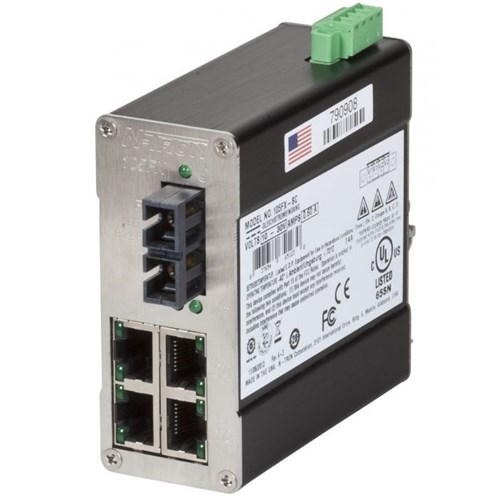

Red Lion 105FX-SC Unmanaged Industrial Ethernet Switch (4) 10/100 Base-TX (1) 100 Base-FX -Port

Product Code: 105FX-SC

  • Unmanaged switch with FX Port-SC connection
  • Suitable for 10-30 VDC power supply
  • Compact DIN rail mounting design
  • Operates in -40 to 70°C temperature range
  • Complies with FCC, EN, IEC, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10-30 VDC

Mechanical

Housing Material
Hardened Metal
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
121.92 mm
Height
97.28 mm
Weight
0.27 Kg
Width
37.84 mm

Environmental

Operating Temperature
-40 °C - 70 °C

Communication & Control

Connectors/Input/Output
4x RJ45, 1x SC
Total Ports
5
Fiber Connector Type
SC Connector

Safety, Standards & Compliance

Standards and Approvals
FCC Title 47 Part 15 Class A, ICES-003 Class A CE: EN61000-6-2, EN61000-3-2,3; IEC61000-4-2,3,4,5,6,11 EN55011 UL/cUL: Hazardous Locations Class I, Div 2, GroupsA, B, C, D or non-Hazardous Locations, ANSI/ISA 12.12.01-2000, T4A DNV-GL Type Approved and ABS for Shipboard Applications EN50155 Type Approved
