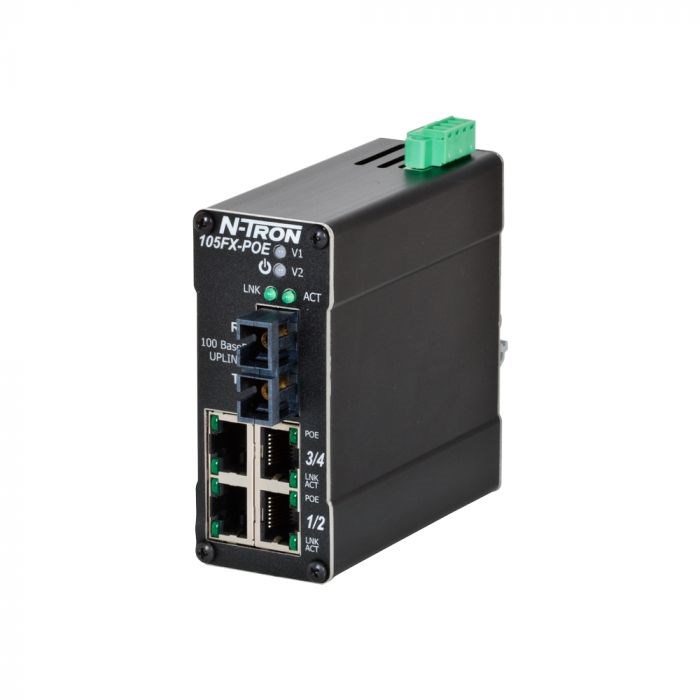

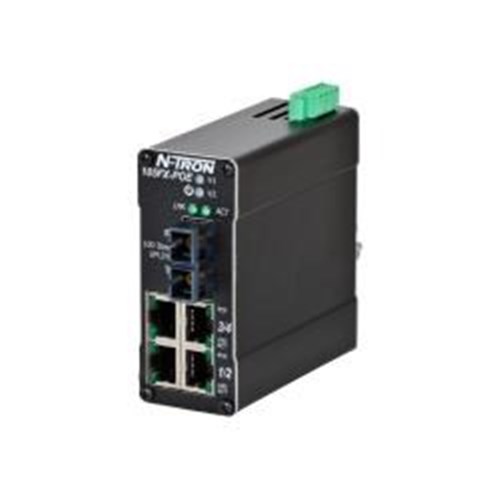

Red Lion 105FX-SC-POE Unmanaged Industrial MDR PoE Switch FX Port-SC 4 46-49VDC DIN Rail Mount

Product Code: 105FX-SC-POE

  • Unmanaged switch with FX Port-SC connection
  • Operates at 46-49 VDC, 65 mA current
  • Compact size: W38 x H97 x D90 mm
  • Wide temp range: -40 to 85°C
  • Mounts easily on DIN Rail
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Red Lion
Series
N-Tron

Electrical

Rated Power
15.4 Watts per port
Rated Voltage
46-49 VDC

Mechanical

Mounting Type
DIN rail mount (bracket included)

Dimensions & Physical Data

Weight
770.1 g

Environmental

Storage Temperature
-40 °C - 85 °C
Operating Temperature
-40 °C - 85 °C
IP Rating
IP20

Communication & Control

Port Type
4x RJ45, 1x SC

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL UL508 (US), ANSI/ISA-12.12.01-2007 (Class I, Div 2, Groups A–D, T4), C22.2 No. 14-M05 (Canada), C22.2 No. 213-M1987 (Canada, Class I, Div 2), ABS Type Approval for Shipboard Applications, DNV-GL Type Approval Certification, GOST-R Certified

Documents

IPD Product Catalogue V17
