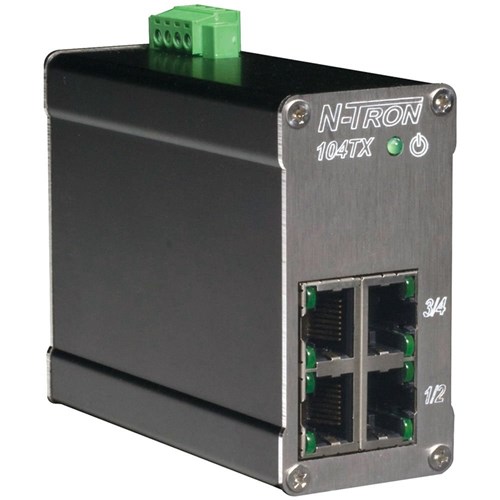

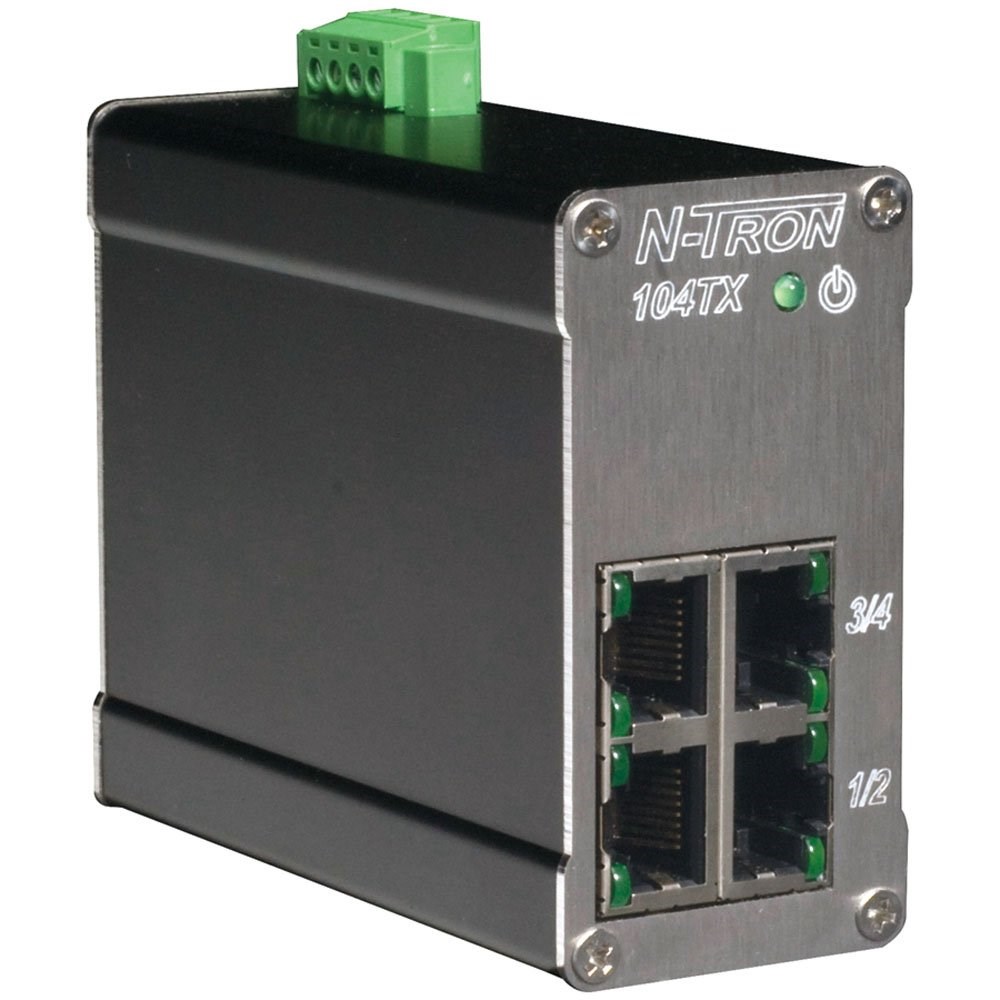

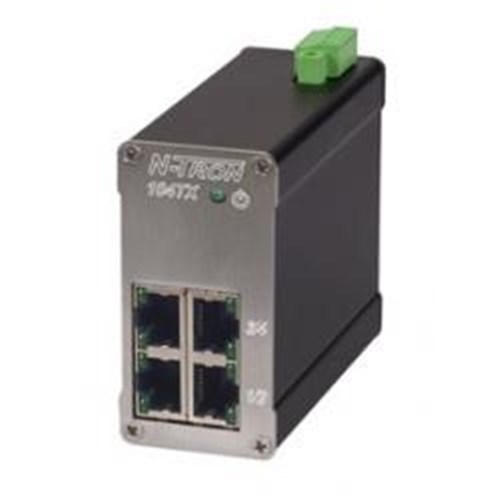

Red Lion 104TX Industrial Ethernet Unmanaged Switch PSA (4) 10/100BaseTX RJ45 -Port

Product Code: 104TX

  • Unmanaged PSA series for simple setups
  • Fits on DIN Rail for easy installation
  • Compact size: 38mm W x 73mm H x 90mm D
  • Supports (4) 10/100BaseTX RJ-45 ports
  • IEC compliant for reliable performance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10-30 VDC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
107.18 mm
Height
89.62 mm
Weight
0.454 Kg
Width
37.84 mm

Environmental

Operating Temperature
-40 °C - 80 °C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
4x RJ45
Total Ports
4

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL
