Products

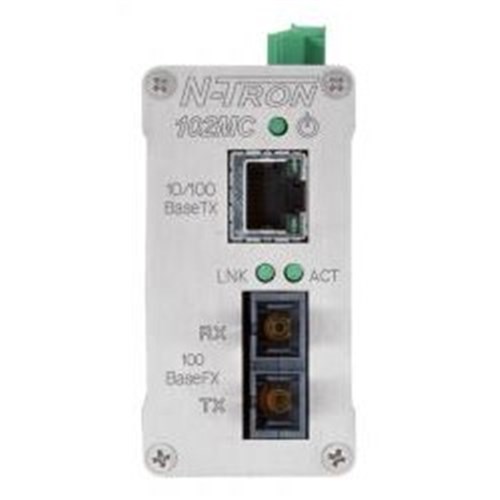

Red Lion 102MC-SC Unmanaged Industrial Media Converter 1 x 10/100 Base-TX RJ45 1 x 100 Base-FX

Product Code: 102MC-SC

  • FX Port-SC connection for reliable networking
  • Operates within 10-30 VDC range
  • Compact size: 39mm(W) x 74mm(H) x 123mm(D)
  • Withstands temps from -40 to 80°C
  • DIN Rail mountable design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Converter
Brand
Red Lion
Series
N-Tron

Electrical

Rated Voltage (Ur)
10V to 30V DC

Mechanical

Material
Hardened Metal
Mounting
DIN-Rail

Dimensions & Physical Data

Depth
123mm
Height
74mm
Weight
0.22kg
Width
39mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 80°C

Communication & Control

Connectors/Input/Output
10/100BaseTX: One (1) RJ-45 TX Port 100BaseFX: One (1) ST or SC Duplex Port
Fiber Distance Rating
2 km

Safety, Standards & Compliance

Standards and Approvals
FCC Title 47 Part 15 Subpart BClass A ICES-003- Class A CE: EN 61000-6-2, 4 EN 61000-4-2, 3, 4, 5, 6 UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000, Class I, Div 2, Groups A, B, C, D, T5; EN 55011 Class A GOST-R Certifi ed RoHS Compliant ABS Type Approval for Shipboard Applications DNV-GL Type Approval Certifi cation EN 50155 for Railway Applications

Documents

IPD Product Catalogue V17
