Product Code: 102MCE-SC-15

Specifications

General

Product Type

Media Converter

Brand

Red Lion

Series

N-Tron

Electrical

Rated Voltage (Ur)

10V to 30V DC

Mechanical

Material

Hardened Metal

Mounting

DIN-Rail

Dimensions & Physical Data

Depth 123mm	Height 74mm	Weight 0.22kg
Width 39mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 80°C

Communication & Control

Connectors/Input/Output

10/100BaseTX: One (1) RJ-45 TX Port 100BaseFX: One (1) ST or SC Duplex Port

Fiber Distance Rating

15 km

Safety, Standards & Compliance

Standards and Approvals

FCC Title 47 Part 15 Subpart BClass A ICES-003- Class A CE: EN 61000-6-2, 4 EN 61000-4-2, 3, 4, 5, 6 UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000, Class I, Div 2, Groups A, B, C, D, T5; EN 55011 Class A GOST-R Certifi ed RoHS Compliant ABS Type Approval for Shipboard Applications DNV-GL Type Approval Certifi cation EN 50155 for Railway Applications

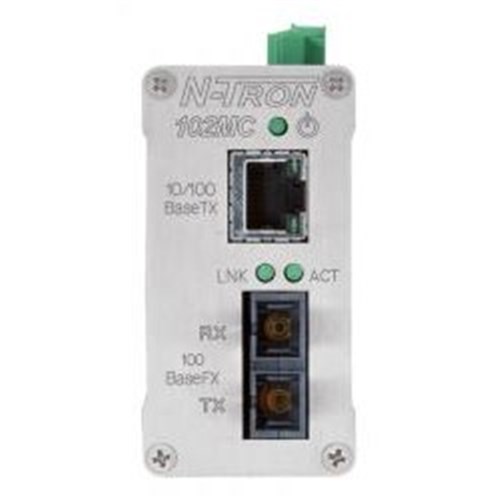

Red Lion 102MC INDUSTRIAL MEDIA CONVERTER, SC 15KM 102MCE-SC-15

Product Code: 102MCE-SC-15
