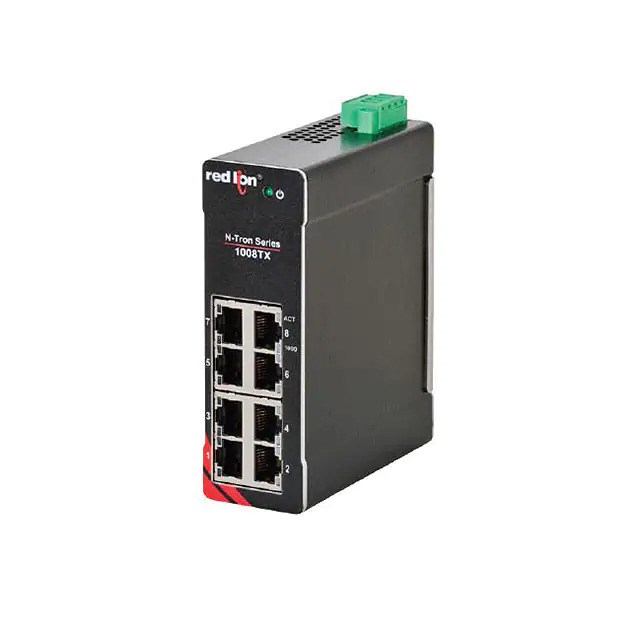

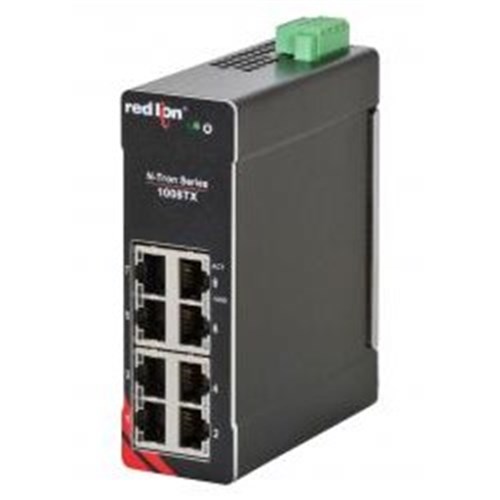

Red Lion 1008TX Industrial Ethernet Switch 10-49VDC DIN Rail Mount

Product Code: 1008TX

  • Unmanaged N-Tron Networking series
  • Wide voltage range: 10-49 VDC
  • Compact size: 38mm W x 117mm H x 104mm D
  • Operates in extreme temps: -40 to 85°C
  • CE and IEEE1613 approved for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Rated Power
6W
Rated Voltage (Ur)
10V to 49V DC

Mechanical

Mounting
DIN rail mount (bracket included)
Port Configuration
8x RJ45

Dimensions & Physical Data

Depth
103.6mm
Height
117.3mm
Weight
0.49kg
Width
38.4mm

Environmental

Operating Temperature without Derating
-40°C to 85°C
Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, CE, FCC, UL

Documents

IPD Product Catalogue V17
