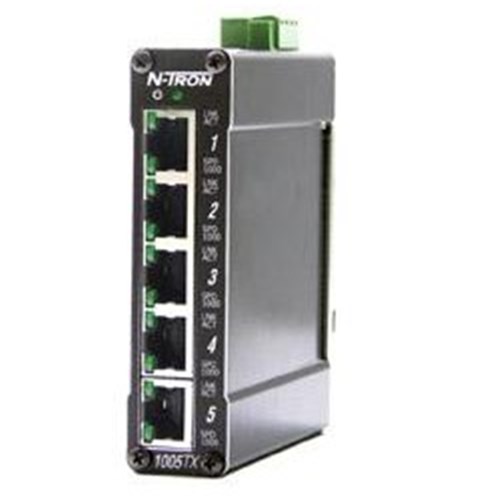

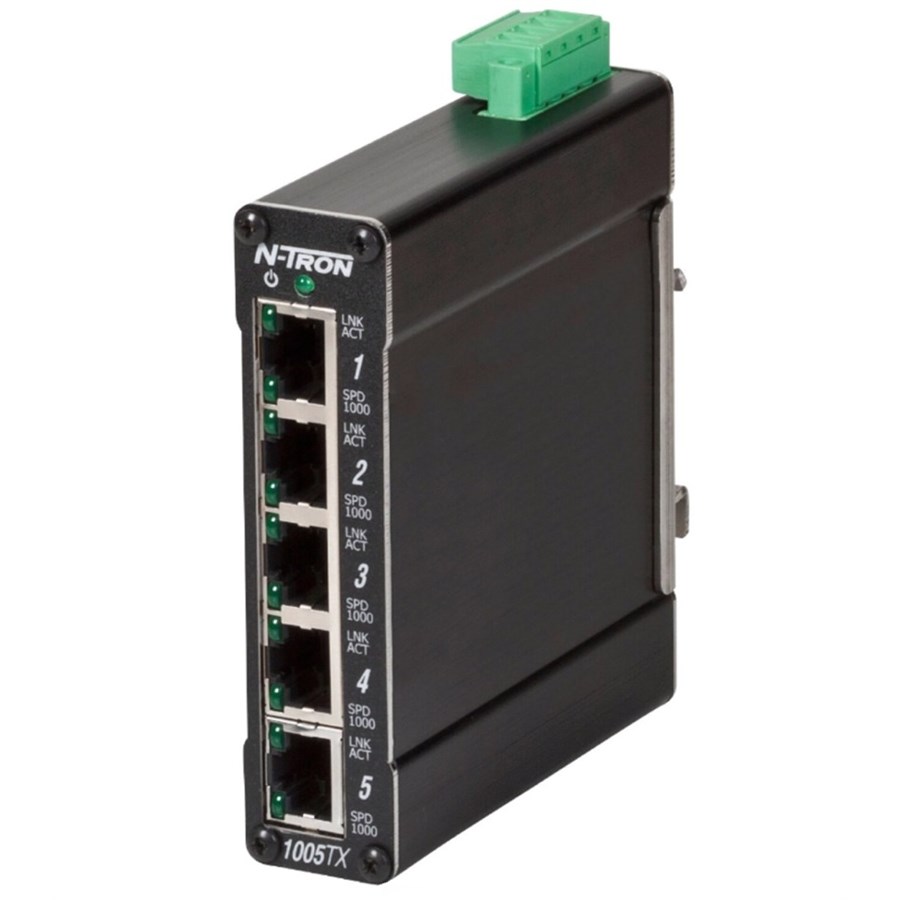

Red Lion 1005TX Gigabit Industrial Ethernet Switch MB (5) 10/100/1000BASE-T RJ45 -Port

Product Code: 1005TX

  • Unmanaged switch for simple network setups
  • Compact DIN Rail mount design
  • Wide voltage range: 10-30 VDC
  • Operates in extreme temps: -40 to 85°C
  • Features 5 RJ-45 ports with gigabit speed
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10-30 VDC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
97.77 mm
Height
110.97 mm
Weight
0.27 Kg
Width
25.4 mm

Environmental

Operating Temperature
-40 °C - 85 °C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
5x RJ45
Total Ports
5

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL

Documents

IPD Product Catalogue V17
