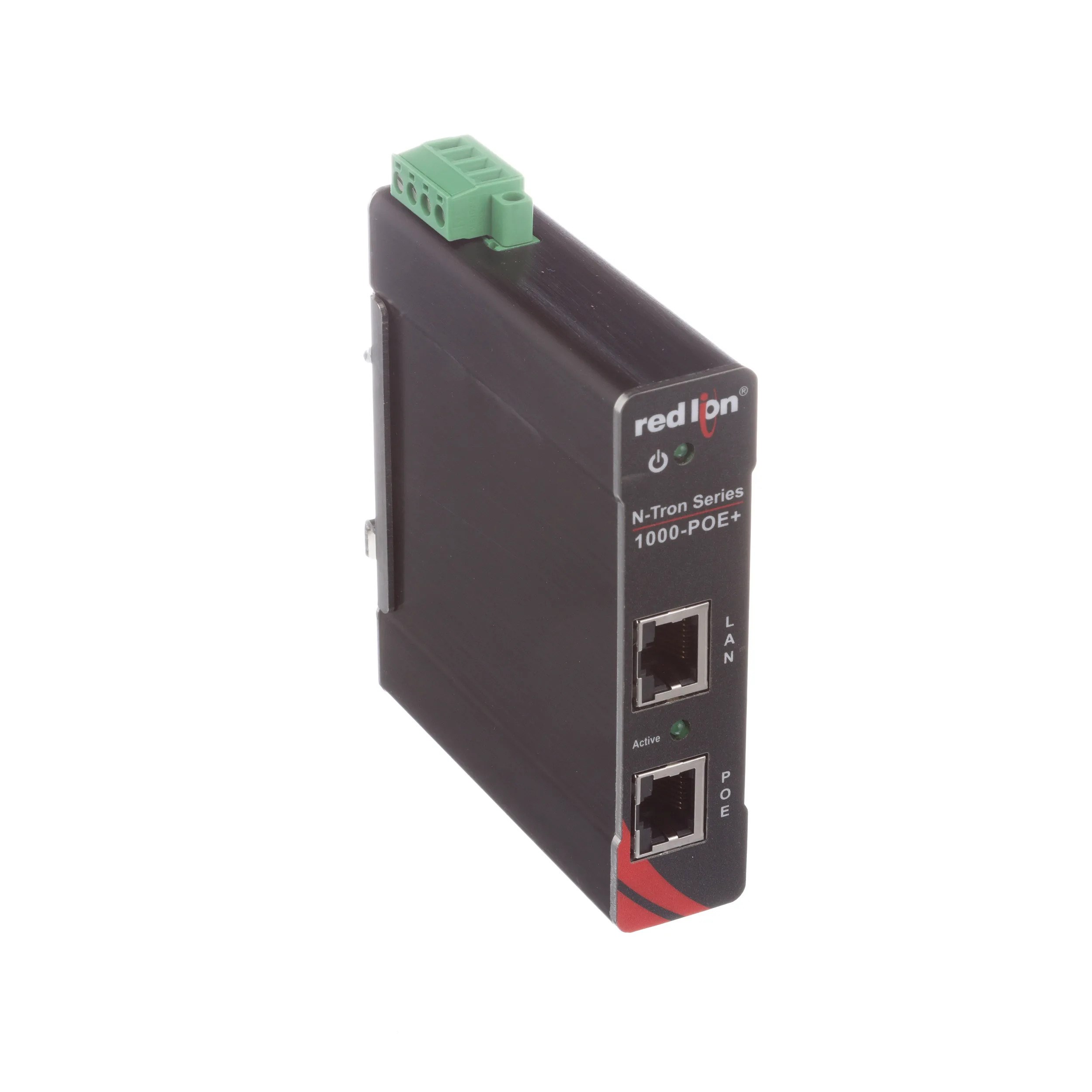

Red Lion 1000-POE+ Injector 10-30VDC DIN Rail Mount

Product Code: 1000-POE+

  • Unmanaged switch for simple networking
  • Compact DIN rail mounting design
  • Operates in -40 to 80°C environments
  • Dual 10/100/1000 Base-T RJ-45 ports
  • Complies with UL580, IEEE1613 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
POE Injector
Brand
Red Lion
Series
N-Tron

Electrical

Rated Voltage (Ur)
10V to 30V DC

Mechanical

Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
92.202mm
Height
110mm
Weight
0.27kg
Width
25.4mm

Environmental

Operating Temperature without Derating
-40°C to 80°C
Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 80°C

Safety, Standards & Compliance

Standards and Approvals
Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6

Documents

IPD Product Catalogue V17
