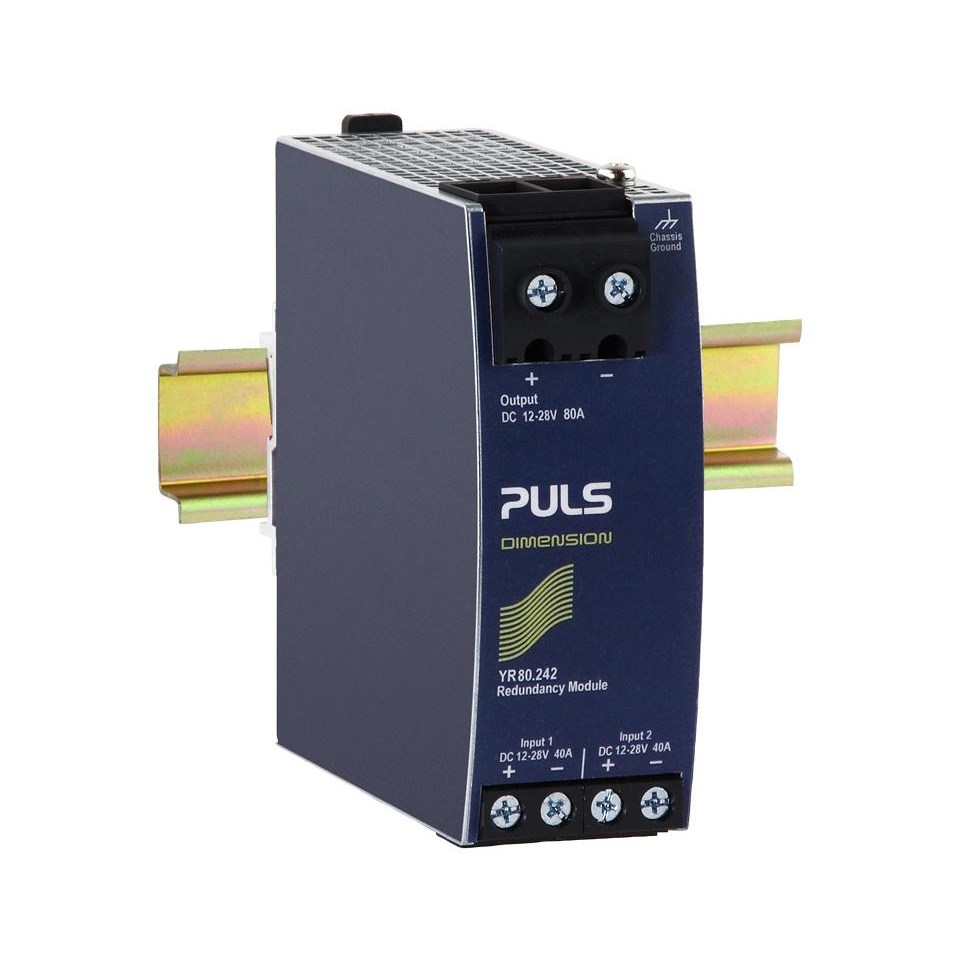

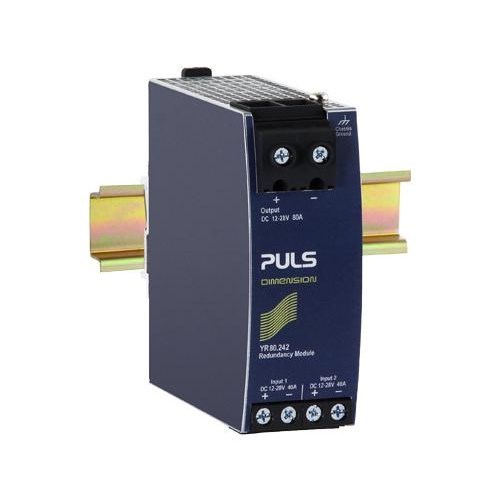

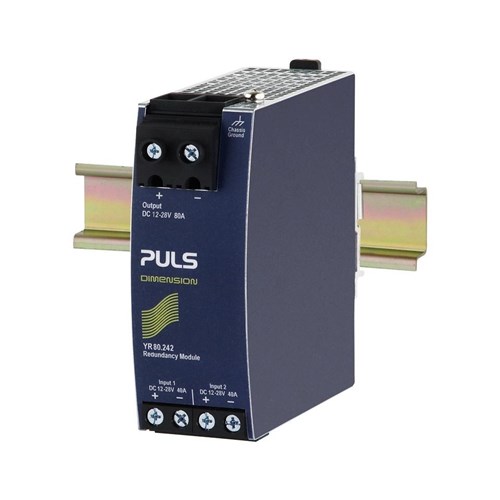

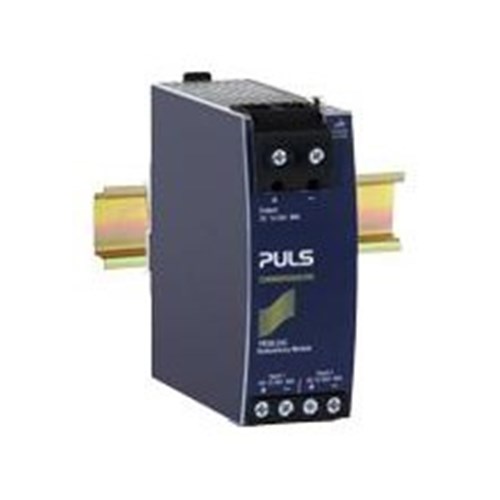

Puls YR80.242 MOSFET Redundancy Module 12VDC 24VDC 80A 2.9 Watt

Product Code: YR80.242

  • Handles up to 80 A current
  • Supports 12 VDC & 24 VDC
  • DIN Rail mounting for easy install
  • IP20 protection rating
  • Wide temp range: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Redundancy Module
Brand
PULS
Series
Y

Electrical

Input Voltage
12 - 28 V DC
Output Current
nom. 80A continuous nom. 80-130A for 5 seconds max. 44A in overload (voltage < 6V) or short circuit mode
Output Current - Range
0-80A continuous 80-130A for 5 seconds max. 44A in overload*) or short circuit mode
Input Current
2x 0-40A continuous 2x 40-65A for 5 seconds
Terminal Type
Screw Termination

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127 mm
Height
124 mm
Weight
370 g
Width
46 mm

Environmental

Approvals / Conformity
UL 508 IEC/UL 60950-1 ATEX IECEx Class 1 Div 2 IEC 60068-2-60 ISA-71.04 G3 VDMA 24364 EU Declaration of Conformity REACH Regulation (EU) WEEE Regulation CCC
Operating Temperature
-40°C to +70°C
IP Rating
IP20
