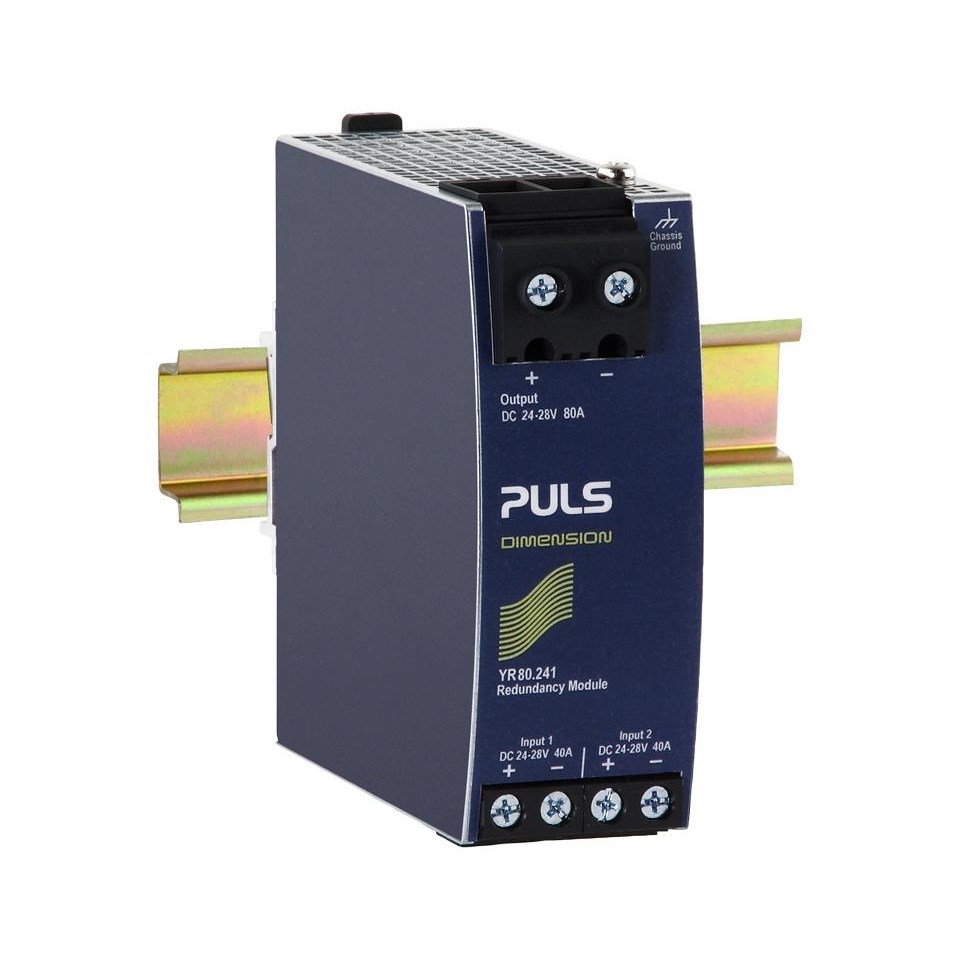

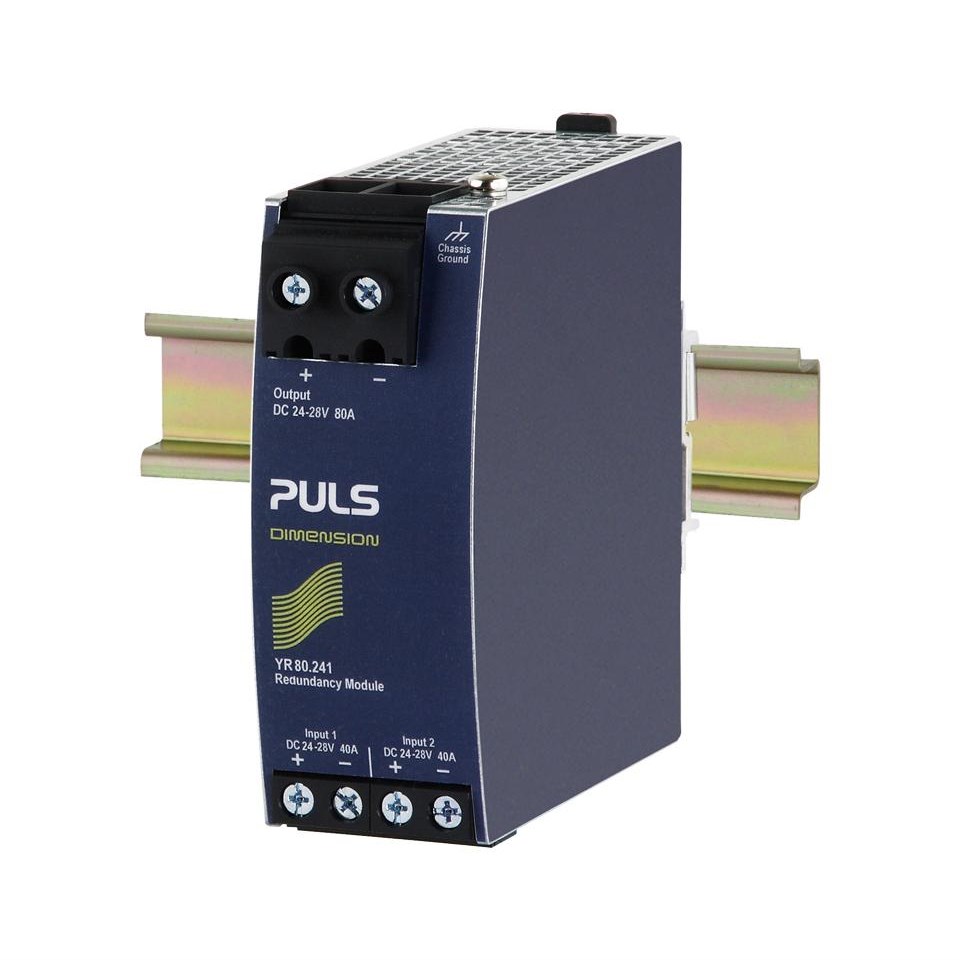

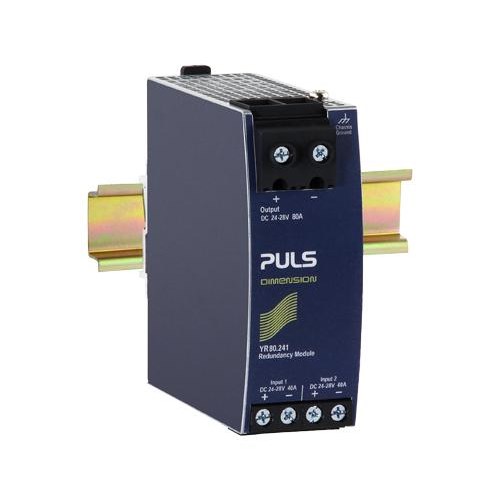

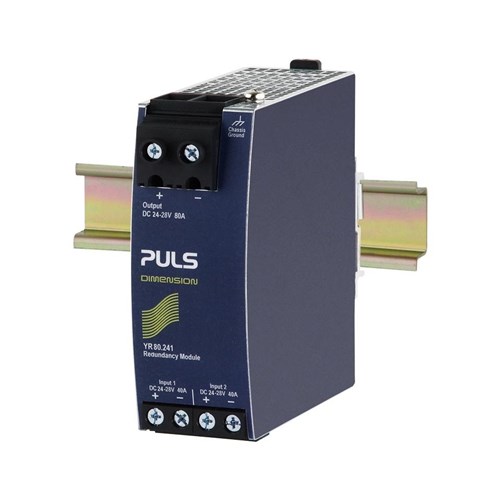

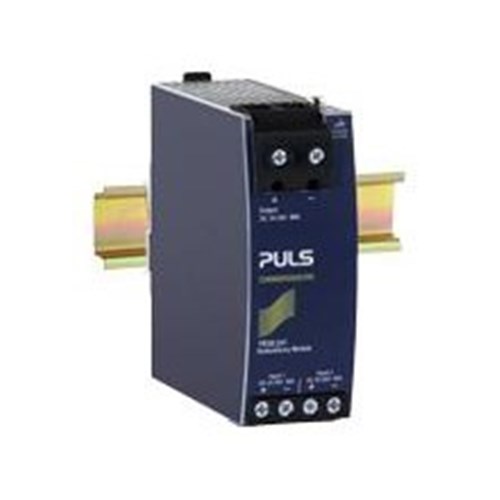

Puls YR80.241 MOSFET Redundancy Module 12VDC 24VDC 80A 2.7 Watt

Product Code: YR80.241

  • High current capacity of 80 A
  • Supports 12 VDC and 24 VDC systems
  • Compact size: 46x124x127 mm
  • Screw terminal connections for secure fit
  • IP20 protection and DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mosfet Redundancy Module
Brand
Puls
Series
Y

Electrical

Input Voltage
12V to 28V DC
Output Current - Nominal
80A
Input Current
2 × 40A

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.44kg
Width
46mm

Environmental

Approvals / Conformity
UL, ATEX, IECEx, Marine, CE
Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
