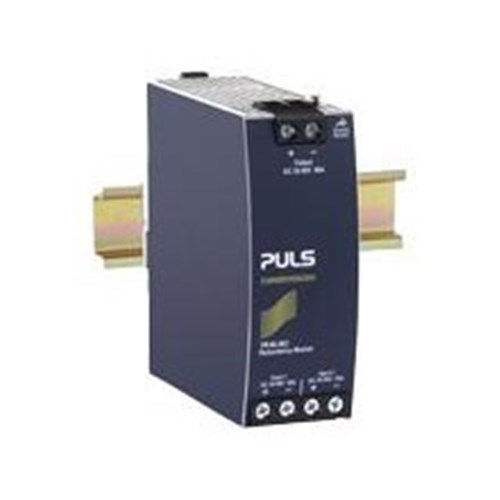

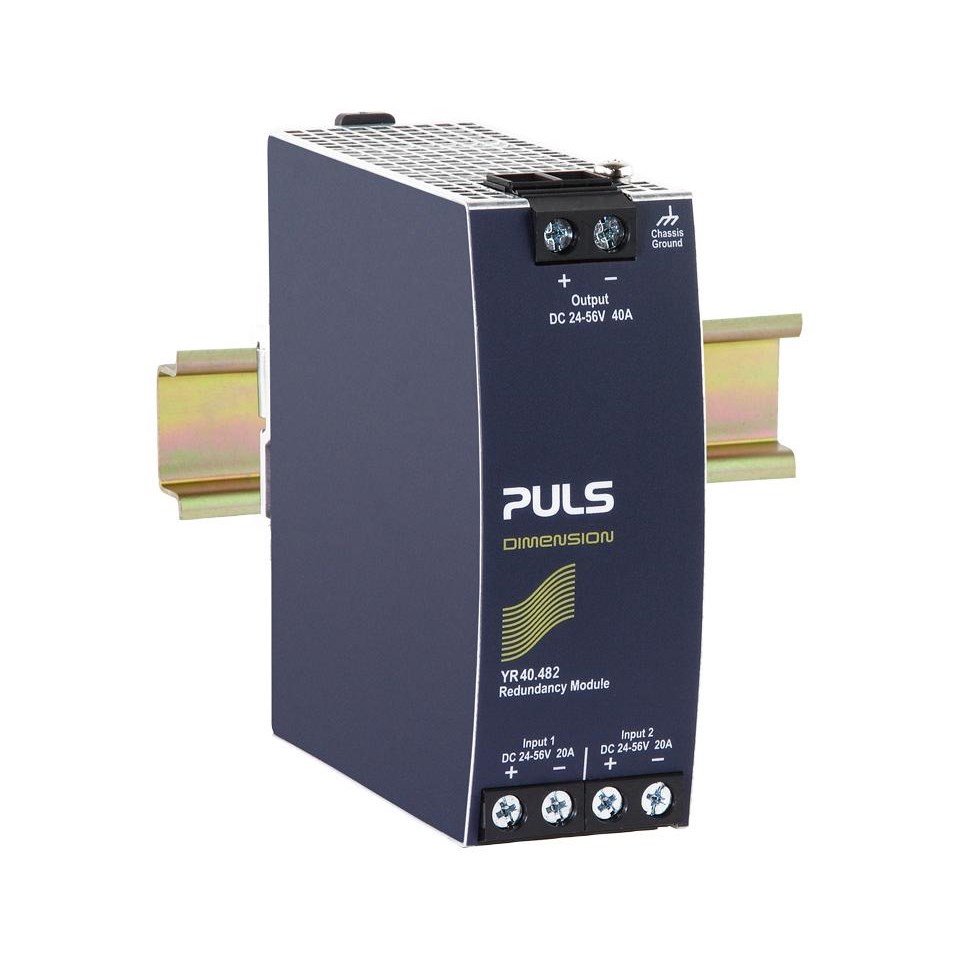

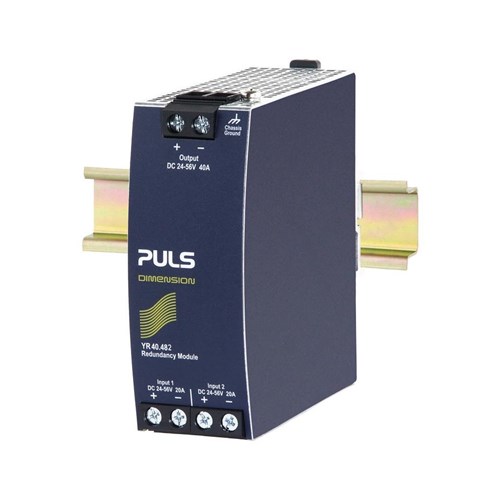

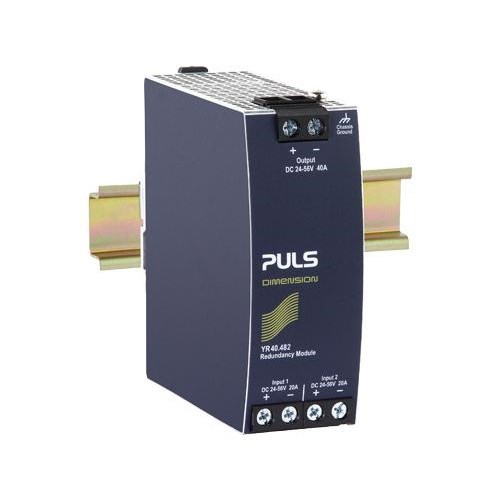

Puls YR40.482 MOSFET Redundancy Module 24VDC 48VDC 56VDC 40A 1.8 Watt

Product Code: YR40.482

  • Rated for 40A current, ideal for heavy-duty use
  • Supports voltage range: 24VDC to 56VDC
  • Compact design with DIN rail mounting
  • Meets multiple international safety standards
  • Operates in temperatures from -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mosfet Redundancy Module
Brand
Puls
Series
Y

Electrical

Input Voltage
24V to 56V DC
Output Current - Nominal
40A
Input Current
2 × 20A

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.36kg
Width
46mm

Environmental

Approvals / Conformity
UL, ATEX, IECEx, Marine, CE
Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
