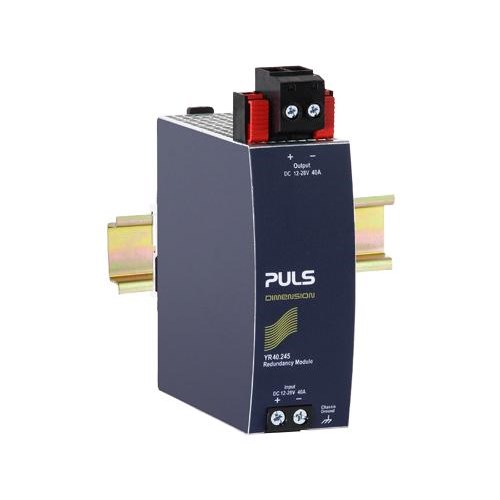

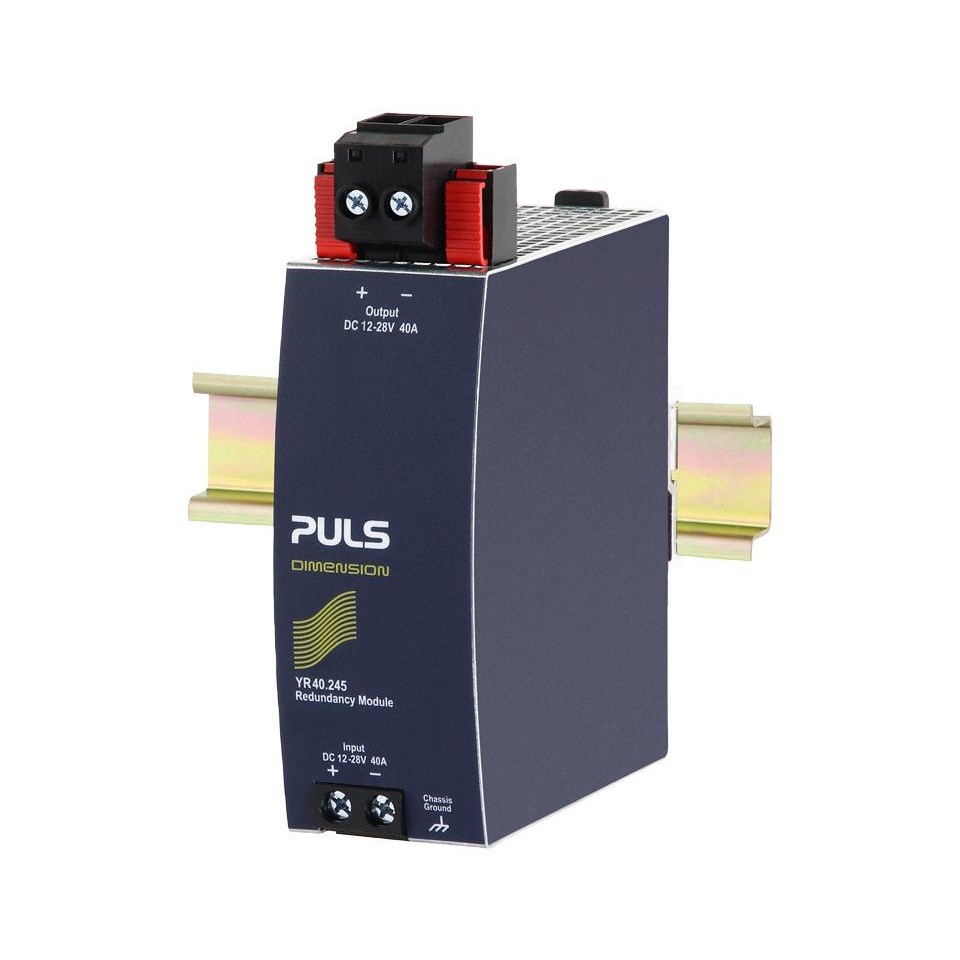

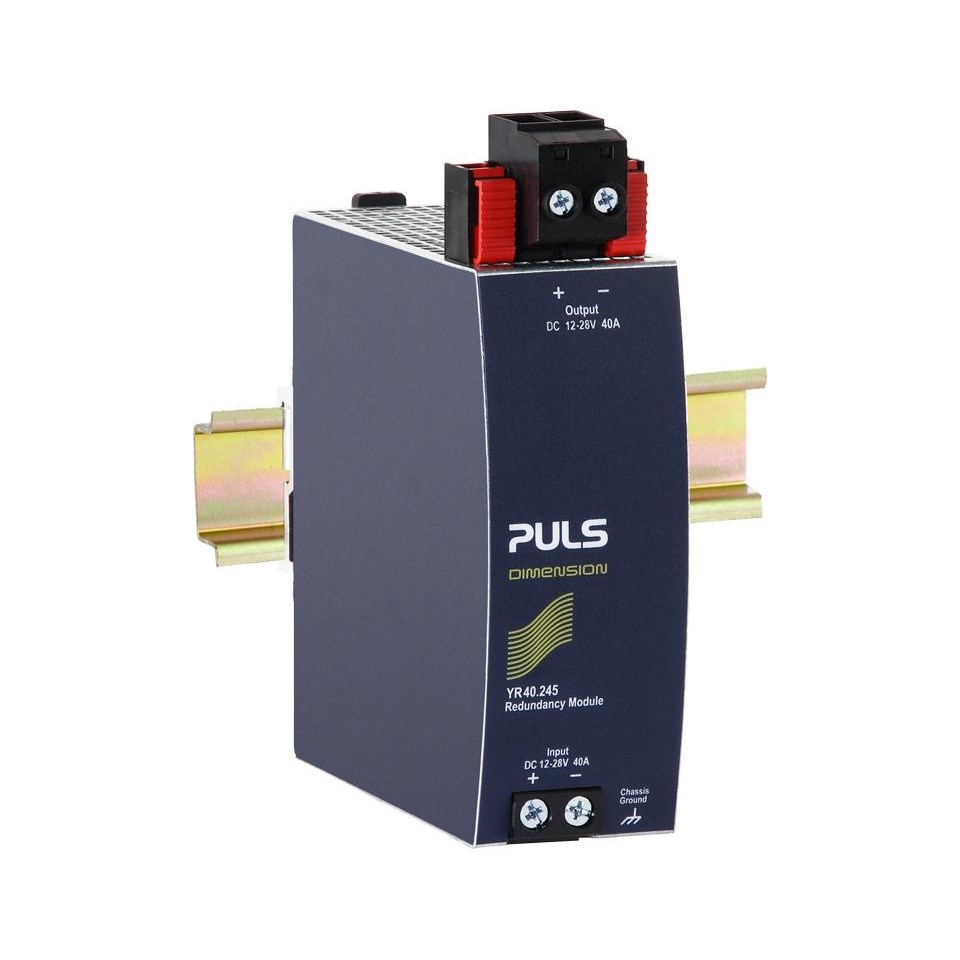

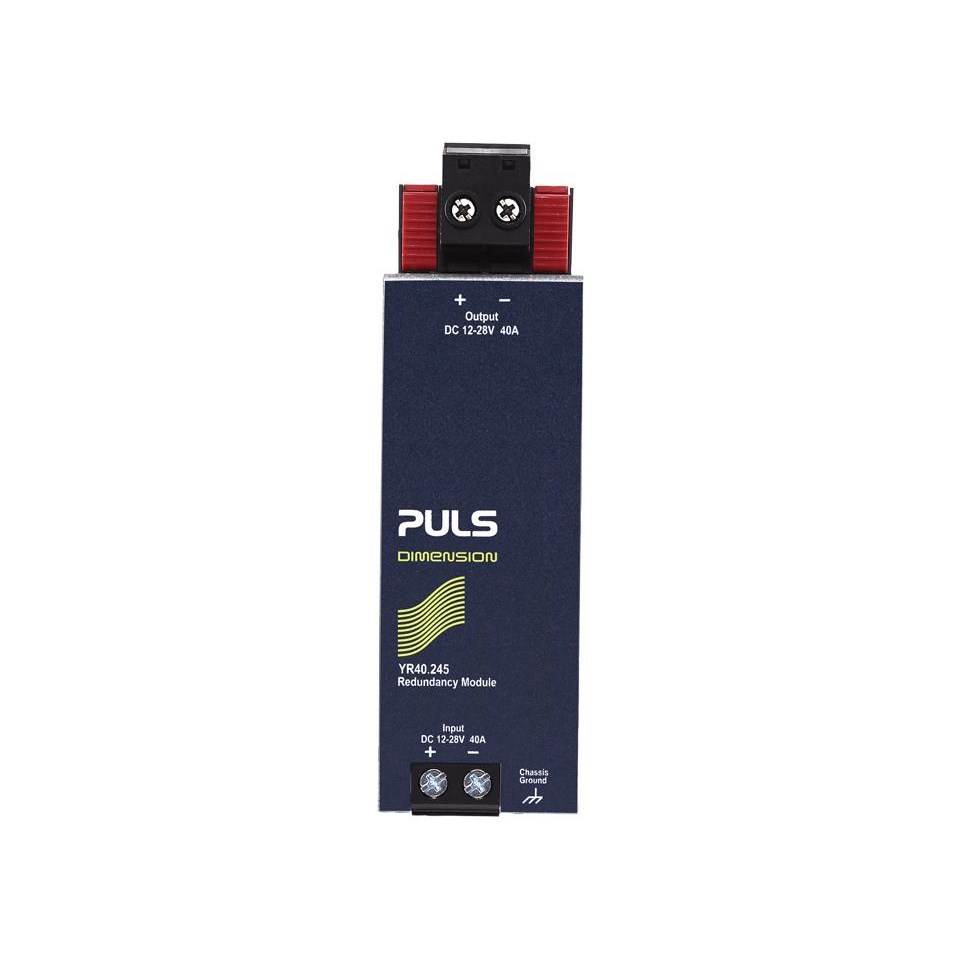

Puls YR40.245 MOSFET Redundancy Module 12VDC 24VDC 40A 6.2 Watt

Product Code: YR40.245

  • Rated current of 40 A for high performance
  • Compact size: 46x124x127 mm
  • IP20 protection with screw terminals
  • Operates in -40 to 70°C environments
  • DIN rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Redundancy Module
Brand
PULS
Series
Y

Electrical

Input Voltage
12 - 28 V DC
Output Current
nom. 40A continuous nom. 40-65A for 5 seconds max. 22A in overload (voltage < 6V) or short circuit mode
Output Current - Range
0-40A continuous 40-65A for 5 seconds max. 22A in overload*) or short circuit mode
Input Current
0-40A continuous 40-65A for 5 seconds
Terminal Type
Input: Screw Termination Output: Pluggable Screw Termination

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127 mm
Height
124 mm
Weight
340 g
Width
46 mm

Environmental

Approvals / Conformity
UL 508 IEC/UL 60950-1 ATEX IECEx Class 1 Div 2 IEC 60068-2-60 ISA-71.04 G3 VDMA 24364 EU Declaration of Conformity REACH Regulation (EU) WEEE Regulation CCC
Operating Temperature
-40°C to +70°C
IP Rating
IP20
