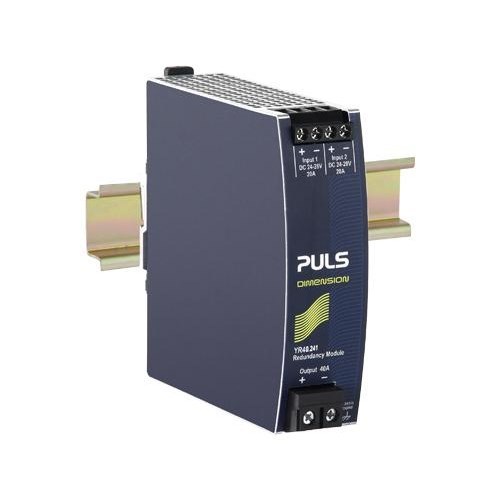

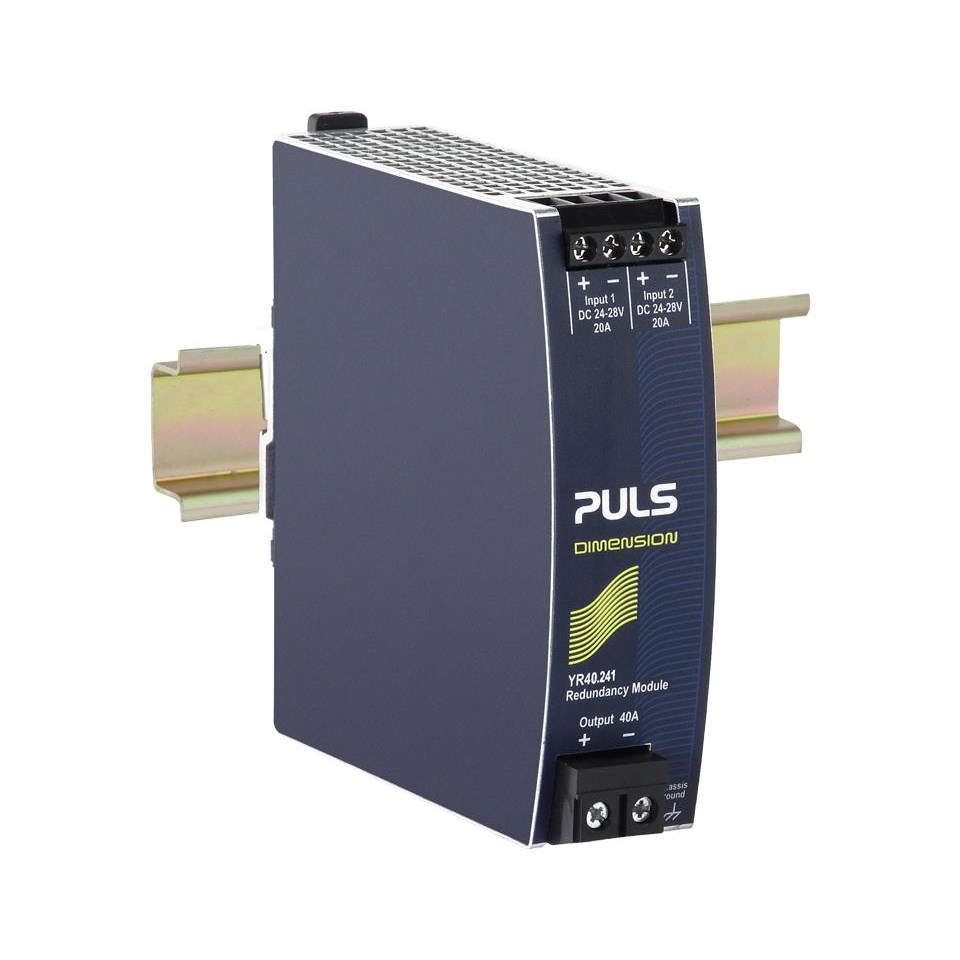

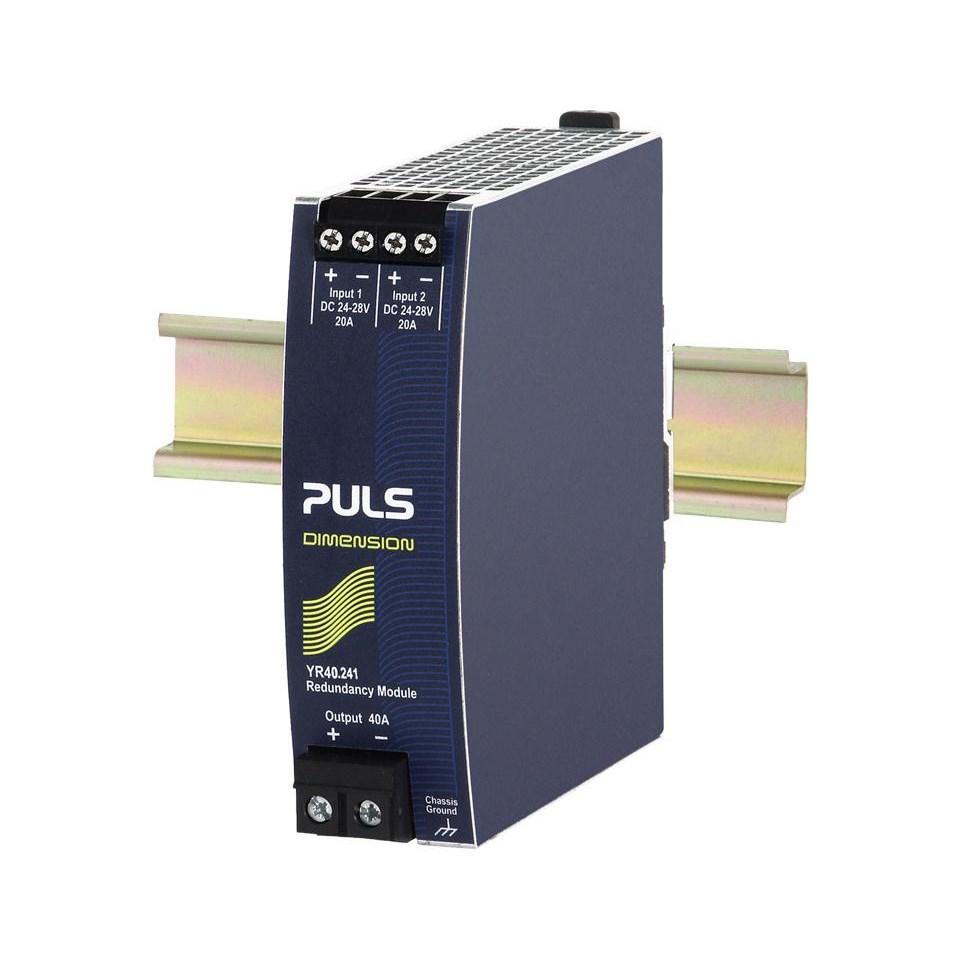

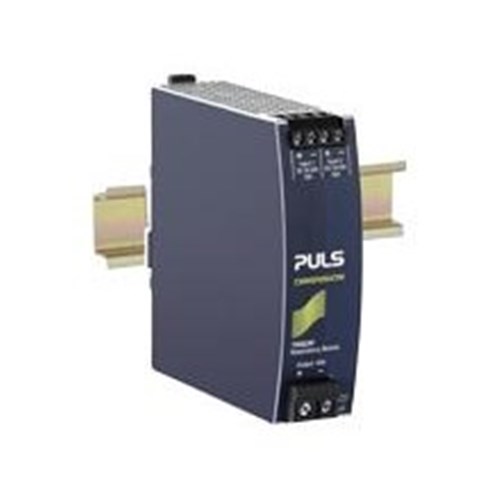

Puls YR40.241 MOSFET Redundancy Module 12VDC 24VDC 40A 2.2 Watt

Product Code: YR40.241

  • High 40A rated current for robust performance
  • Supports 12VDC and 24VDC voltage levels
  • Reliable DIN rail mounting system
  • IP20 protection against solid objects
  • Operates in extreme temps: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mosfet Redundancy Module
Brand
Puls
Series
Y

Electrical

Input Voltage
12V to 28V DC
Output Current - Nominal
40A
Input Current
2 × 20A

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.34kg
Width
36mm

Environmental

Approvals / Conformity
UL, ATEX, IECEx, Marine, CE
Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
