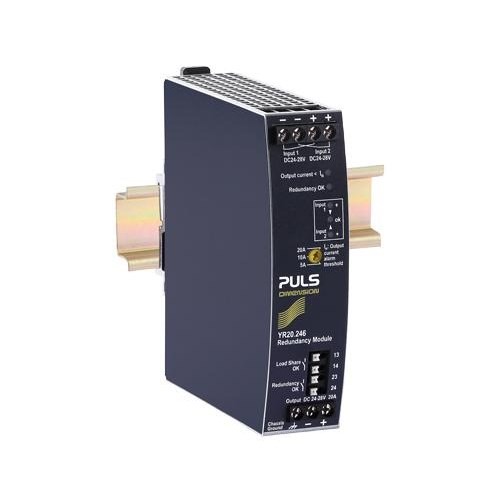

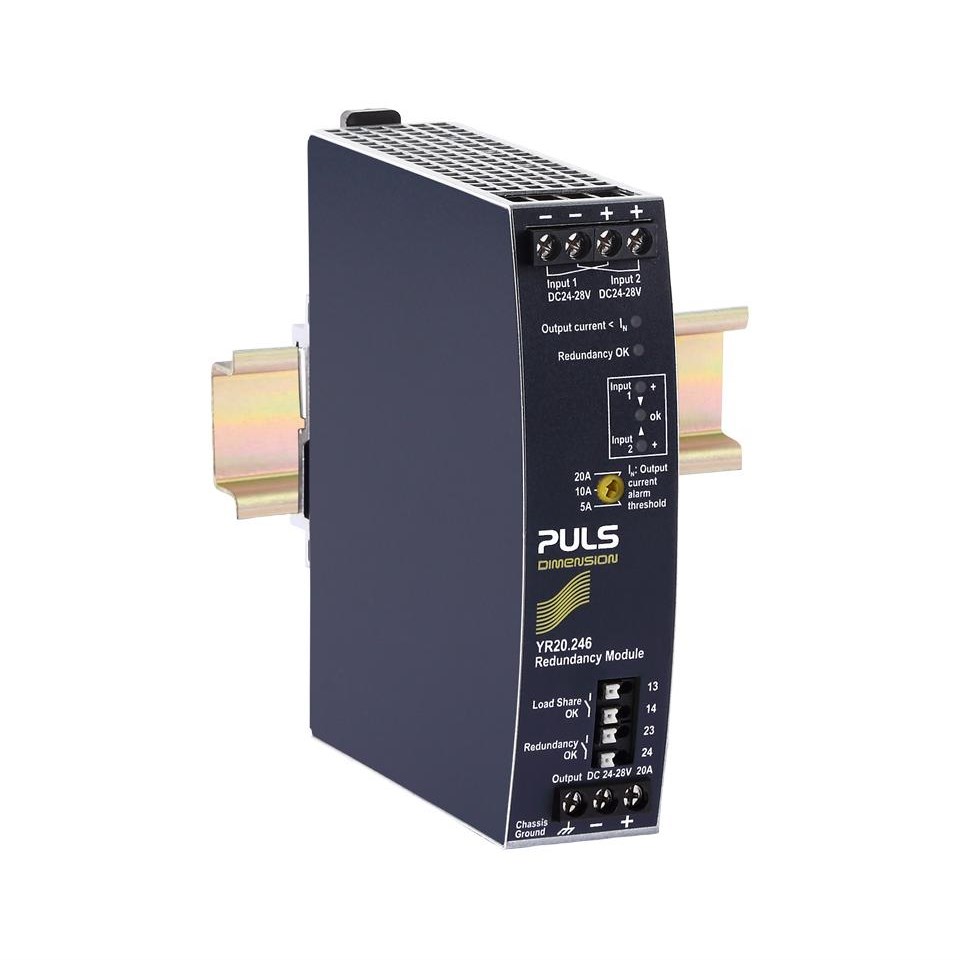

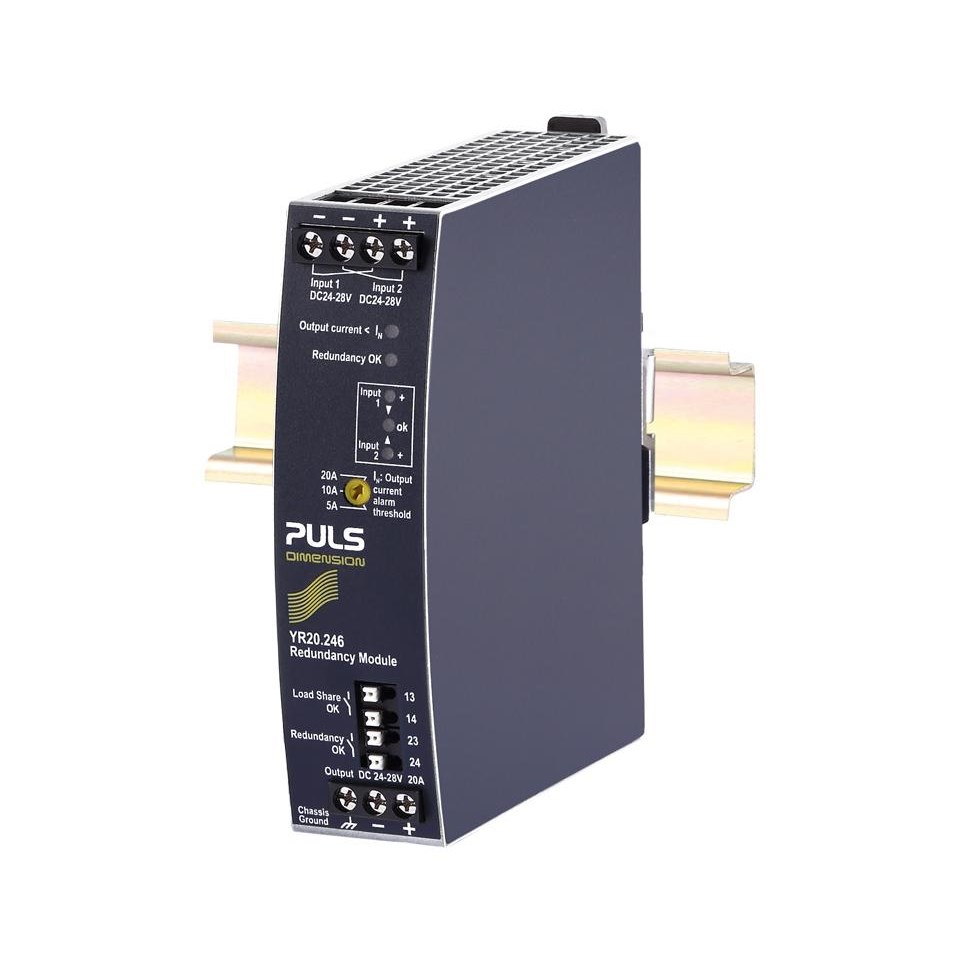

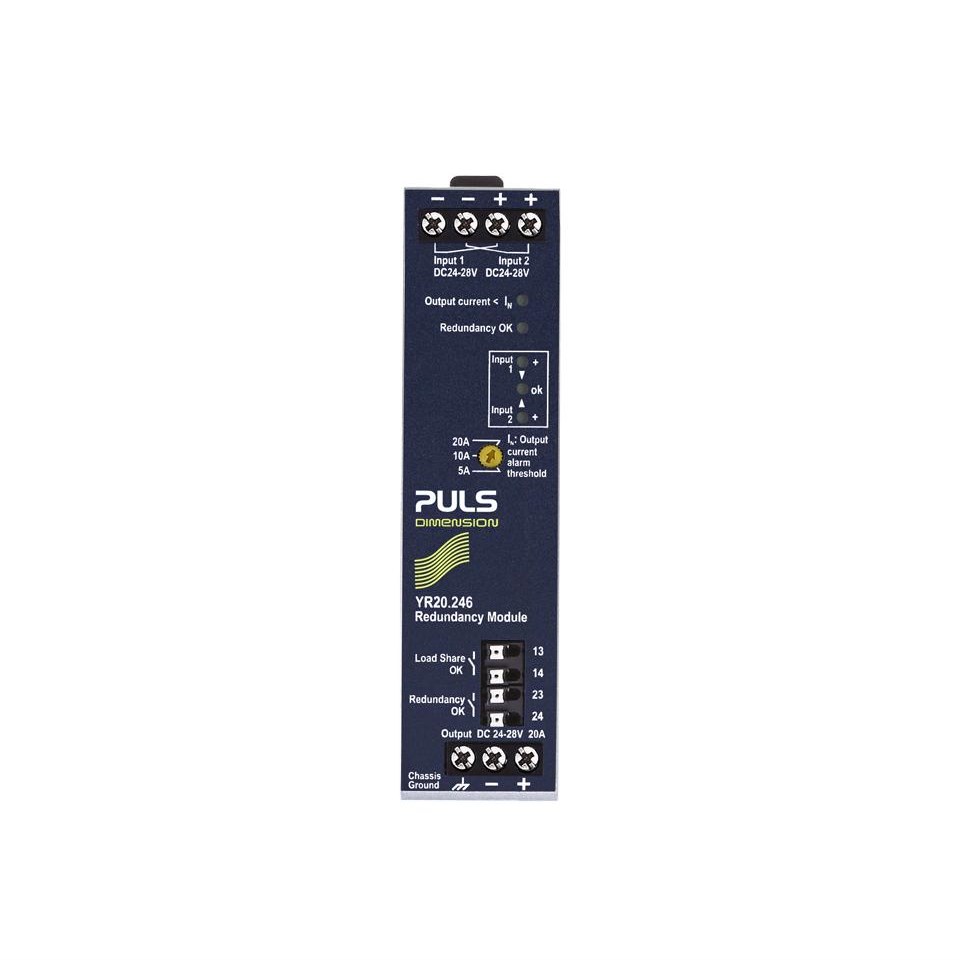

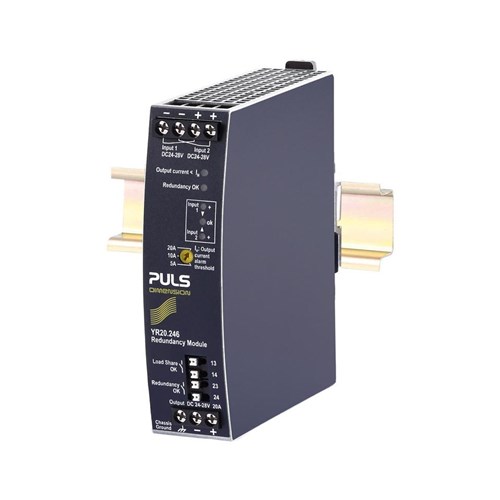

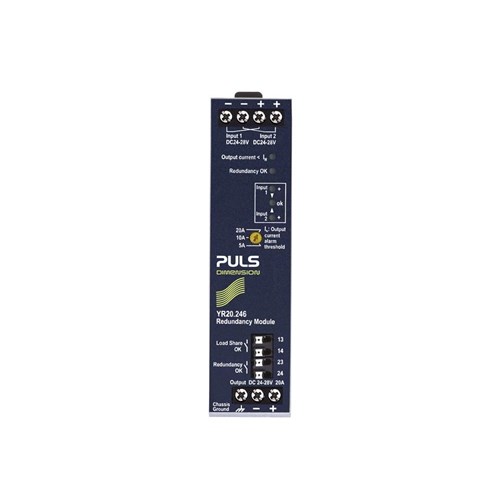

Puls YR20.246 MOSFET Redundancy Module 24VDC 20A 2.6 Watt

Redundancy Module

PULS

Y

24 - 28 V DC

nom. 24A continuous, ambient temperature < +45°C nom. 20A continuous, ambient temperature < +70°C nom. 32.5A for max. 5 seconds max. 26A in overload /short-circuit (voltage < 6V). Ensure that the sum of input currents does not exceed this value.

0-24A ambient <+45°C 0-20A ambient <+70°C max. 26A in overload*) or short circuit mode

2x 0-12A ambient <+45°C 2x 0-10A ambient <+70°C

IO: Screw Termination Singals: Push-in terminals

Body: Aluminium alloy Cover: Zinc-plated steel

117 mm

124 mm

310 g

32 mm

UL 508 IEC/UL 60950-1 ATEX IECEx Class 1 Div 2 IEC 60068-2-60 ISA-71.04 G3 VDMA 24364 EU Declaration of Conformity REACH Regulation (EU) WEEE Regulation CCC

-40°C to +70°C

IP20
