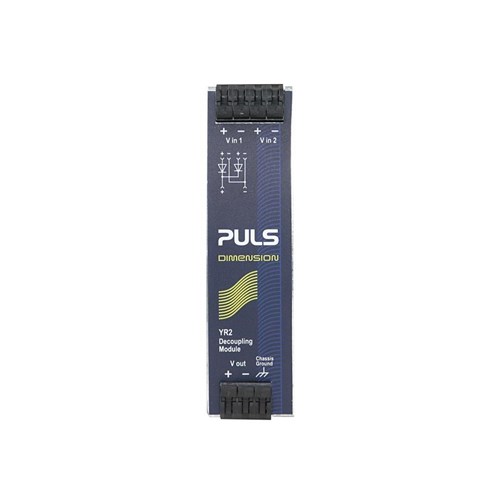

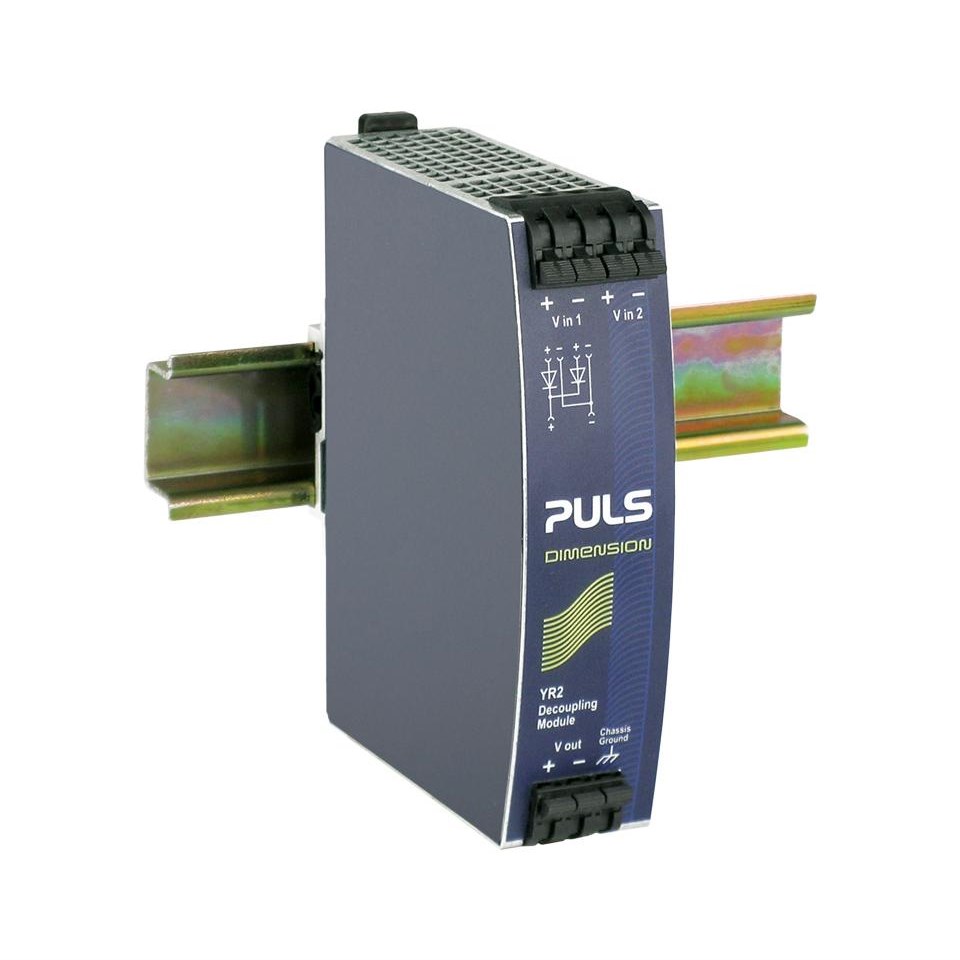

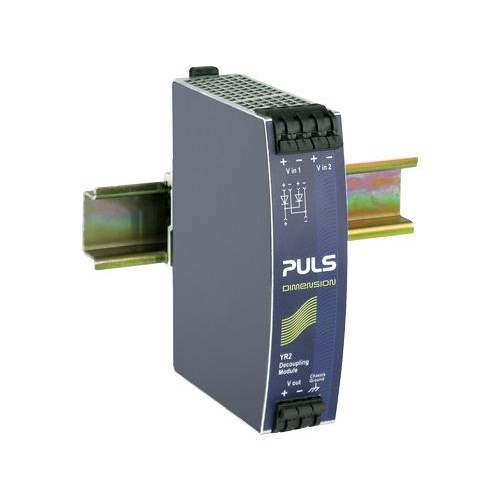

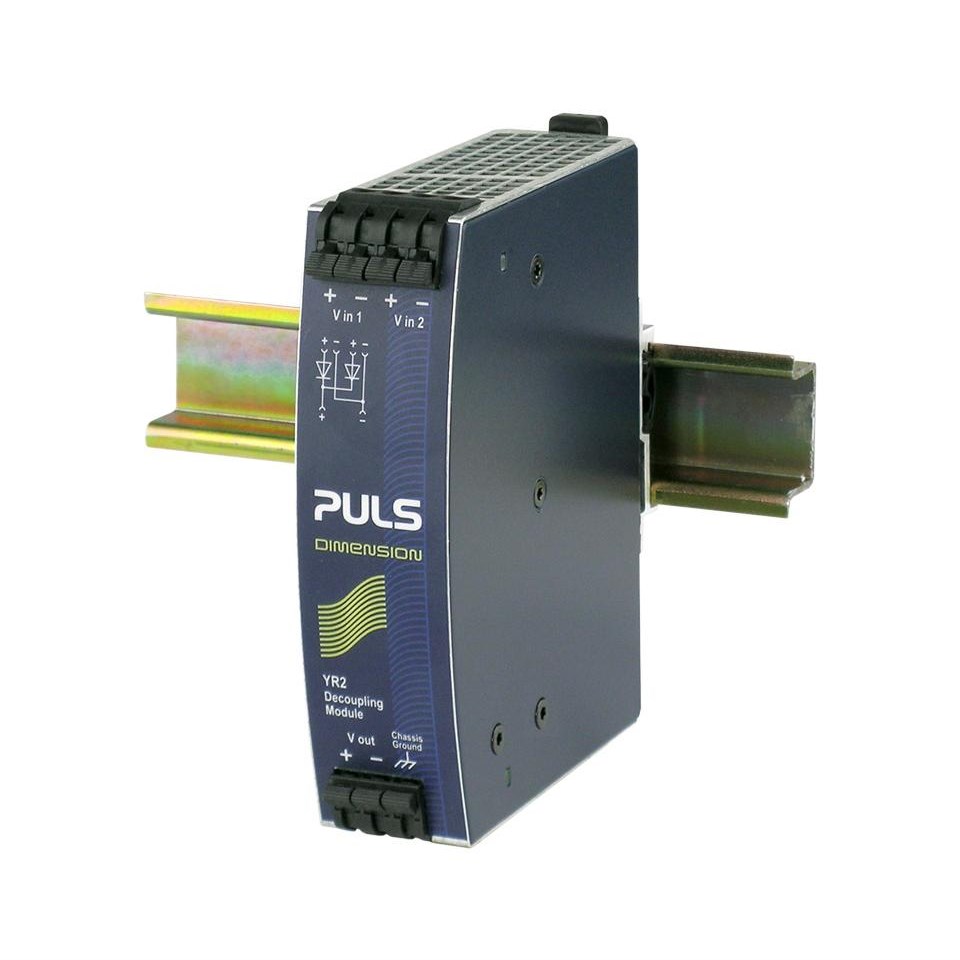

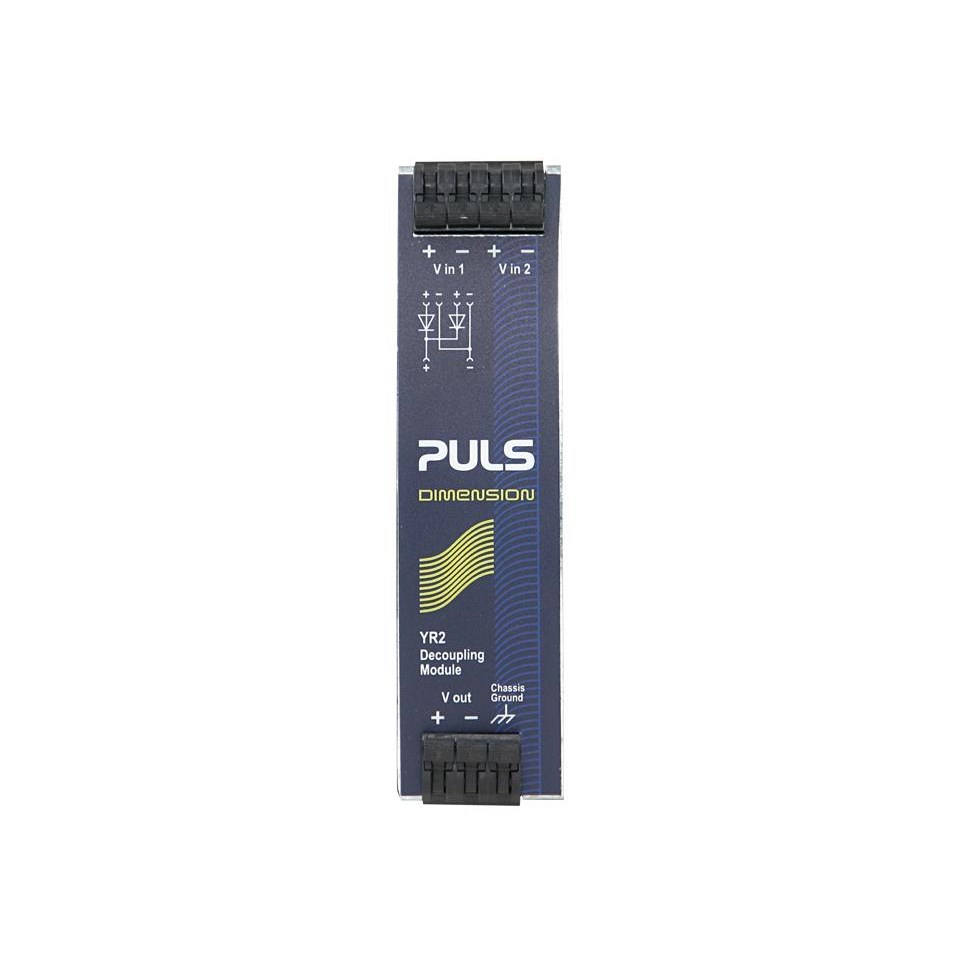

Puls YR2.DIODE Diode Redundancy Module 12VDC 24VDC 48VDC 20A 17 Watt

Product Code: YR2.DIODE

  • Supports 12, 24, and 48 VDC applications
  • Rated for up to 20 A current handling
  • Compact size: 32x124x102 mm, weighs 290 g
  • Spring clamp connections ensure secure wiring
  • Mounts easily on DIN Rail with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Diode Redundancy Module
Brand
Puls
Series
Y

Electrical

Input Voltage
DC 12-48V
Output Current
20A
Output Current - Range
20A to 32A
Short Circuit Output Current
0.025kA
Input Current
nom. 2x 0-10A continuous nom. 1x 0-20A continuous nom. 2x 10-16A for 5 seconds
Terminal Type
Quick-connect spring clamp

Mechanical

Mounting
DIN Rail

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.29kg
Width
32mm

Environmental

Approvals / Conformity
UL 508, IEC 60950-1, Class I Div 2, ATEX, IECEx, Marine (DNV GL), Marine (ABS), IEC 60068-2-60, ISA-71.04 G3, VDMA 24364, CE, REACH, WEEE, EAC TR
Operating Temperature
-40°C to 70°C
IP Rating
IP20
