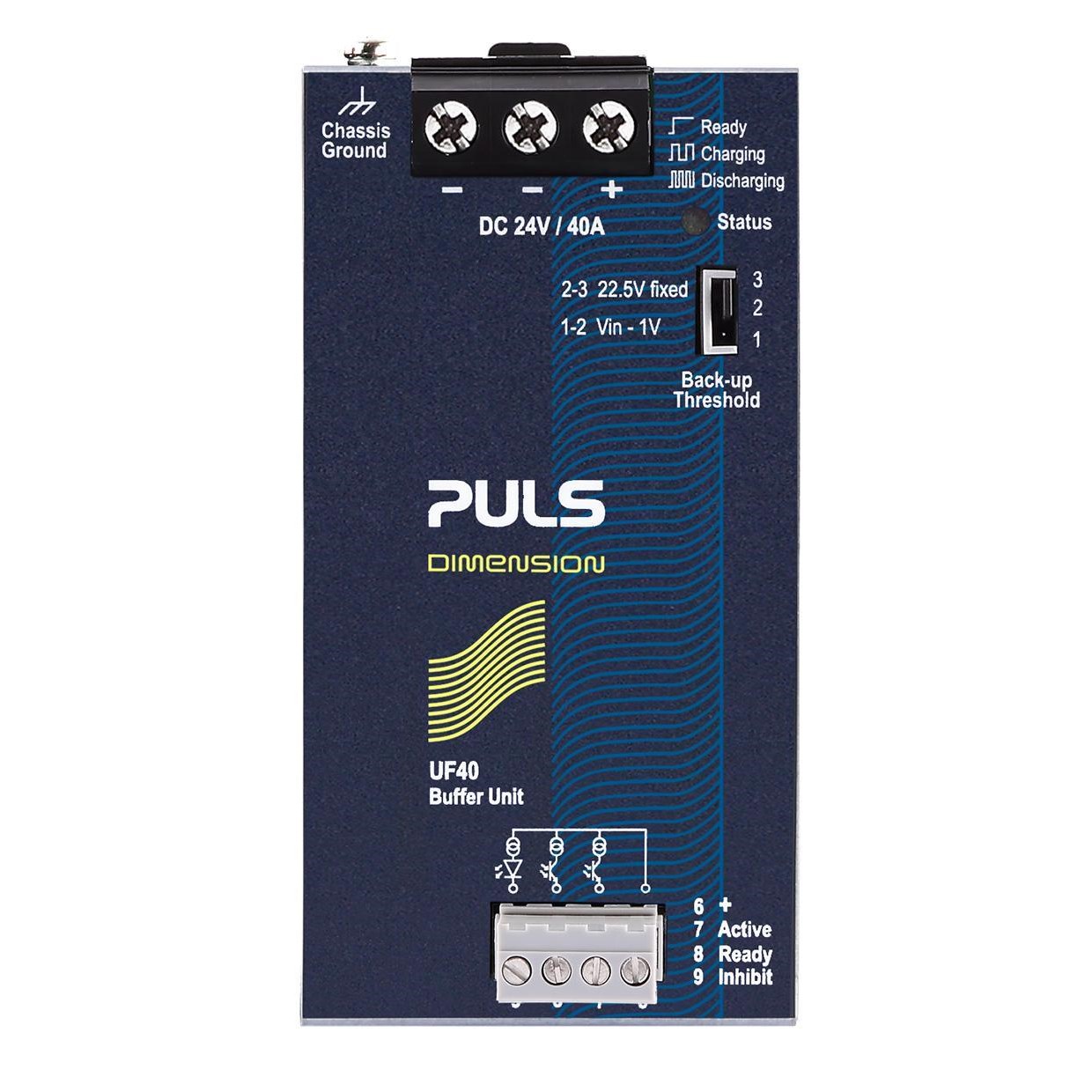

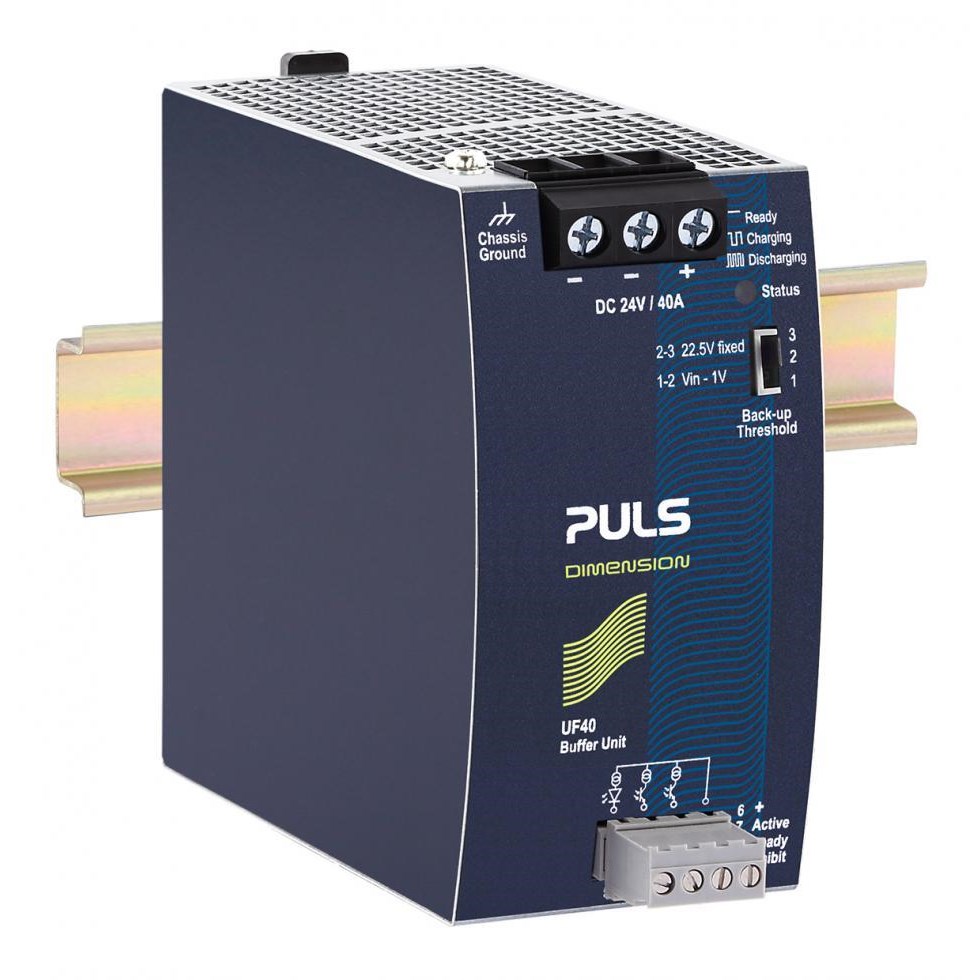

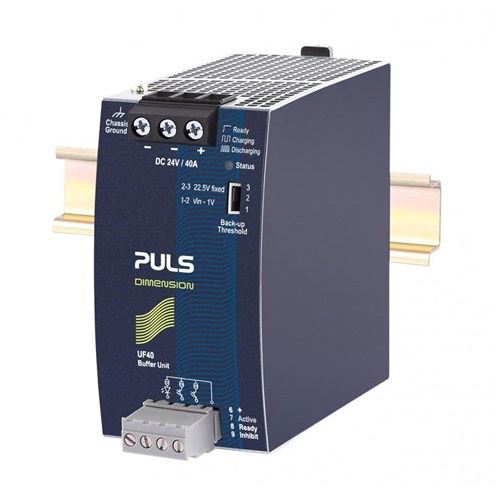

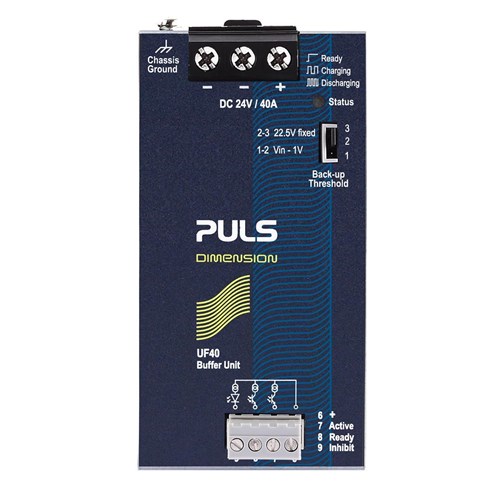

Puls UF40.241 Electrolytic Capacitor Buffer Module U 24VDC 40A

Product Code: UF40.241

  • 24 VDC, 40 A buffer module
  • Screw connection for secure setup
  • IP20 protection rating
  • Mounts easily on DIN rail
  • Operates from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Capacitor Buffer Module
Brand
PULS
Series
UF

Electrical

Output Current
40 A
Output Voltage - Nominal
22.5 VDC
Buffering Storage Element
Capacitor
Terminal Type
Supply voltage: screw terminals Signals: Pluggable screw terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
142 mm
Height
124 mm
Weight
1040 g
Width
64 mm

Environmental

Approvals / Conformity
IEC 61010-2-201 UL 61010-2-201 IEC 60950-1 UL 60950-1 IEC 60068-2-60 ISA-71.04 G3 VDMA 24364
Operating Temperature
-25°C to +70°C
IP Rating
IP 20
