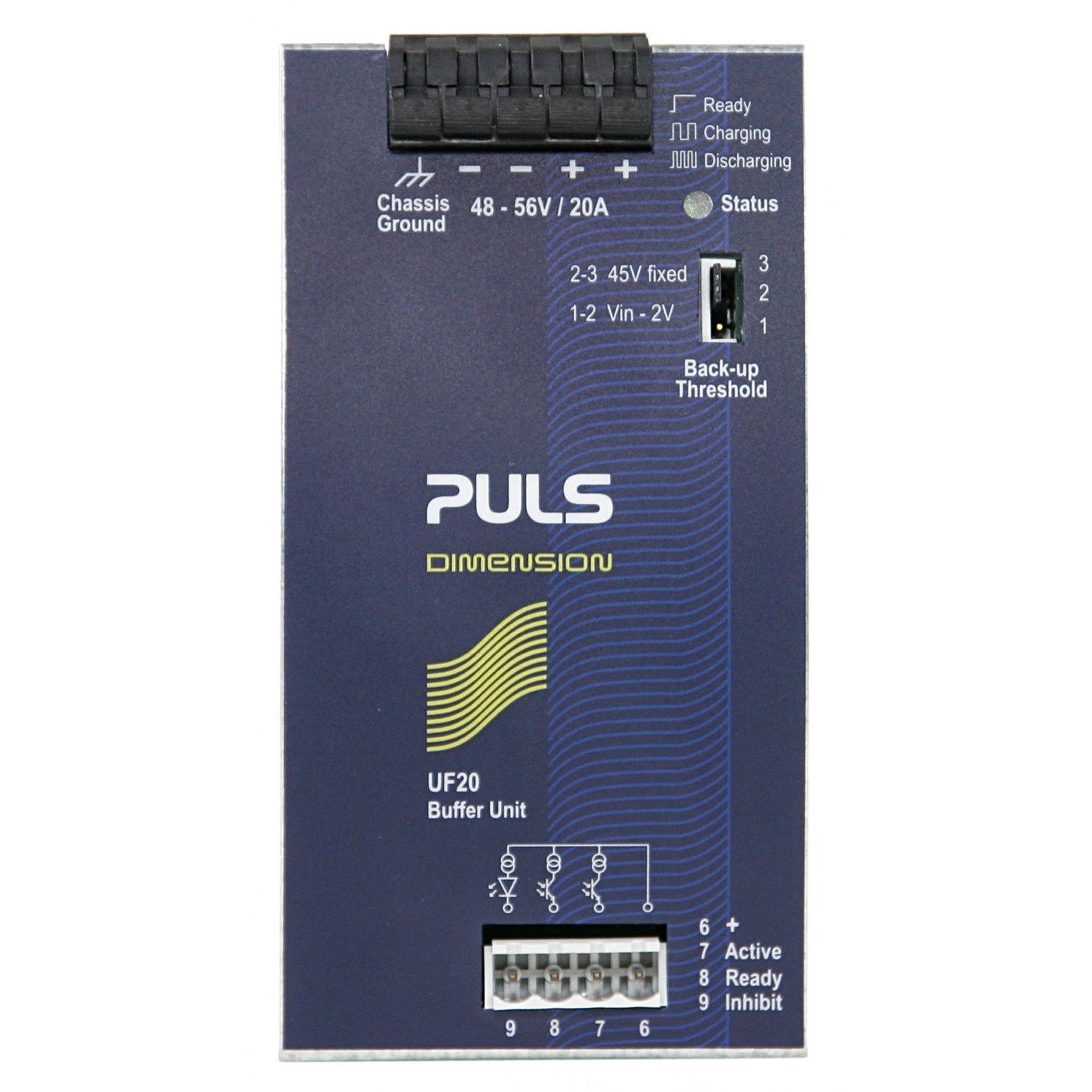

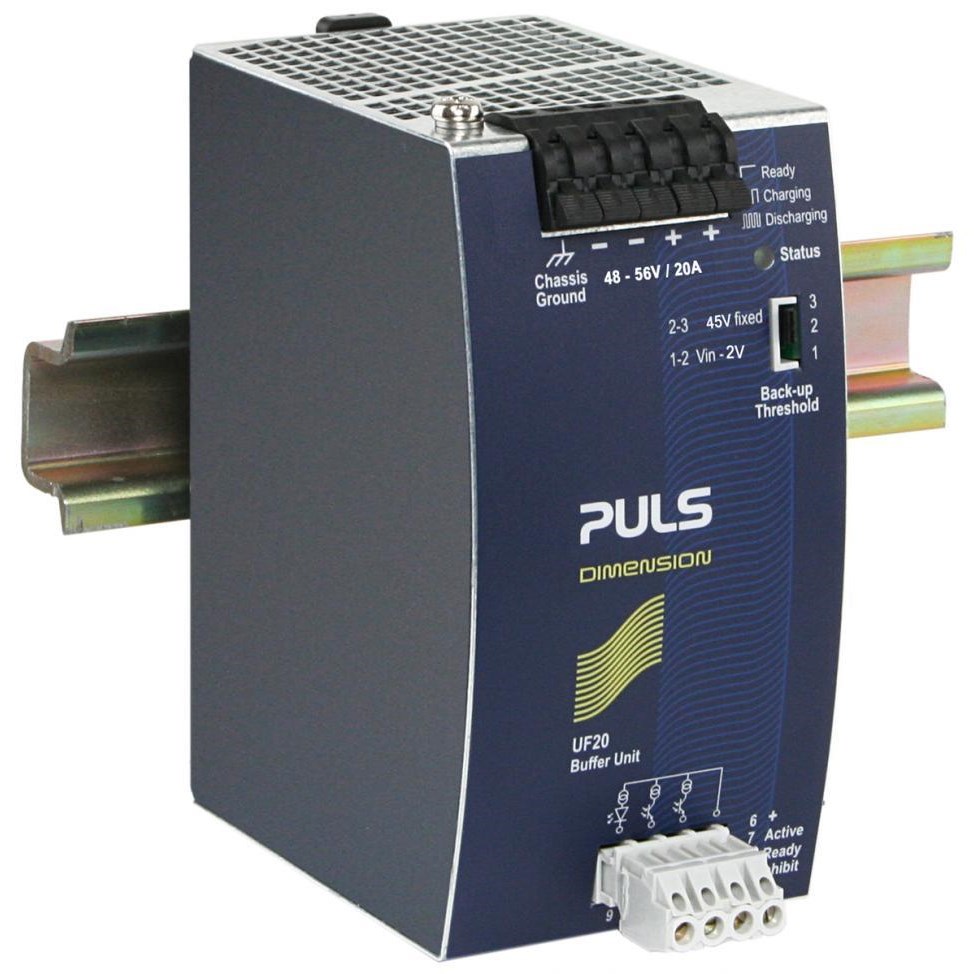

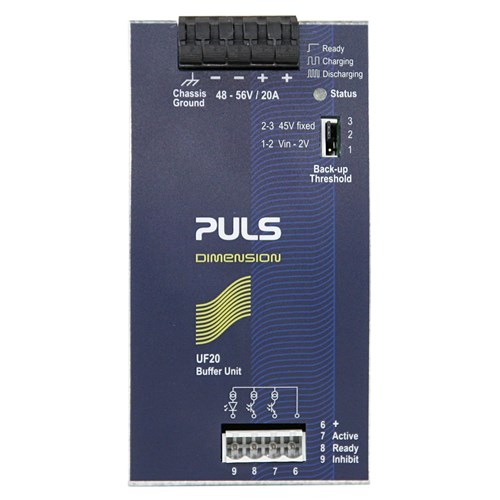

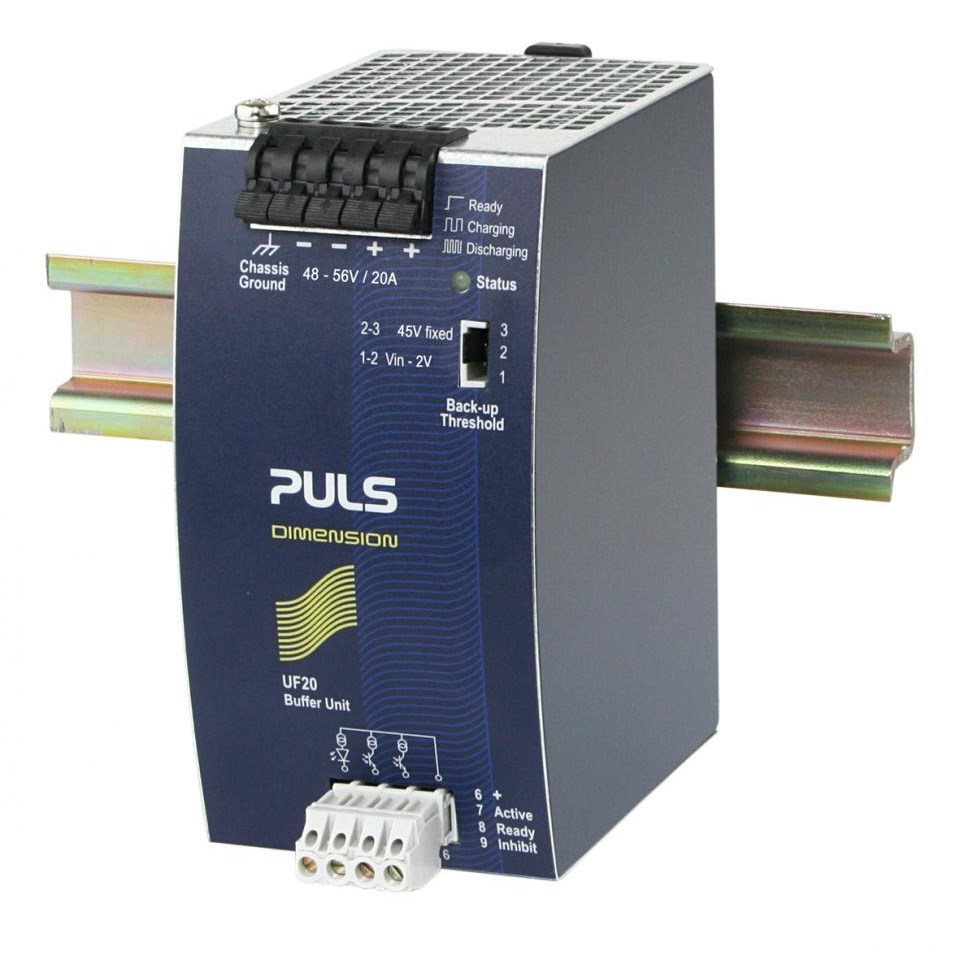

Puls UF20.481 Electrolytic Capacitor Buffer Module U 48VDC 20A

Product Code: UF20.481

  • Rated for 48 VDC, 20 A power supply
  • Spring clamp connections for secure wiring
  • Compact design: 64x124x102 mm
  • Operates in -25 to 70°C temperature range
  • DIN rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Capacitor Buffer Module
Brand
PULS
Series
UF

Electrical

Output Current
20 A
Output Voltage - Nominal
45 VDC
Buffering Storage Element
Capacitor
Terminal Type
Supply voltage, chassis ground: Quick-connect spring-clamp terminals Signals: Pluggable screw terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
102 mm
Height
124 mm
Weight
740 g
Width
64 mm

Environmental

Approvals / Conformity
EU/ IEC 60950-1 2nd Edition/ UL 60950-1 2nd Edition/ UL 508
Operating Temperature
-25°C to +70°C
IP Rating
IP 20
