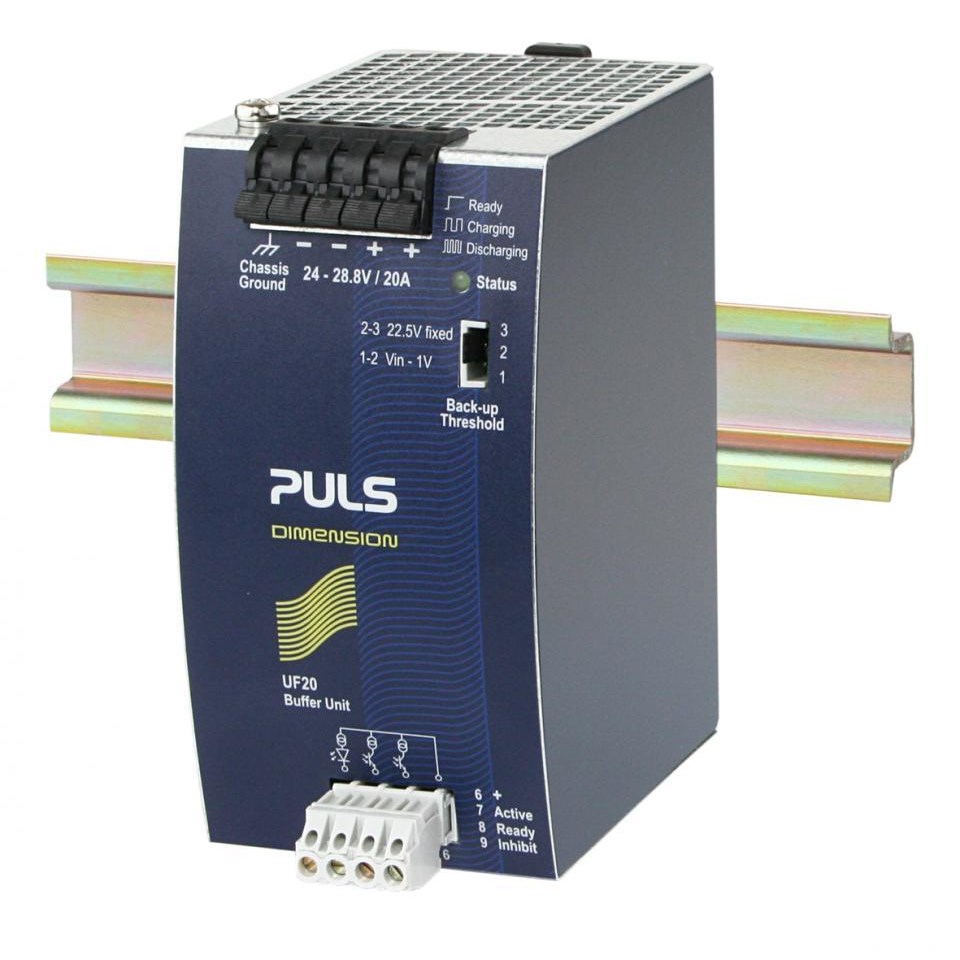

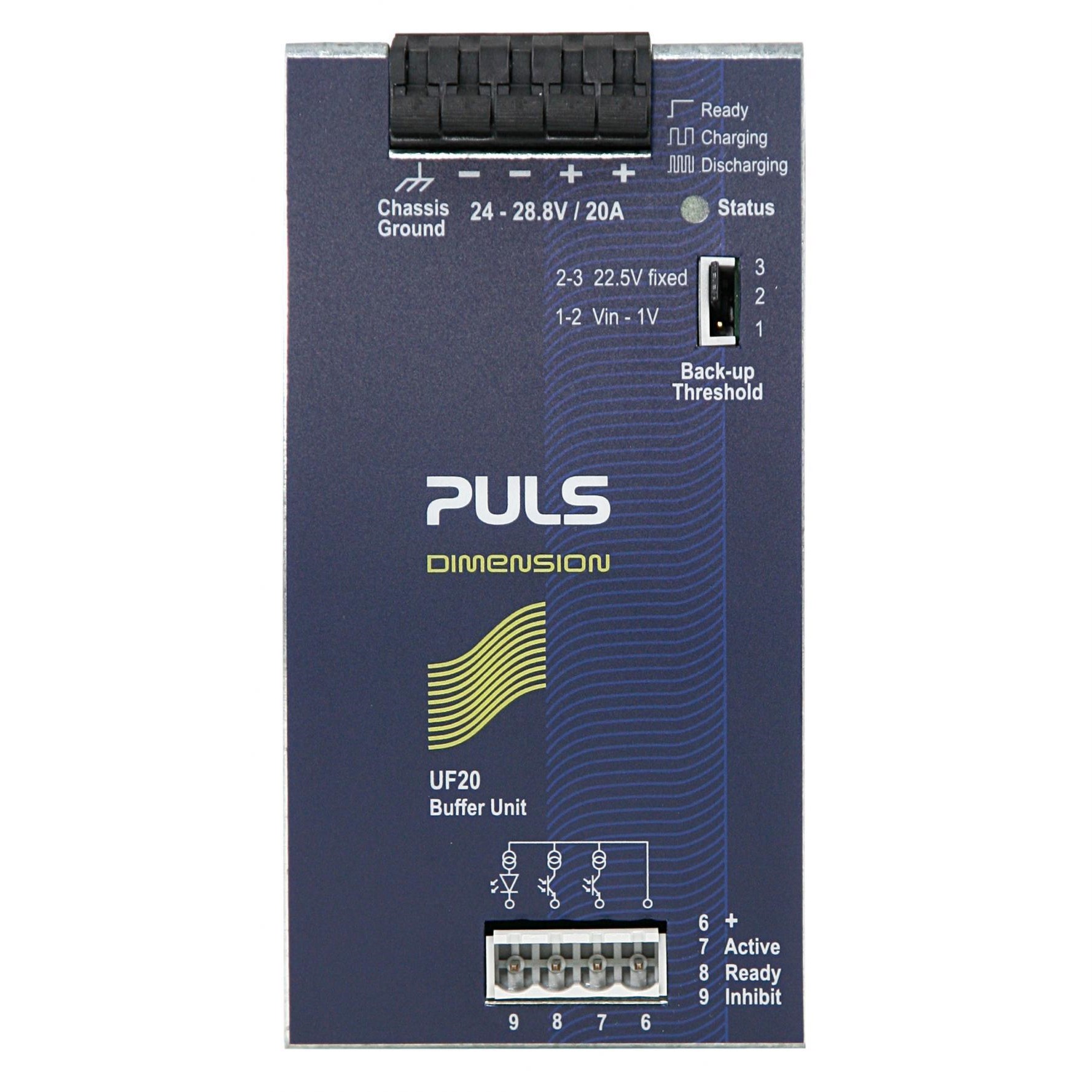

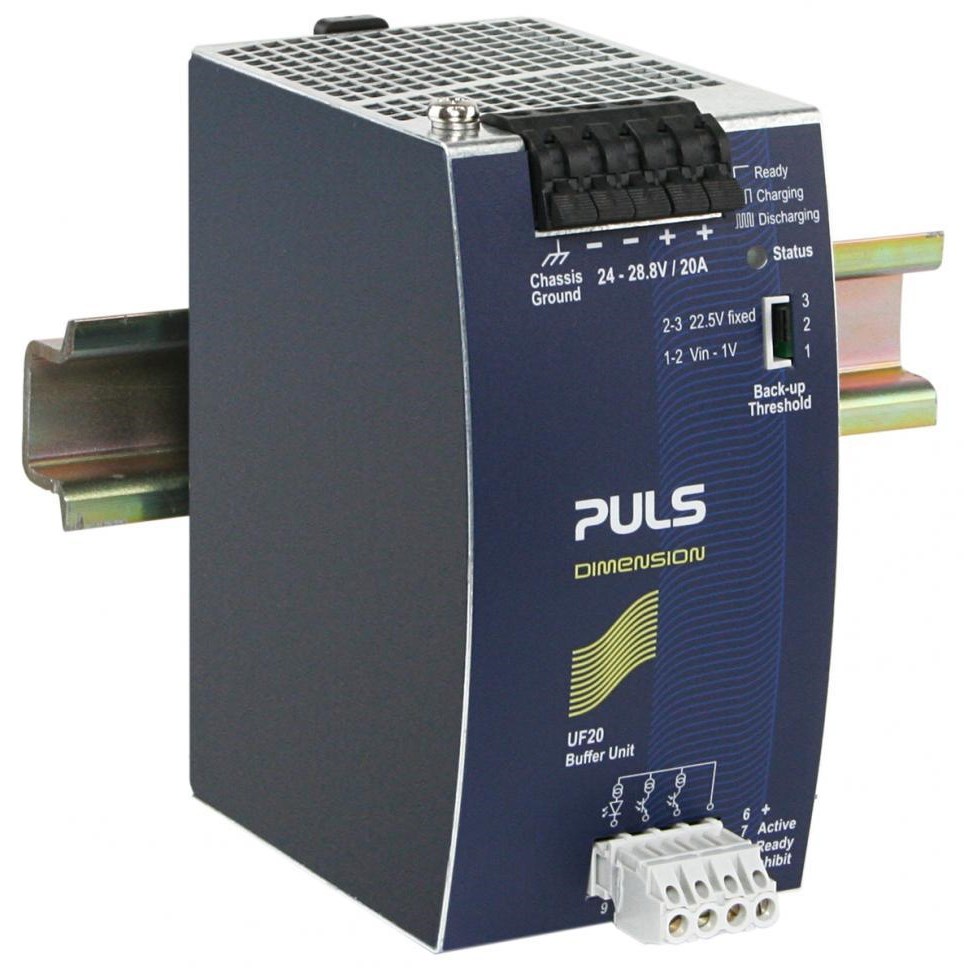

Puls UF20.241 Electrolytic Capacitor Buffer Module U 24VDC 20A

Product Code: UF20.241

  • 24 VDC, 20 A buffer module
  • Spring clamp connections
  • IP20 protection rating
  • DIN rail mounting
  • Operates from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Buffer Module ( capacitor-based)
Brand
Puls
Series
UF Series

Electrical

Input Voltage
24 V DC (-7% / +20%)
Output Current - Nominal
20 A
Output Voltage - Nominal
24 V DC
Buffering Storage Element
Electrolytic capacitors
Terminal Type
Spring-clamps

Mechanical

Mounting Style
DIN Rai

Dimensions & Physical Data

Depth
102 mm
Height
124 mm
Weight
0.74 kg
Width
64 mm

Environmental

Operating Temperature
-25 °C to +70 °C
