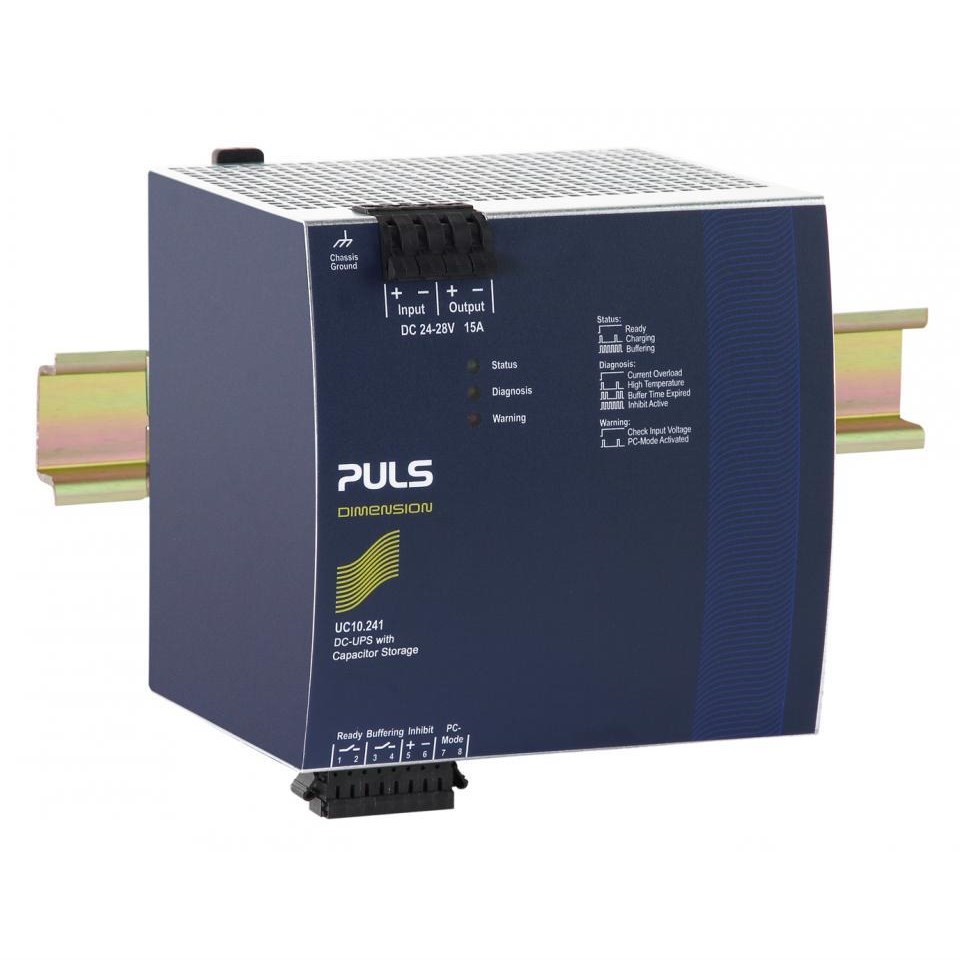

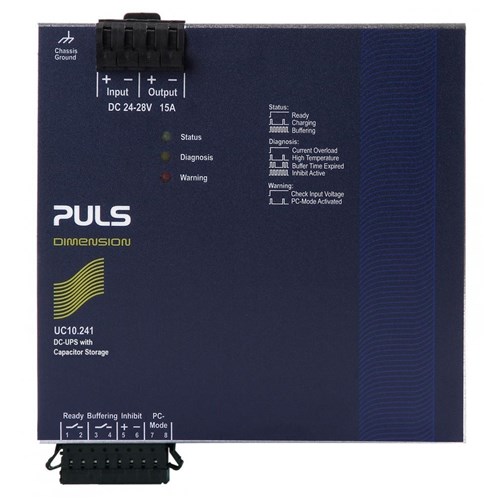

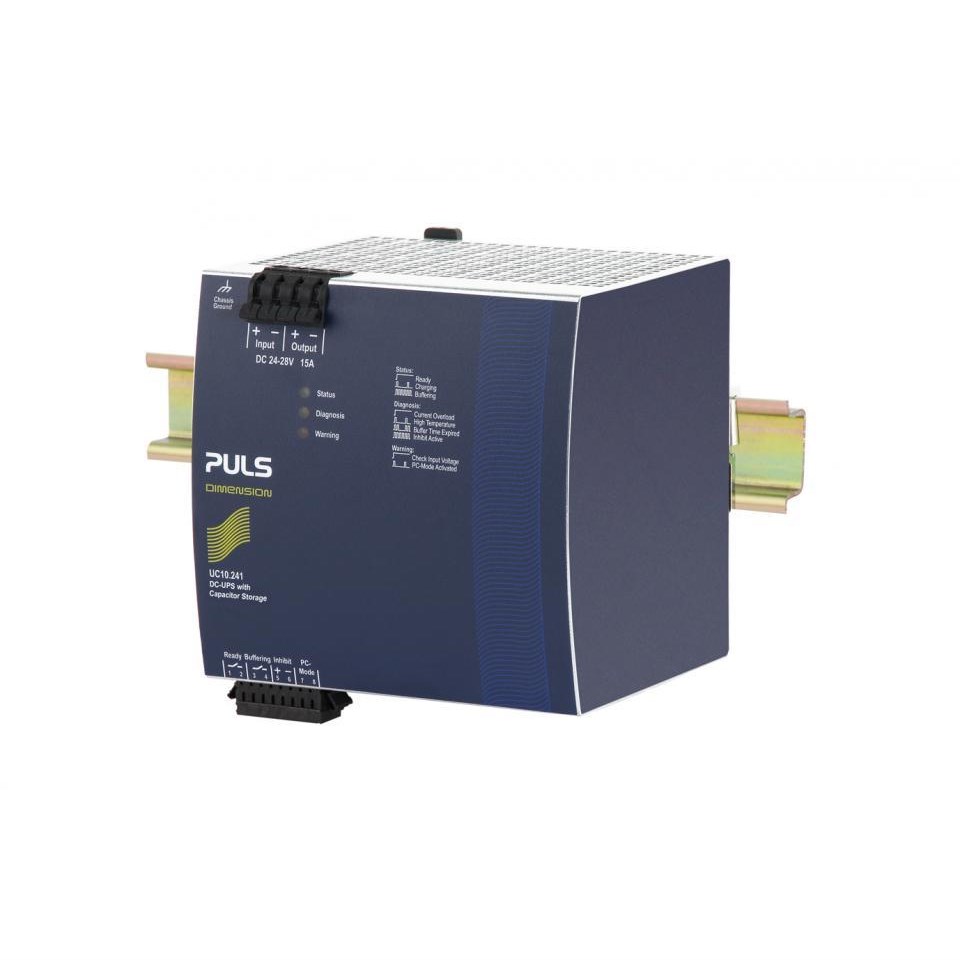

Puls UC10.241 DC-UPS with Capacitor Storage U 24VDC 15A

Product Code: UC10.241

  • 24 VDC, 15 A capacity for reliable power backup
  • Easy spring clamp connections
  • Compact DIN rail mount design
  • IP20 protection for safe indoor use
  • Certified for global safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC-UPS with capacitor storage
Brand
PULS
Series
UC-Series

Electrical

Input Voltage DC
24 V
Output Current
15 A
Output Voltage - Nominal
24V
Buffering Storage Element
Electrochemical double layer capacitors
Terminal Type
Spring clamps

Mechanical

Mounting Style
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
1150 g
Width
126mm

Environmental

Approvals / Conformity
UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,IEC 60068-2-60,VDMA 24364,ISA-71.04 G3,CE,REACH,WEEE,KC,EAC TR
Operating Temperature
-40°C to +60°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
