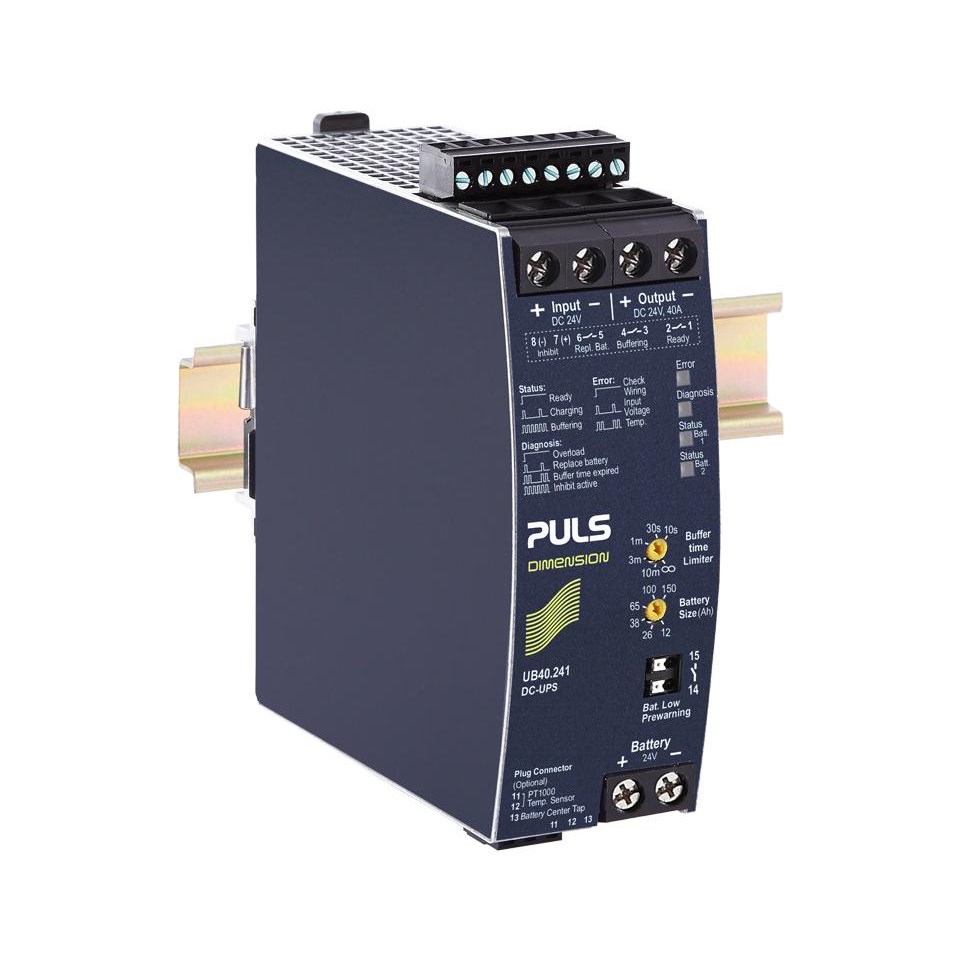

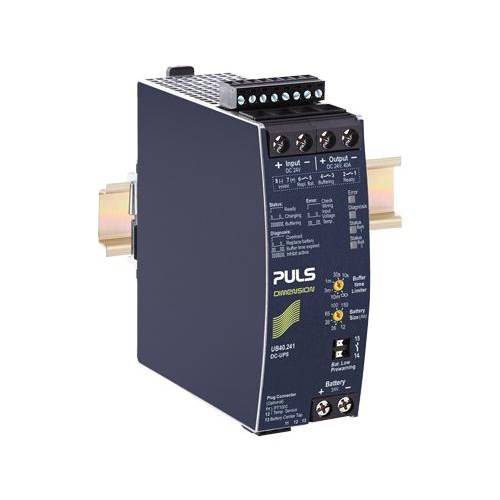

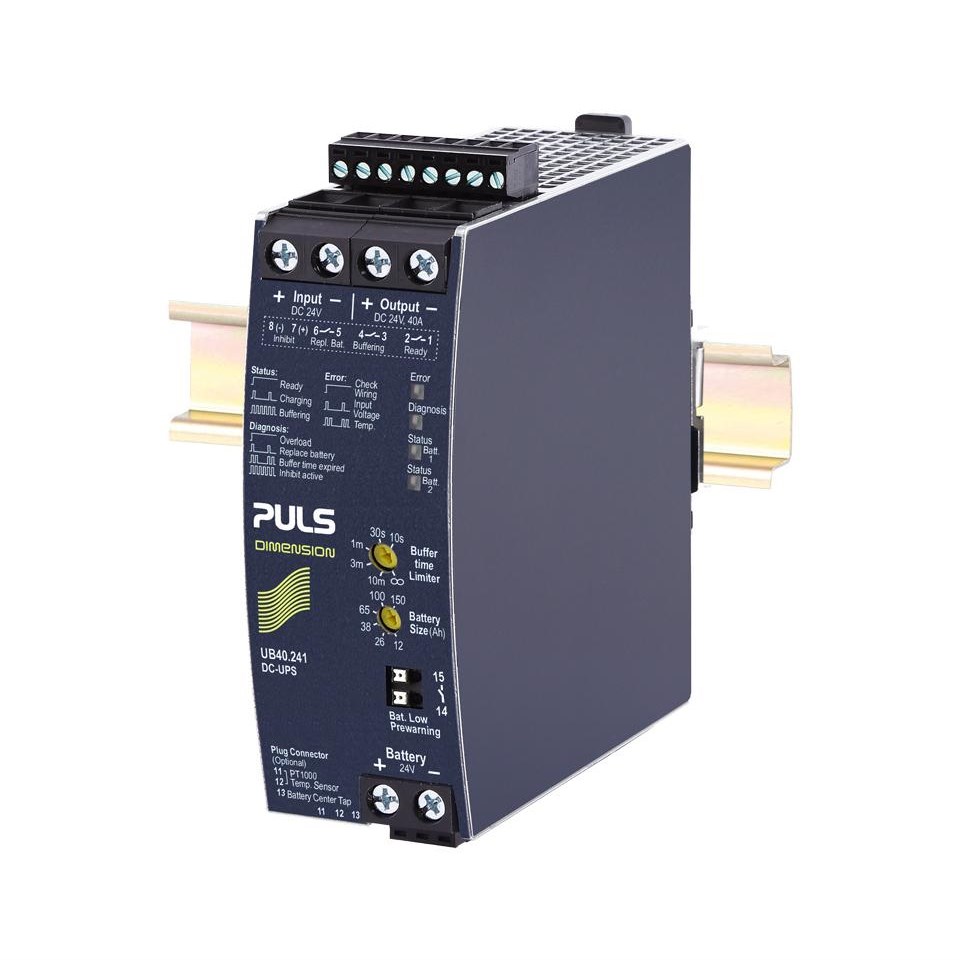

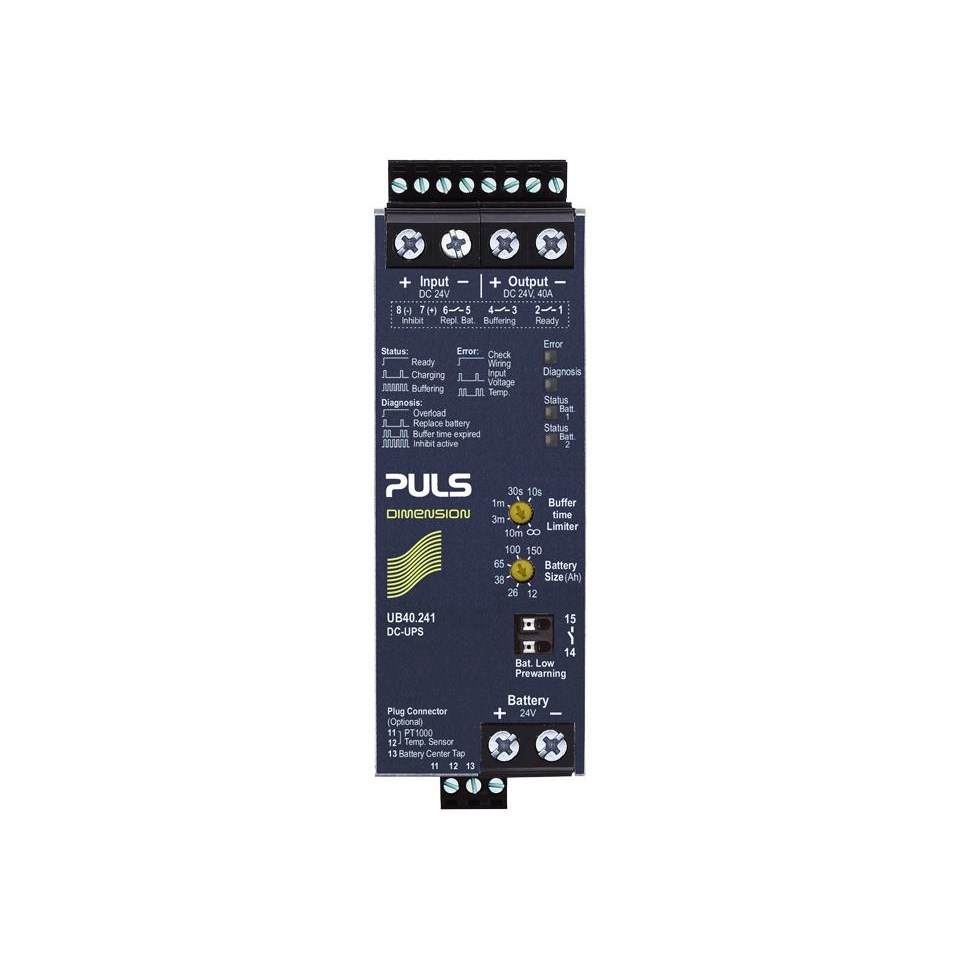

Puls UB40.241 DC-UPS Control Unit U 960W 24VDC 40A

Product Code: UB40.241

  • 24 VDC, 960 W power capacity
  • Supports battery size: 12 to 200 Ah
  • Compact design: 46x124x127 mm
  • Operating temp range: -25 to 70°C
  • Meets ATEX and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC-UPS control unit
Brand
PULS
Series
UB-Series

Electrical

Input Voltage DC
DC 24 V (± 25 %)
Output Current
40A
Output Voltage - Nominal
24V
Allowed Battery Size
12 Ah - 200 Ah
Buffering Storage Element
External lead acid battery
Terminal Type
Screw terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style
DIN rail

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
530g
Width
46 mm

Environmental

Approvals / Conformity
UL 61010,IEC 61010,VDMA 24364,CE,REACH,WEEE,RoHS (China RoHS 2)
Operating Temperature
-25 °C to 70 °C
IP Rating
IP20

Documents

IPD Product Catalogue V17
