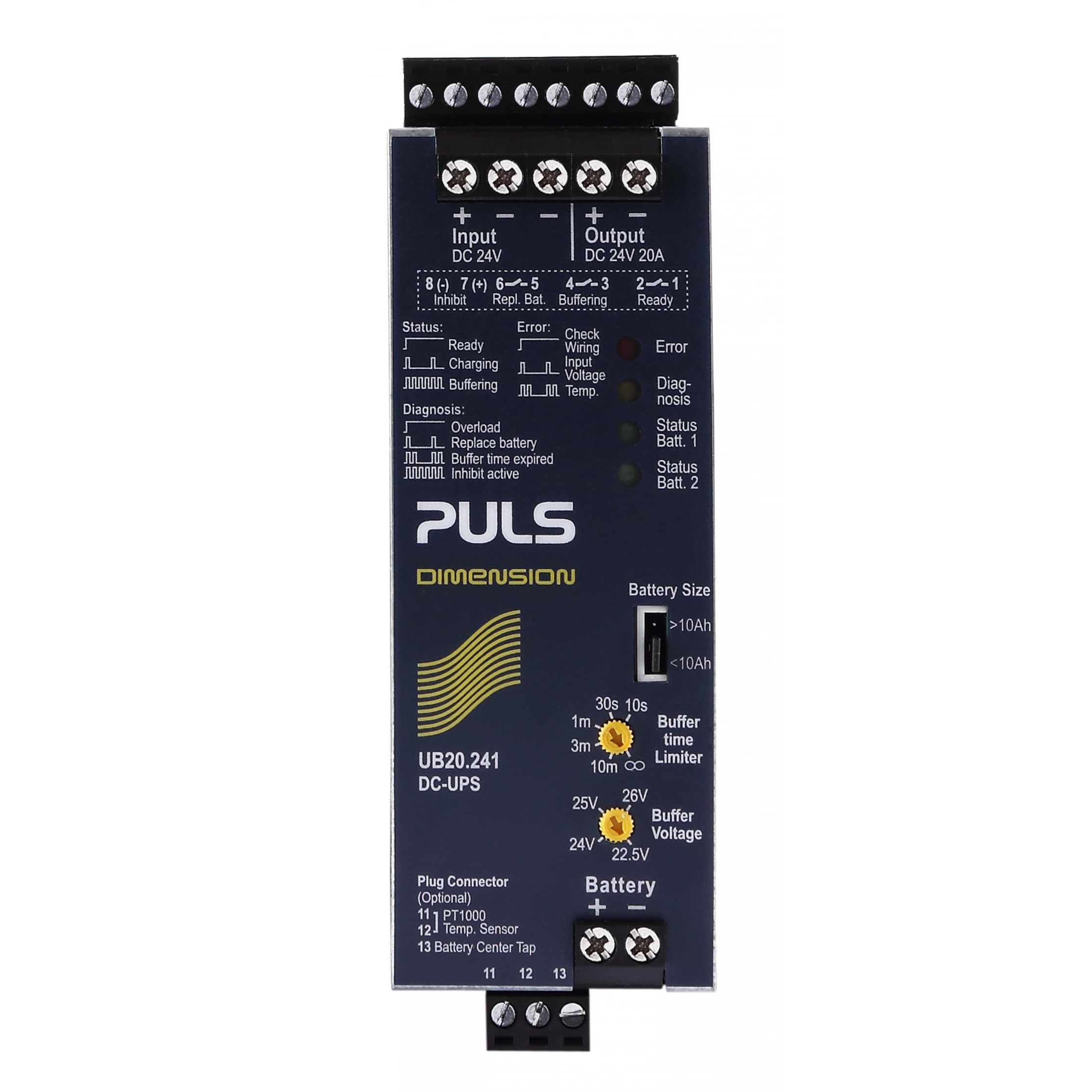

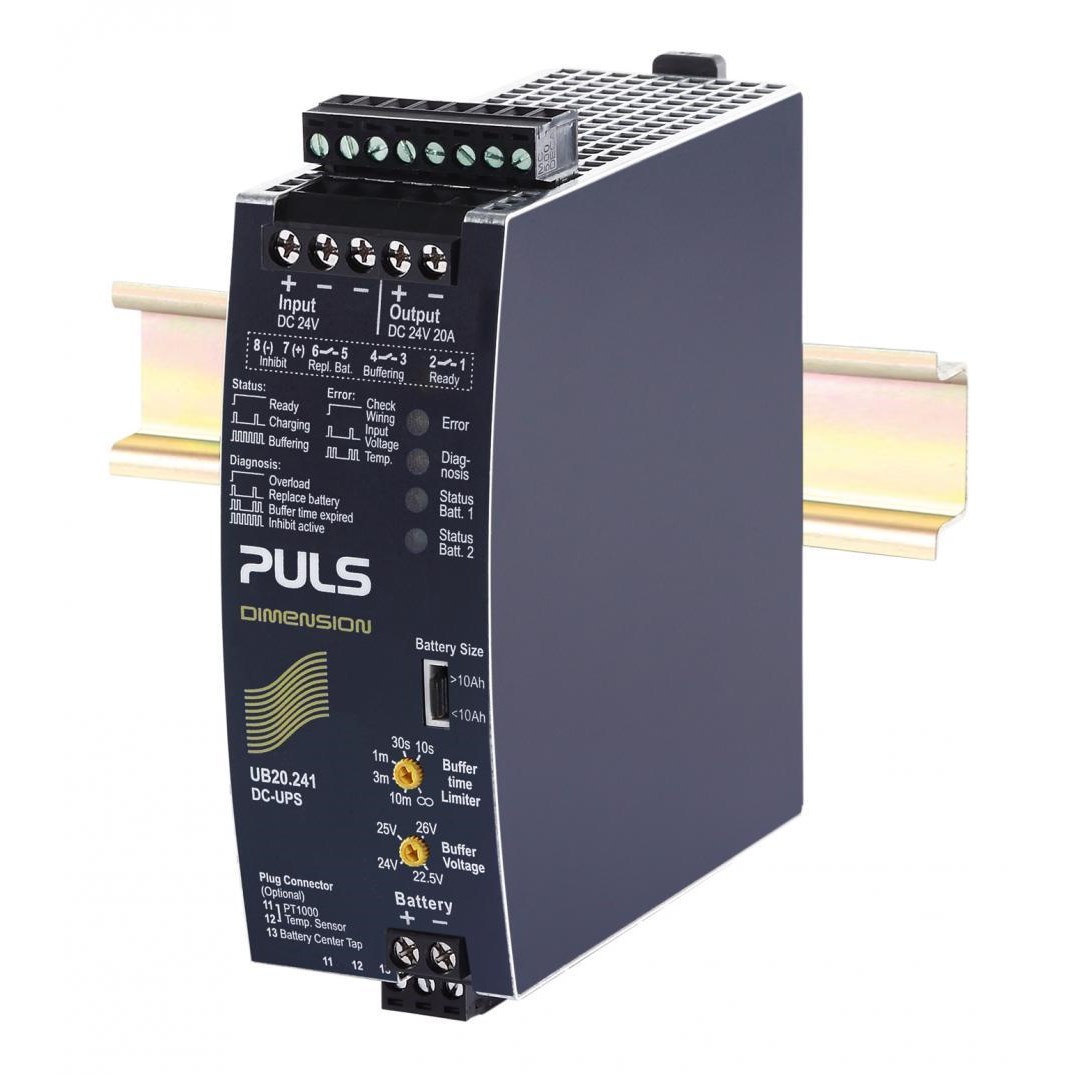

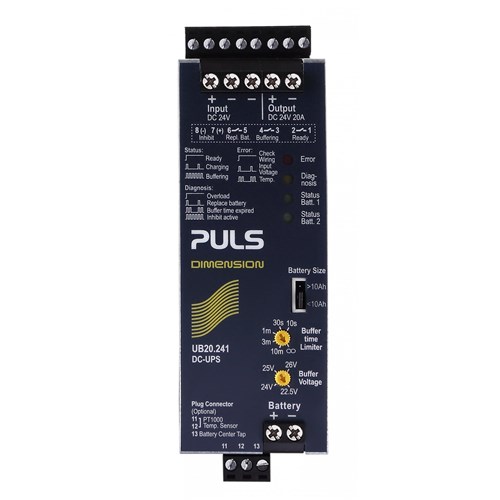

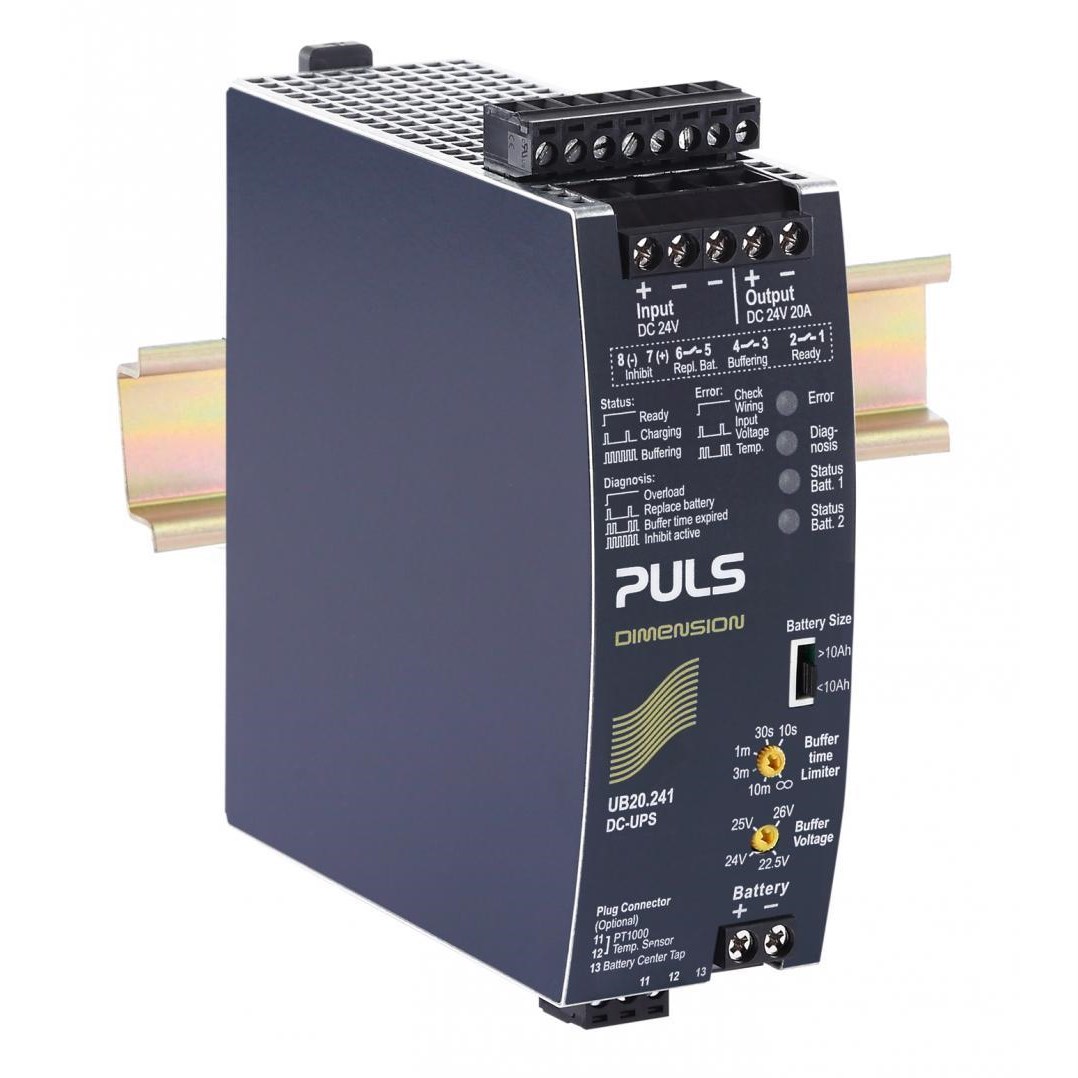

Puls UB20.241 DC-UPS Control Unit U 480W 24VDC 20A

Product Code: UB20.241

  • 24 VDC, 480 W power capacity
  • Supports batteries: 3.9-150 Ah
  • Screw connection, DIN rail mount
  • Wide temp range: -40 to 70°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC-UPS control unit
Brand
PULS
Series
UB-Series

Electrical

Input Voltage DC
DC 24 V (± 25 %)
Output Current
20A
Output Voltage - Nominal
24V
Allowed Battery Size
24 V, 3.9 to 150 Ah
Buffering Storage Element
External lead acid battery
Terminal Type
Screw terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style
DIN rail

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
700g
Width
46 mm

Environmental

Approvals / Conformity
UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,Marine (DNV),Marine (ABS) (UB20.241)IEC 60068-2-60,VDMA 24364,ISA-71.04 G3,CE,REACH,WEEE,KC,EAC TR
Operating Temperature
-40 °C to 70 °C
IP Rating
IP20
