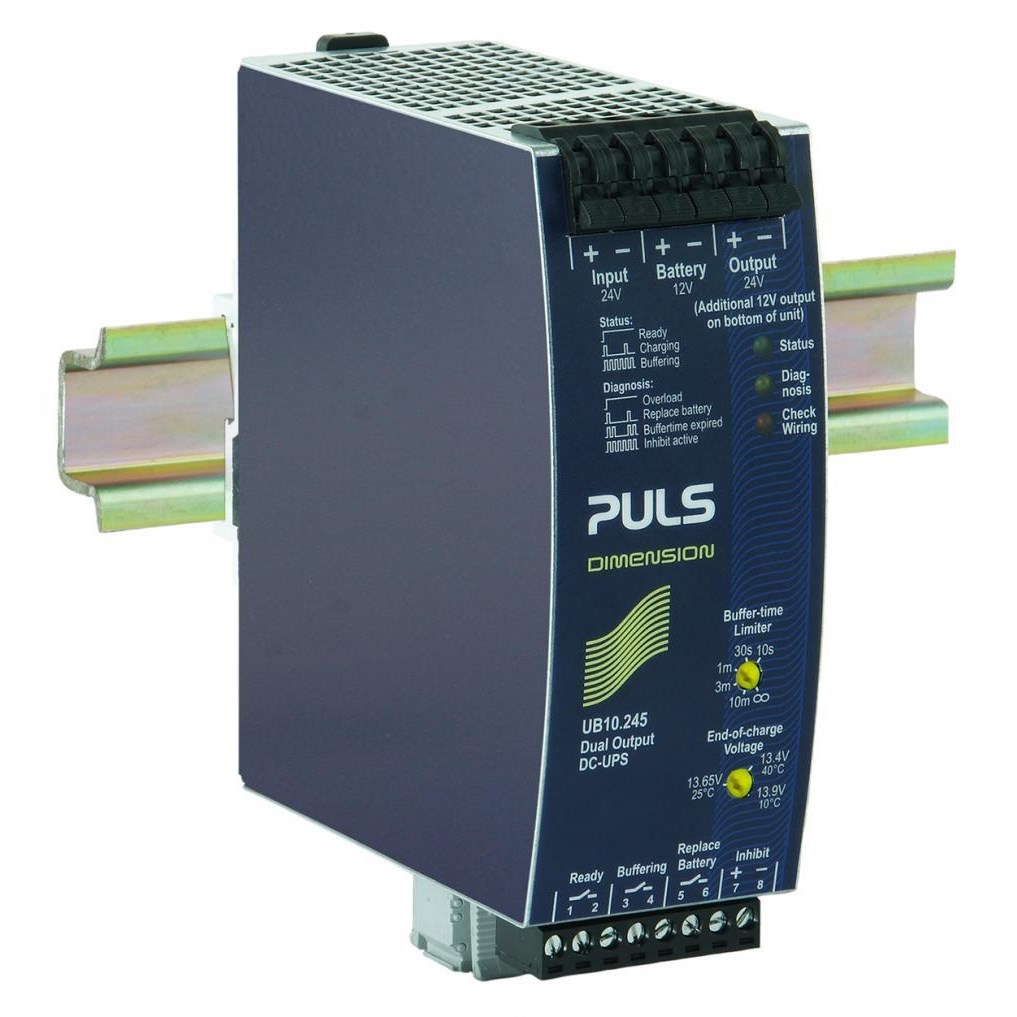

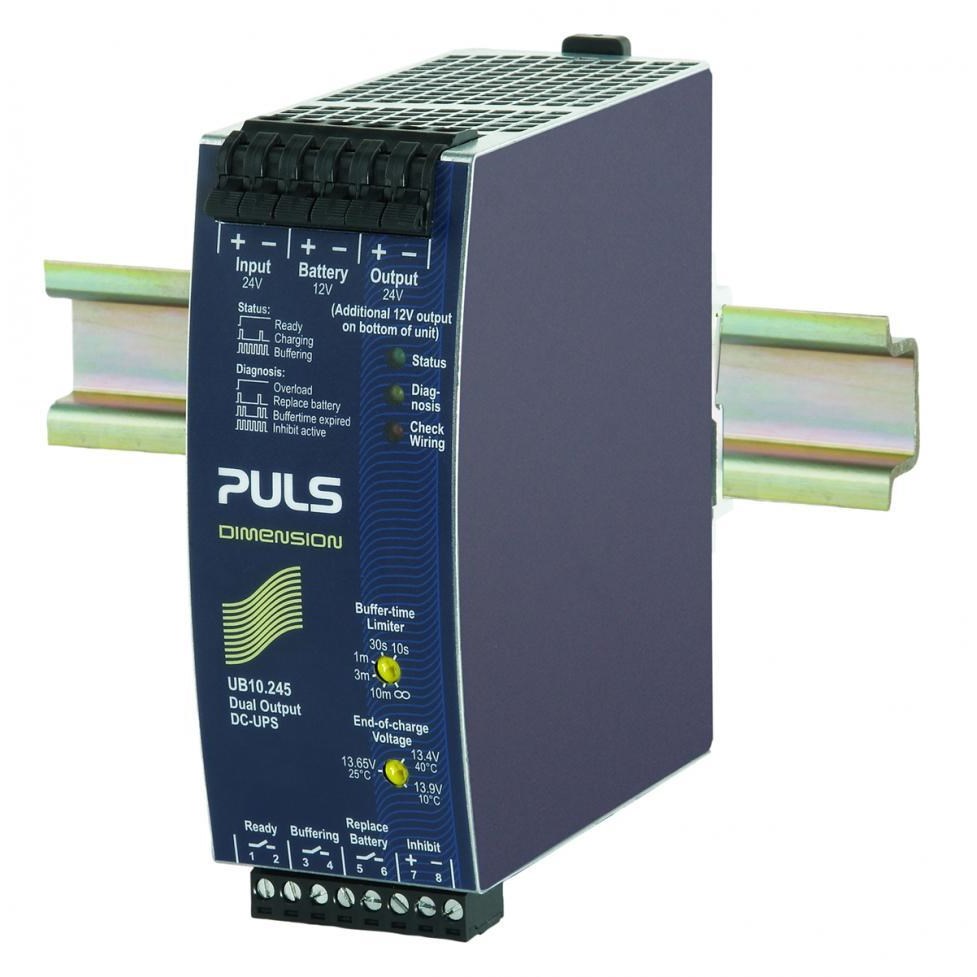

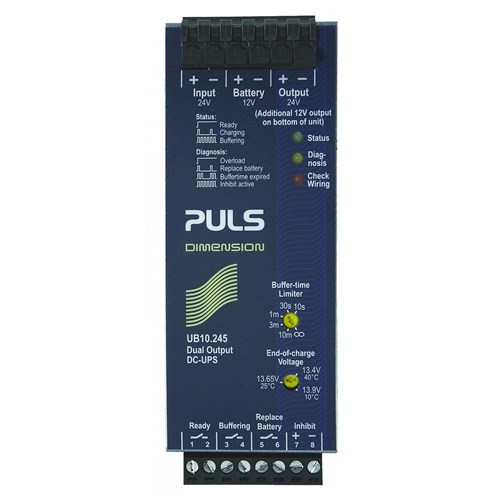

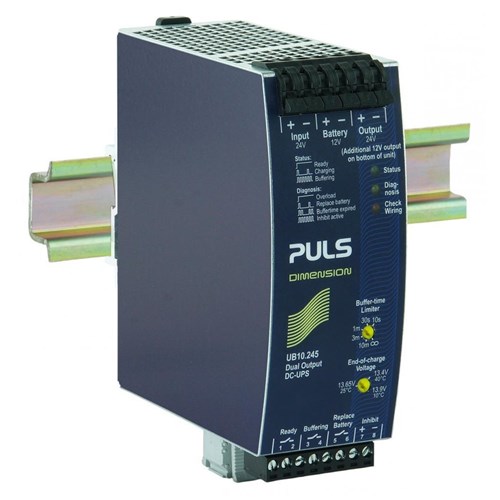

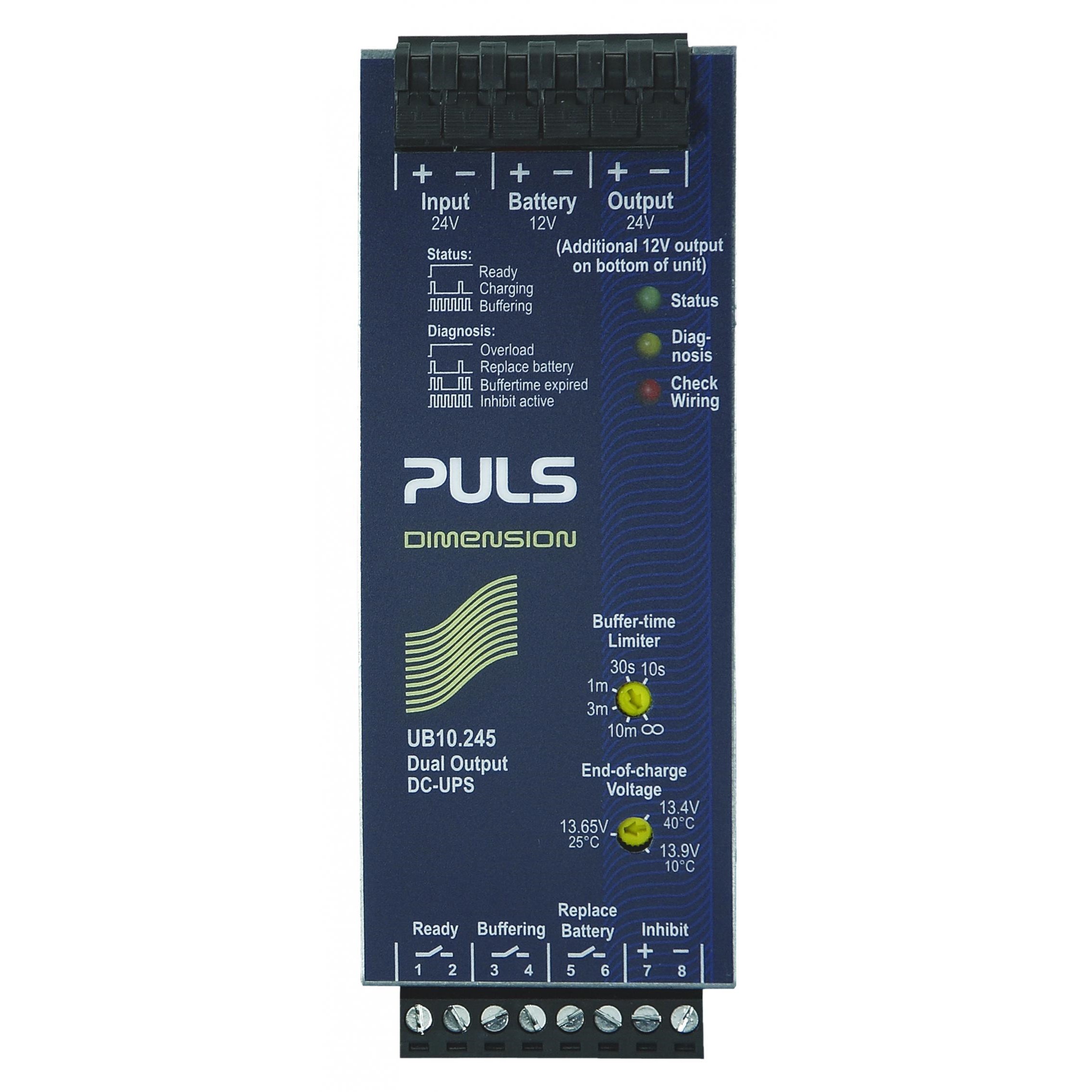

Puls UB10.245 DC-UPS Control Unit U 24VDC 10A

Product Code: UB10.245

  • DC-UPS with 24 VDC, 10 A rating
  • Supports battery size 3.9-40 Ah
  • Spring clamp connection for easy install
  • DIN rail mountable, compact design
  • Operates in -25 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC-UPS control unit
Brand
PULS
Series
U–Series

Electrical

Input Voltage DC
24 V
Output Current
10A
Output Voltage - Nominal
24V
Allowed Battery Size
12 V, 3.9 to 40 Ah
Buffering Storage Element
External lead acid battery
Terminal Type
Spring clamps

Mechanical

Mounting Style
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
350g
Width
49mm

Environmental

Approvals / Conformity
UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,IEC 60068-2-60,VDMA 24364,ISA-71.04 G3,CE,REACH,WEEE,EAC TR
Operating Temperature
-25 °C to 70 °C
IP Rating
IP20
