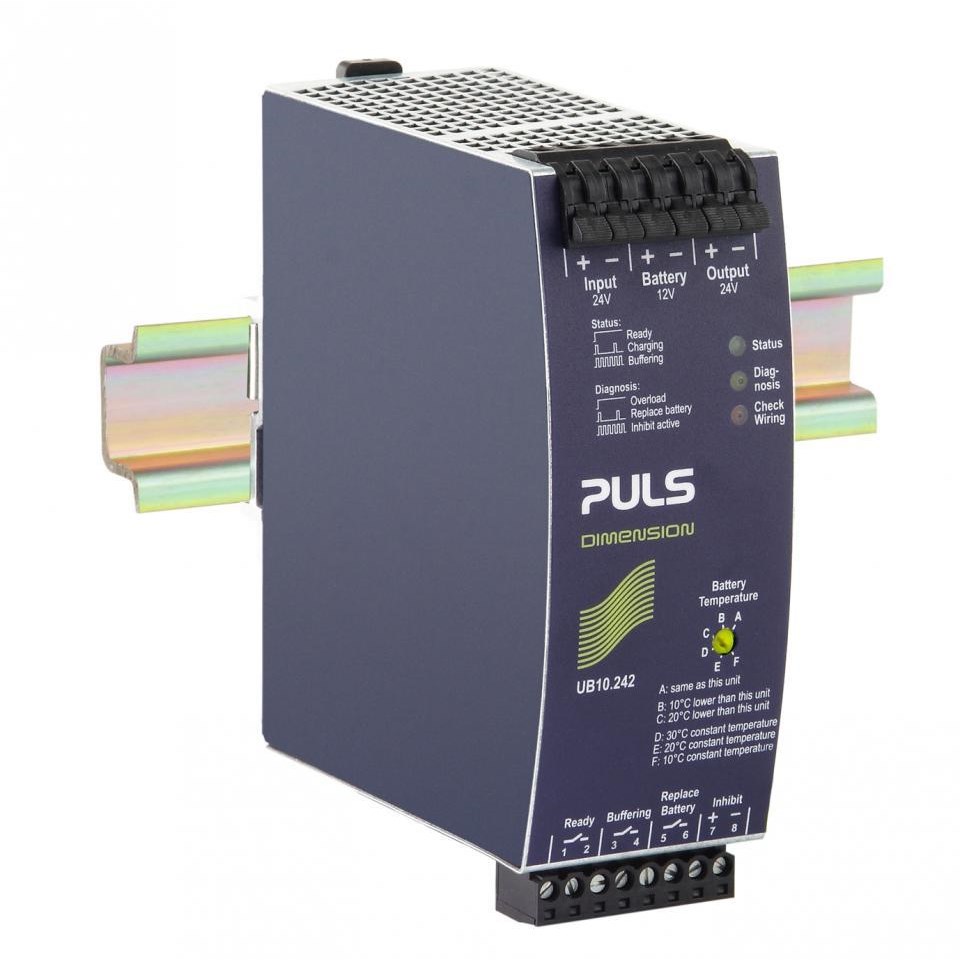

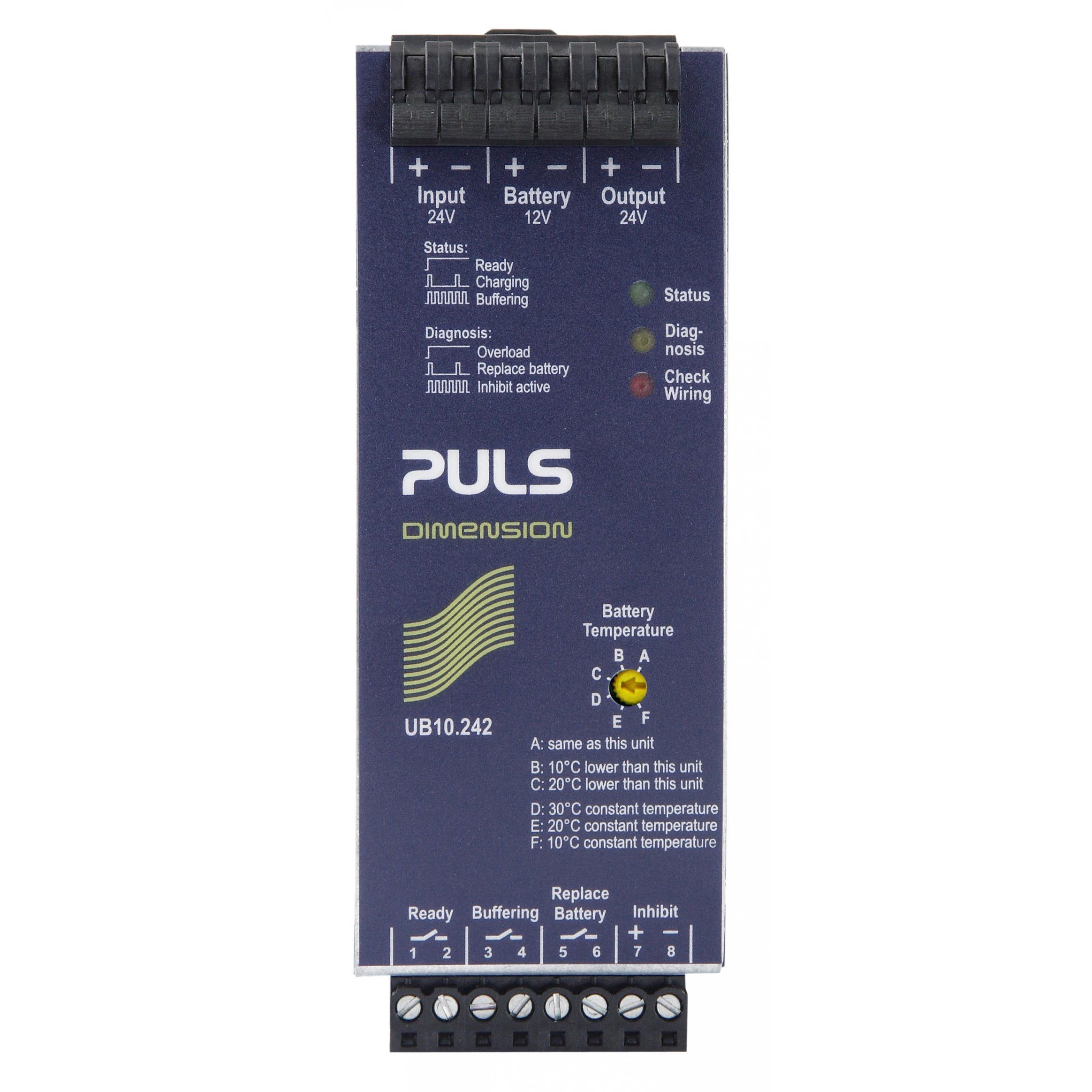

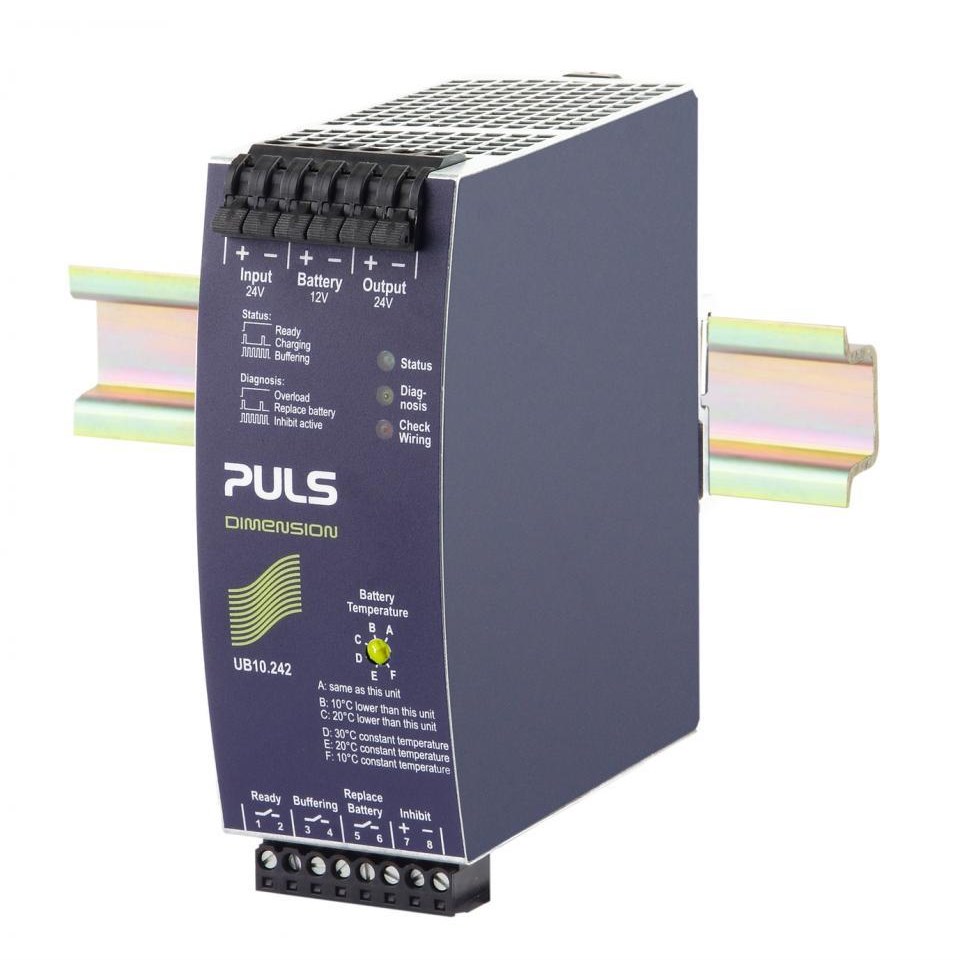

Puls UB10.242 DC-UPS Control Unit U 24VDC 10A

Product Code: UB10.242

  • 24 VDC, 10 A rated DC-UPS for reliable power
  • Supports battery sizes from 17 to 130 Ah
  • Compact DIN rail mounting with IP20 protection
  • Operates in temperatures from -25 to 50°C
  • Complies with global safety standards and approvals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC-UPS control unit
Brand
PULS
Series
U–Series

Electrical

Input Voltage DC
24 V
Output Current
10A
Output Voltage - Nominal
24V
Allowed Battery Size
12 V, 17 to 130 Ah
Buffering Storage Element
External lead acid battery
Terminal Type
Spring clamps

Mechanical

Mounting Style
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
545g
Width
49mm

Environmental

Approvals / Conformity
UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,Marine (DNV),Marine (ABS),Corrosion IEC 60068-2-60 Method 4,VDMA 24364,Corrosion ISA-71.04 G3,CE,REACH,WEEE,EAC TR
Operating Temperature
-25 °C to 50 °C
IP Rating
IP20

Documents

IPD Product Catalogue V17
