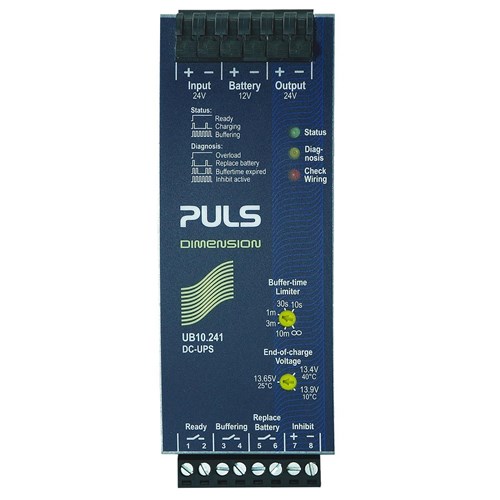

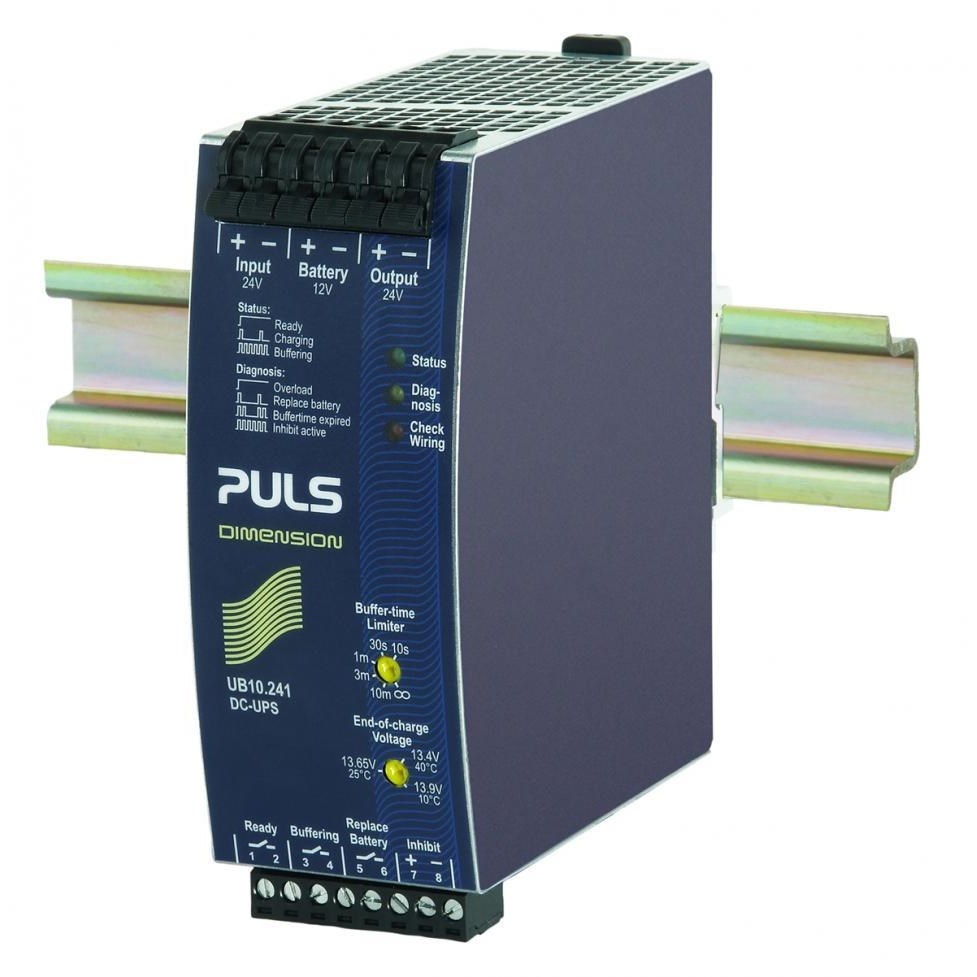

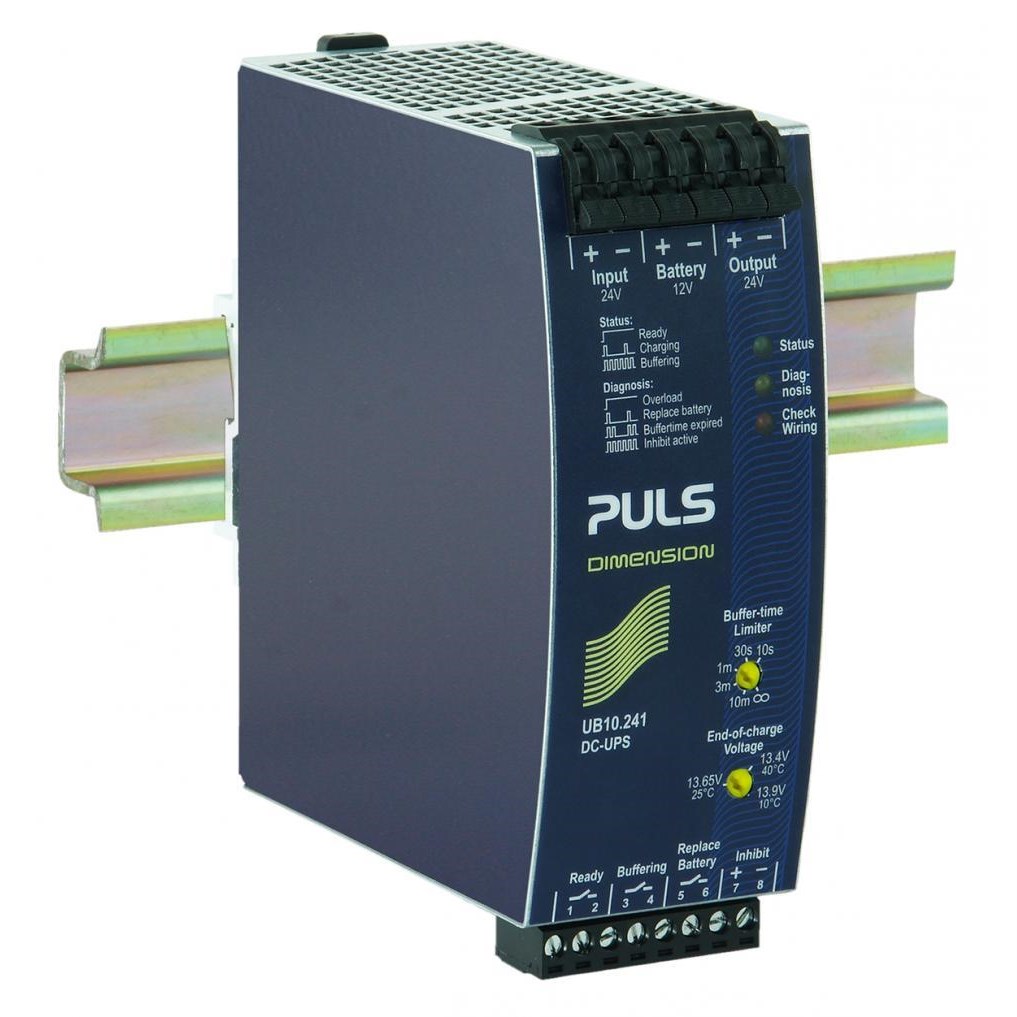

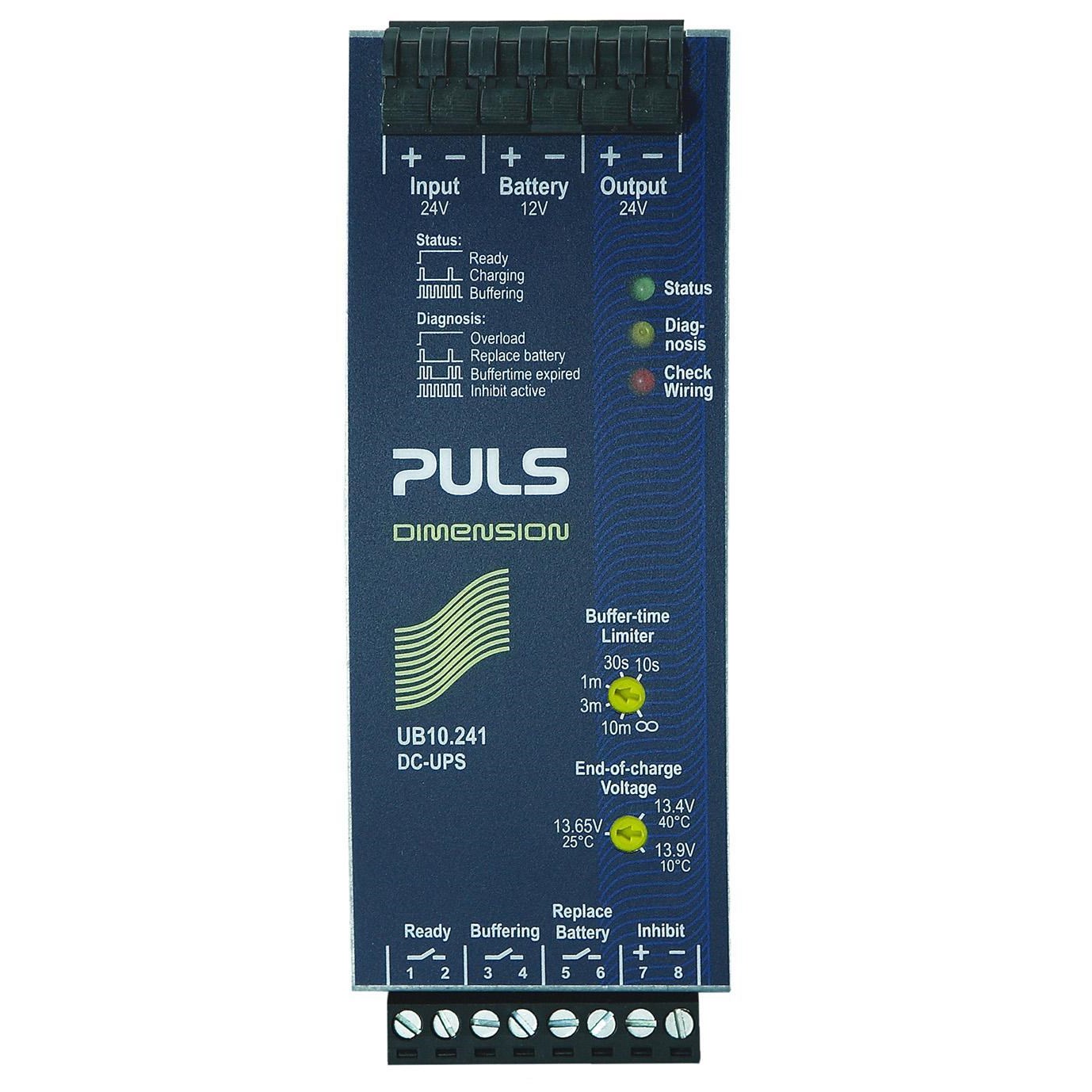

Puls UB10.241 DC-UPS Control Unit U 24VDC 10A

Product Code: UB10.241

  • 24 VDC, 10 A rated for reliable performance
  • Supports battery sizes from 3.9 to 40 Ah
  • Spring clamp connections ensure secure setup
  • Compact design: 49mm wide, DIN rail mountable
  • Operates in temperatures from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC-UPS control unit
Brand
PULS
Series
U–Series

Electrical

Input Voltage DC
24 V
Output Current
10A
Output Voltage - Nominal
24V
Allowed Battery Size
12 V, 3.9 to 40 Ah VRLA lead acid
Buffering Storage Element
External lead acid battery
Terminal Type
Spring clamps

Mechanical

Mounting Style
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
530 g
Width
49mm

Environmental

Approvals / Conformity
UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,Marine (DNV),Marine (ABS)IEC 60068-2-60,VDMA 24364,ISA-71.04 G3,CE,REACH,WEEE,KC,EAC TR
Operating Temperature
-25 °C to 70 °C
IP Rating
IP20
