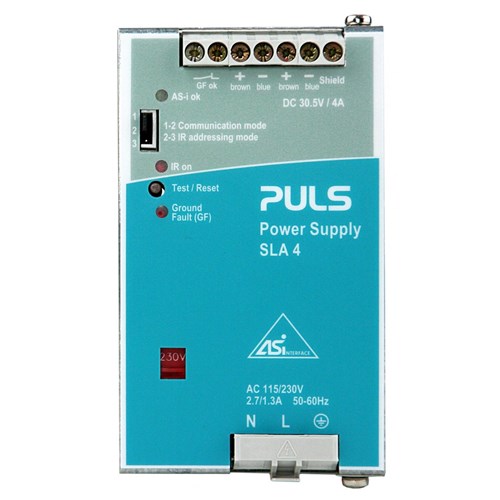

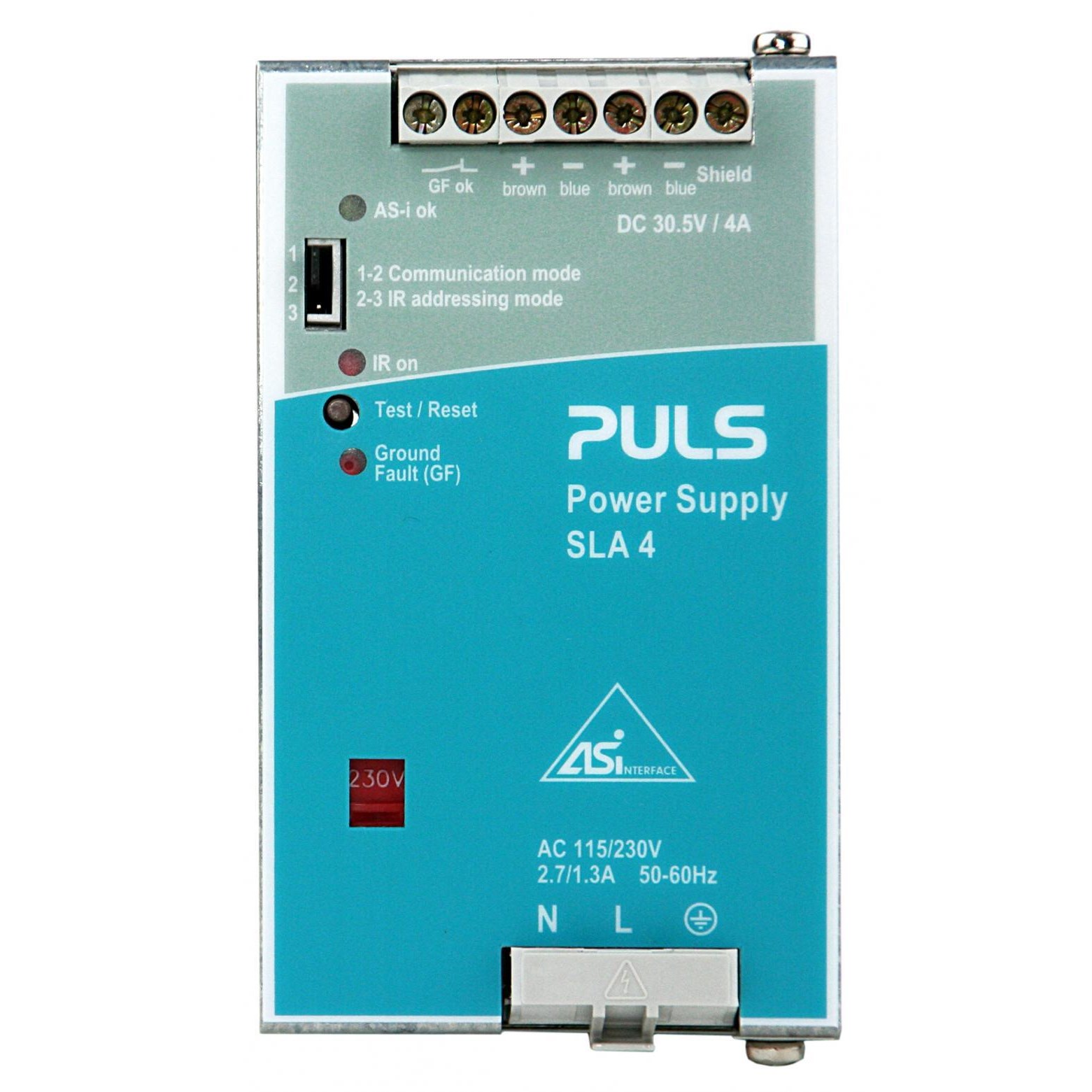

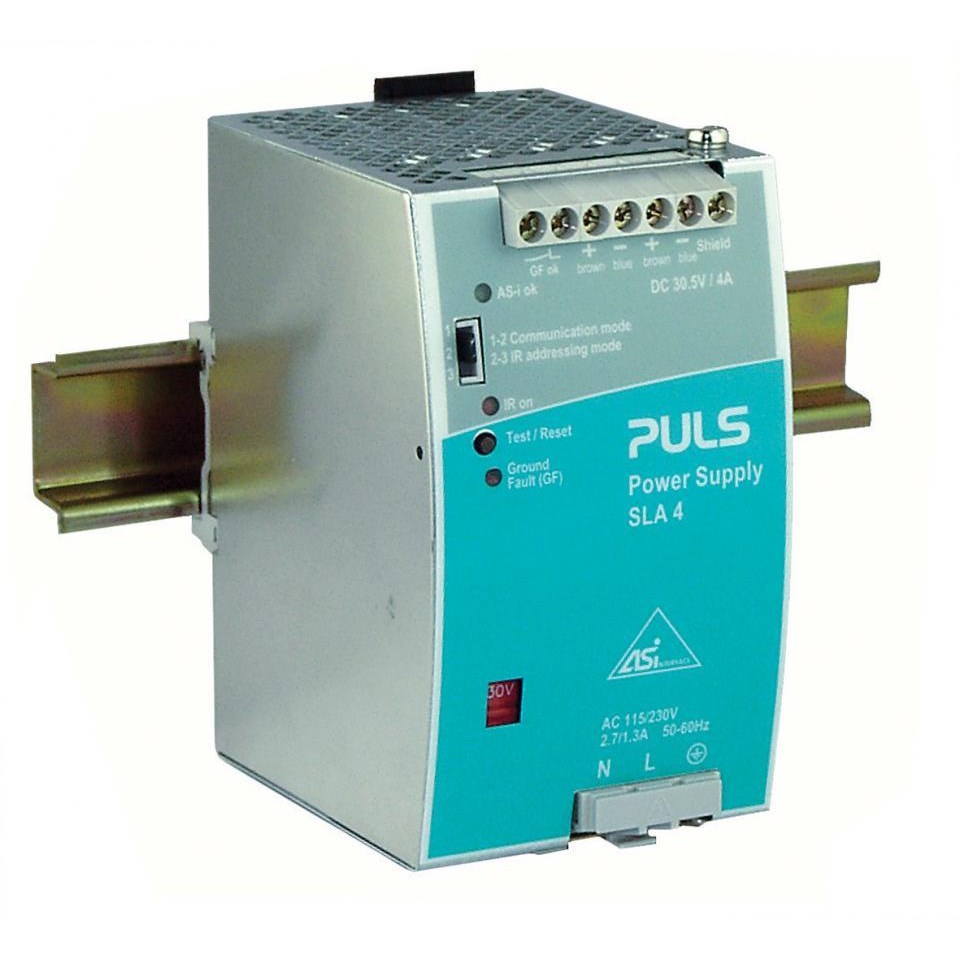

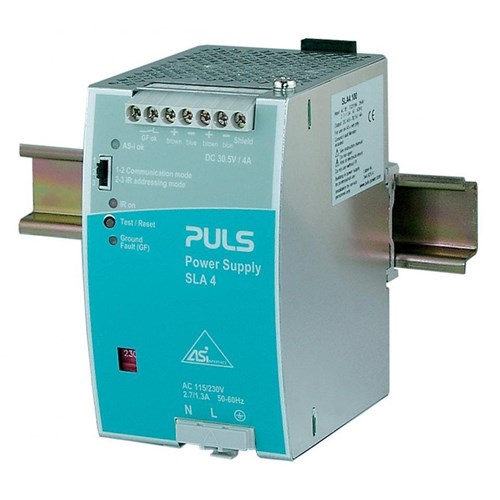

Puls SLA4.100 AS-Interface Power Supply 100-120VAC 200-240VAC 30.5VDC 4A 13.5 Watt DIN Rail Mount Screw Terminal IP20

Product Code: SLA4.100

  • AS-Interface compliant for seamless integration
  • Wide voltage range: 100-240 VAC, 30.5 VDC
  • Compact dimensions: 65x124x102 mm
  • DIN rail mountable for easy installation
  • High efficiency at 88%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Silver Line

Electrical

Input Voltage
100 - 120 / 220 - 240 V AC (-15 %/+10 %)
Output Current - Nominal
4 A at 30.5 V
Output Current - Range
0.1666666667
Output Voltage - Nominal
30.5 Vdc
Output Voltage - Range
30.5 V
Efficiency
0.88
Terminal Type
Screw Terminals

Mechanical

Housing Material
Aluminium alloy

Dimensions & Physical Data

Depth
102 mm
Height
124 mm
Weight
0.62 Kg
Width
65 mm

Environmental

IP Rating
IP20
