Products

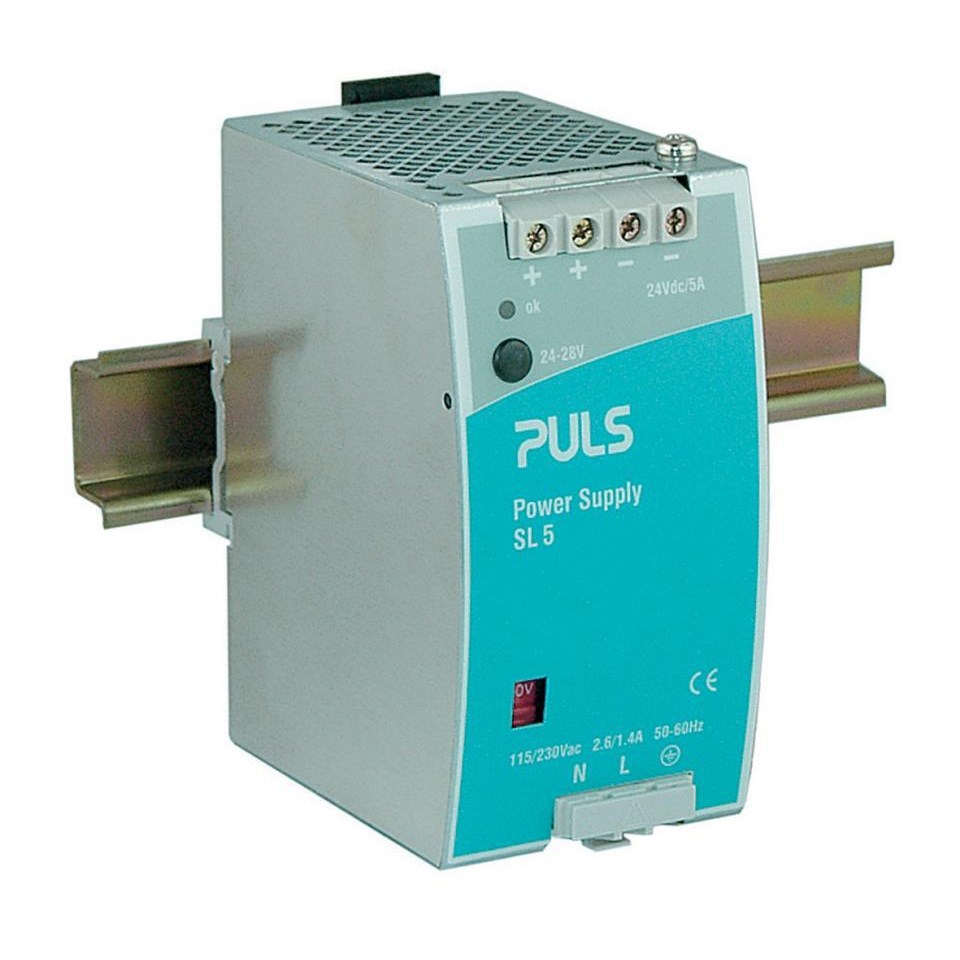

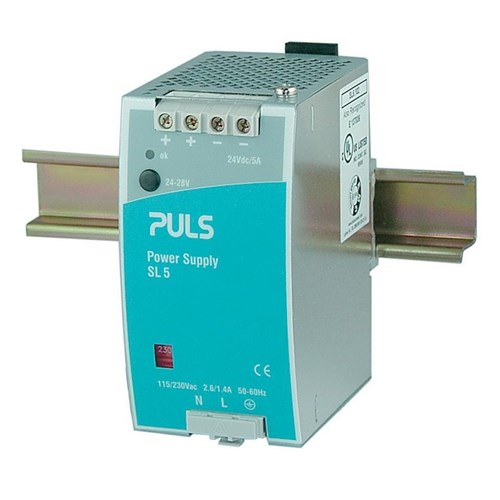

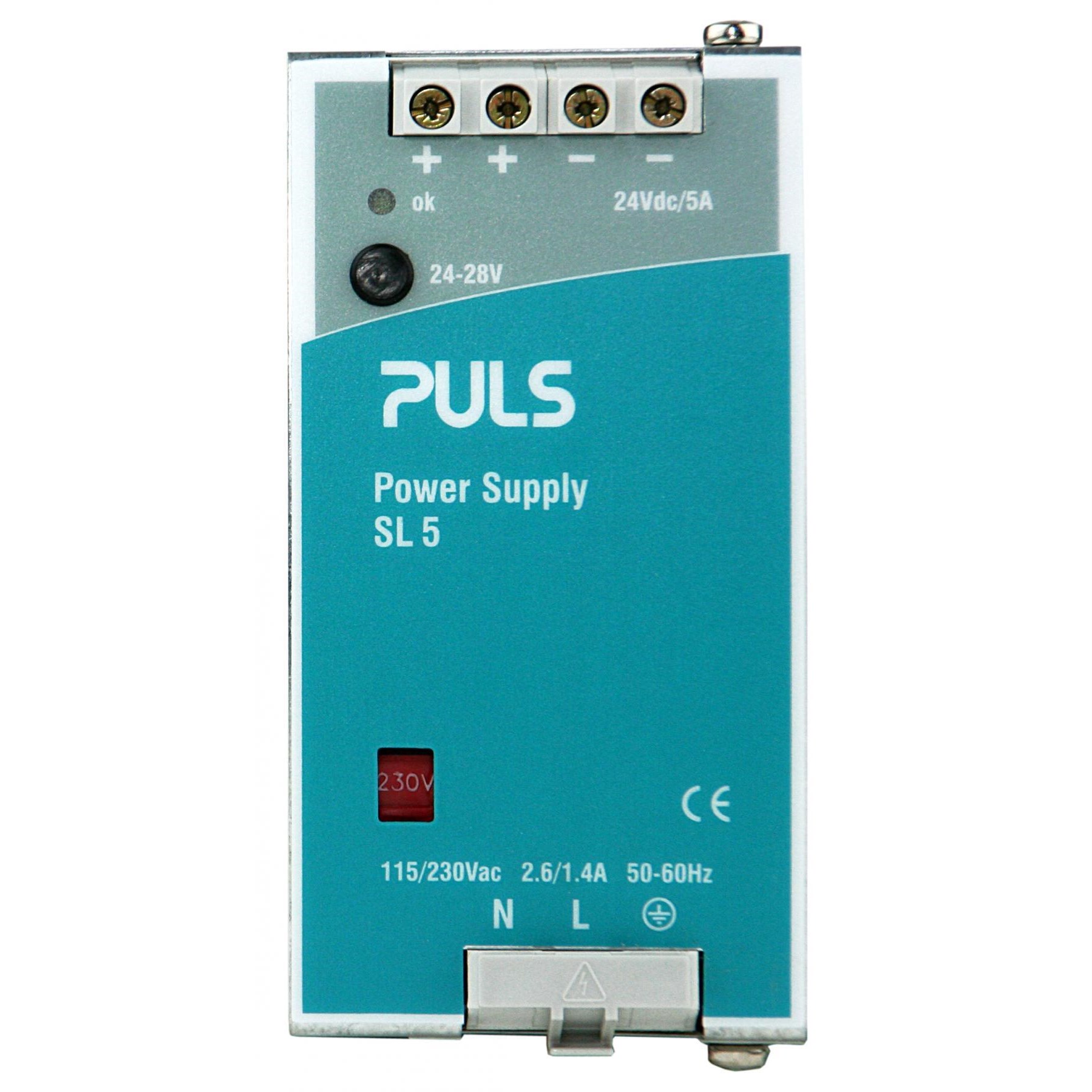

Puls SL5.102 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt DIN Rail Mount Screw Terminal IP20

Product Code: SL5.102

  • Single-phase, 5A rated current
  • Compact size: 64x124x102 mm
  • Wide voltage range: 110-300 VDC, 24 VDC
  • Secure screw terminal connections
  • IP20 protection for safe use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Silver Line

Electrical

Input Voltage
100 - 120 / 220 - 240 V AC (-15 %/+10 %) / 300 V DC (-20 %/+25 %)
Output Current - Nominal
4.3A at 28V 5A at 24V
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
0.9
Terminal Type
Screw Terminals

Mechanical

Housing Material
Aluminium alloy

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.62kg
Width
64mm

Documents

IPD Product Catalogue V17
