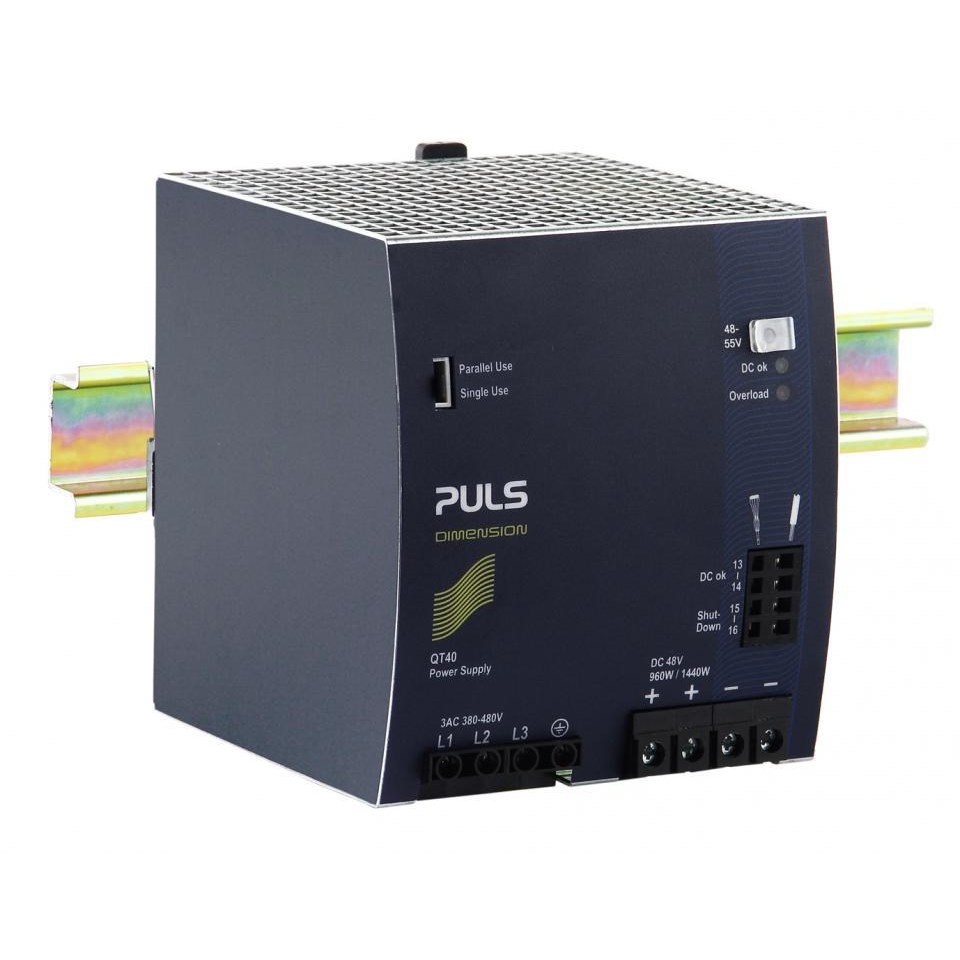

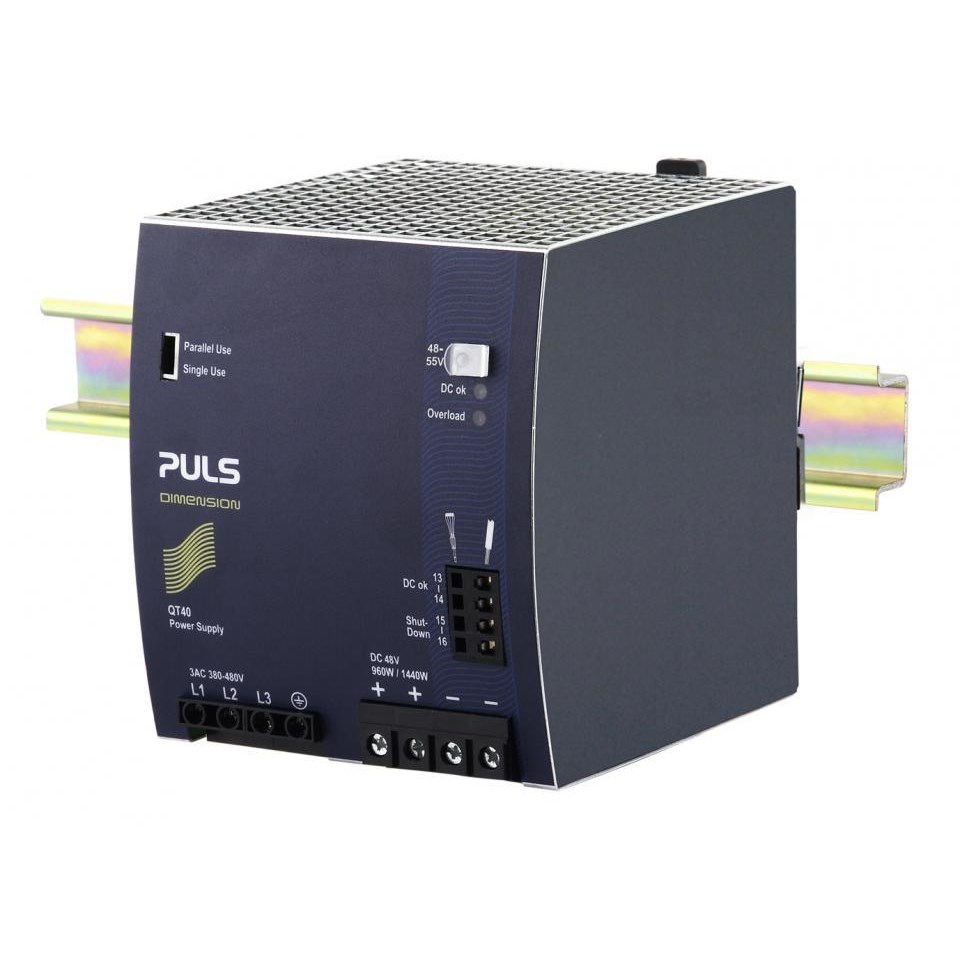

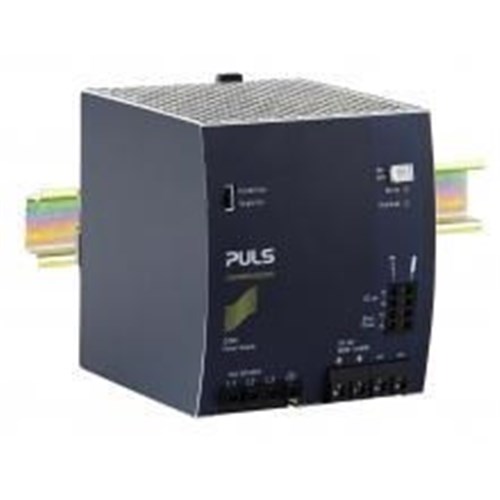

Puls QT40.481 Power Supply 3PH 380-480VAC 48VDC 20A 960 Watt 46.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: QT40.481

  • Three-phase, 20 A rated current
  • Wide-range input: 380-480 VAC, 48 VDC
  • High efficiency at 95.4%
  • IP20 protection, DIN rail mount
  • Active harmonic correction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
380-480V AC
Output Current - Nominal
20A
Output Current - Range
20A to 17.8A
Output Power
960W
Output Voltage - Nominal
48V
Output Voltage - Range
48V to 55V
Efficiency
95.4 / 95.2%
Terminal Type
Screw terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.5kg
Width
110mm

Environmental

Approvals / Conformity
UL 61010-2-201, IEC 61010-2-201, Marine (DNV), SEMI F47, VDMA 24364, CE, REACH, WEEE, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
