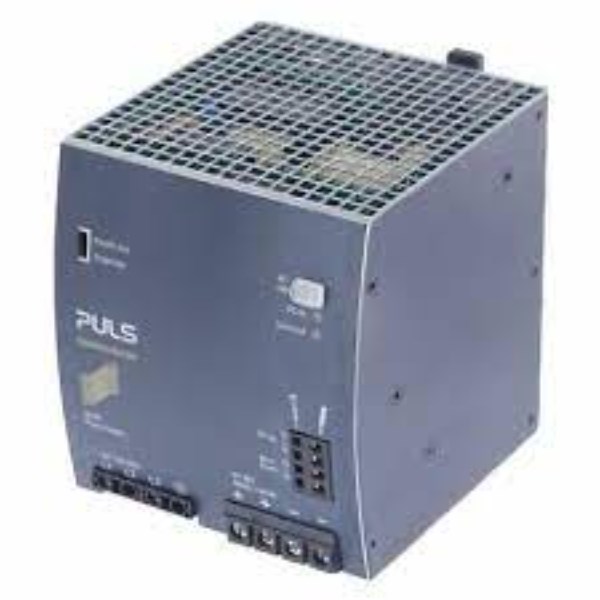

Puls QT40.481-77 Power Supply 3PH 380-480VAC 58.5VDC 16.5A 960 Watt 46.3 Watt DIN Rail Mount Screw Terminal

Product Code: QT40.481-77

  • High efficiency at 95.4%
  • Supports 16.5 A current
  • Wide voltage range: 380-480 VAC, 58.5 VDC
  • Compact size for easy DIN Rail mounting
  • Active harmonic and inrush current correction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
380-480 V AC
Output Current - Nominal
20A
Output Current - Range
20A to 17.8A
Output Power
960W
Output Voltage - Nominal
48V DC
Output Voltage - Range
48V to 54V DC
Efficiency
95.4 / 95.2% at 3x400 / 480Vac
Terminal Type
Screw Terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.5kg
Width
110mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
