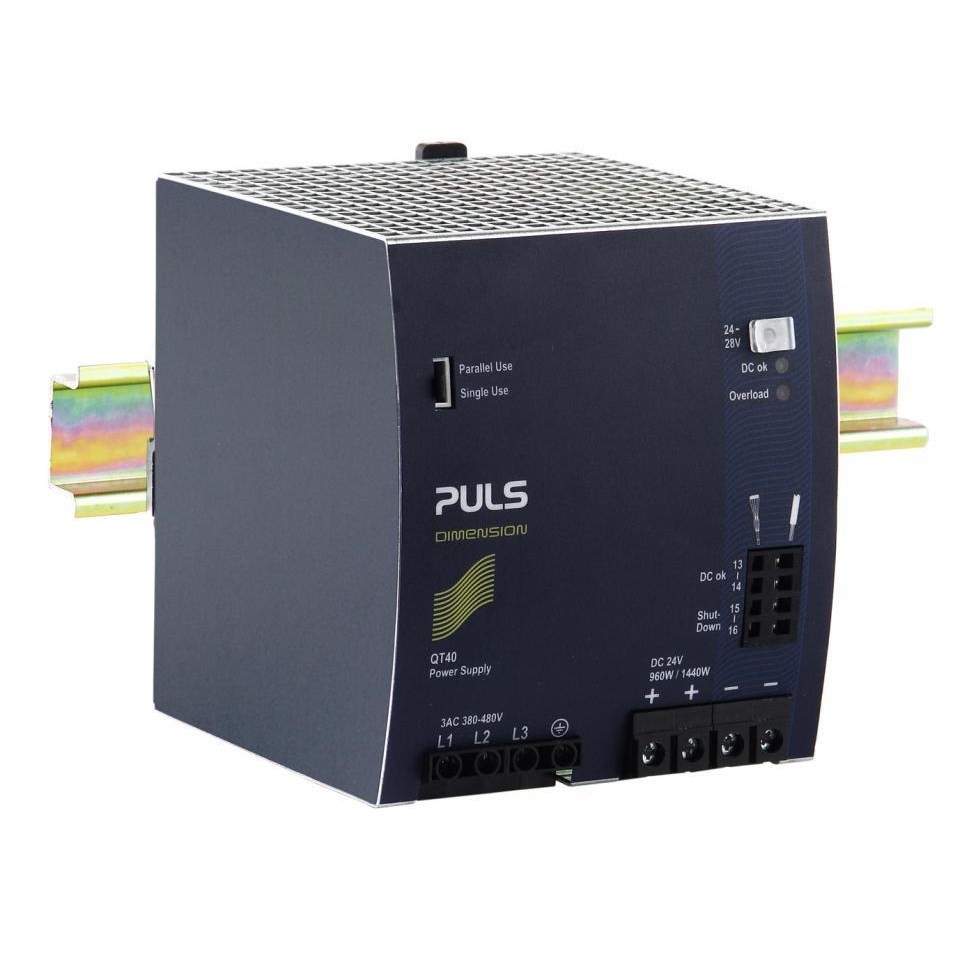

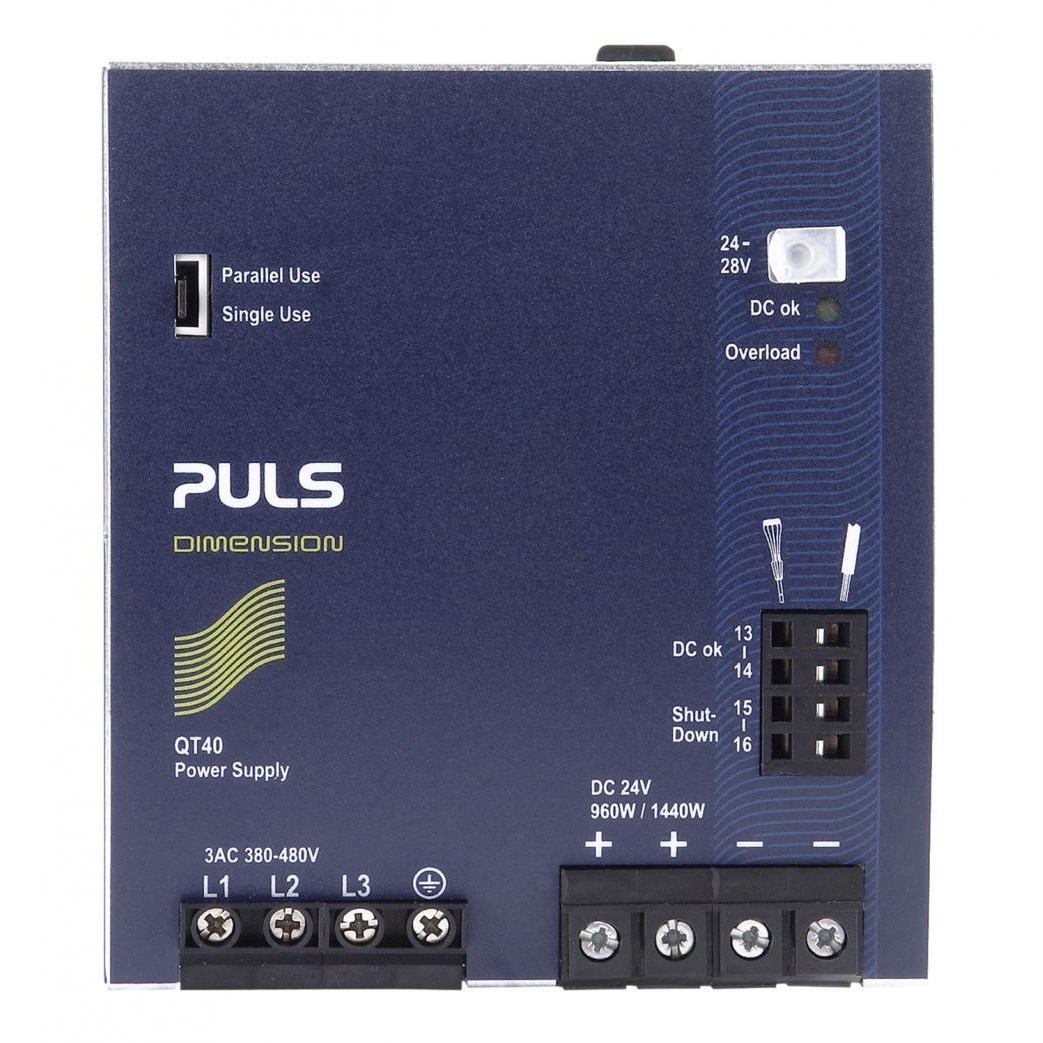

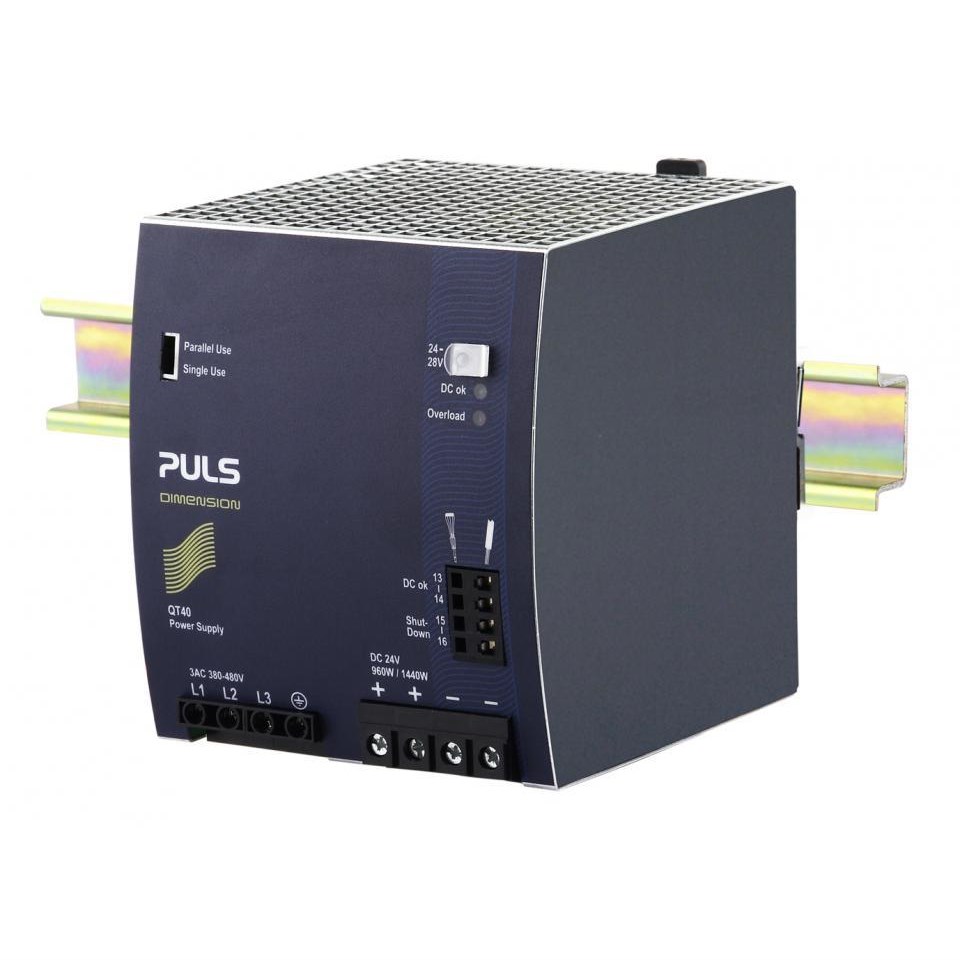

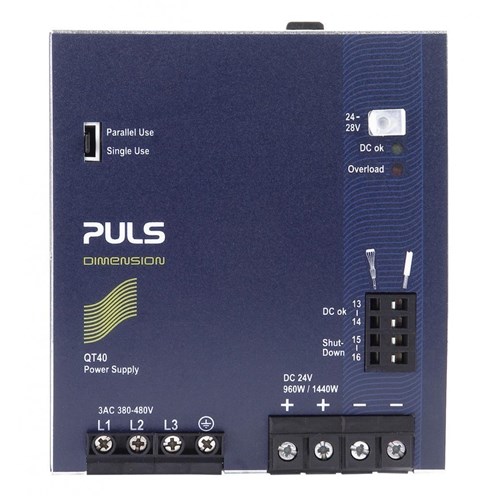

Puls QT40.241 Power Supply 3PH 380-480VAC 24VDC 40A 960 Watt 47.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: QT40.241

  • Three-phase with 40 A rated current
  • Wide-range input, 380-480 VAC & 24 VDC
  • High efficiency at 95.3%
  • Active inrush current limitation
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
380-480V AC
Output Current - Nominal
40A
Output Current - Range
40A to 34.3A
Output Power
960W
Output Voltage - Nominal
24V
Output Voltage - Range
24V to 28V
Efficiency
95.3 / 95.2%
Terminal Type
Screw terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.5kg
Width
110mm

Environmental

Approvals / Conformity
UL 61010-2-201, IEC 61010-2-201, Marine (DNV), SEMI F47, VDMA 24364, CE, REACH, WEEE, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
