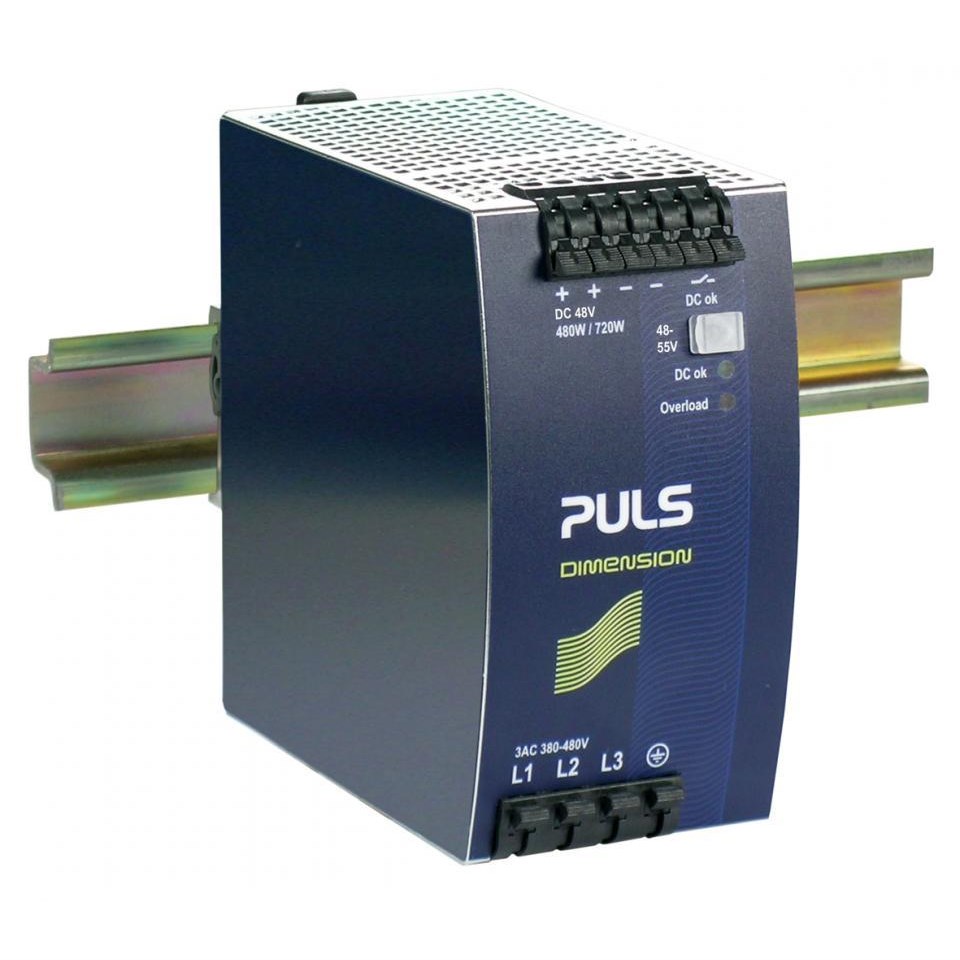

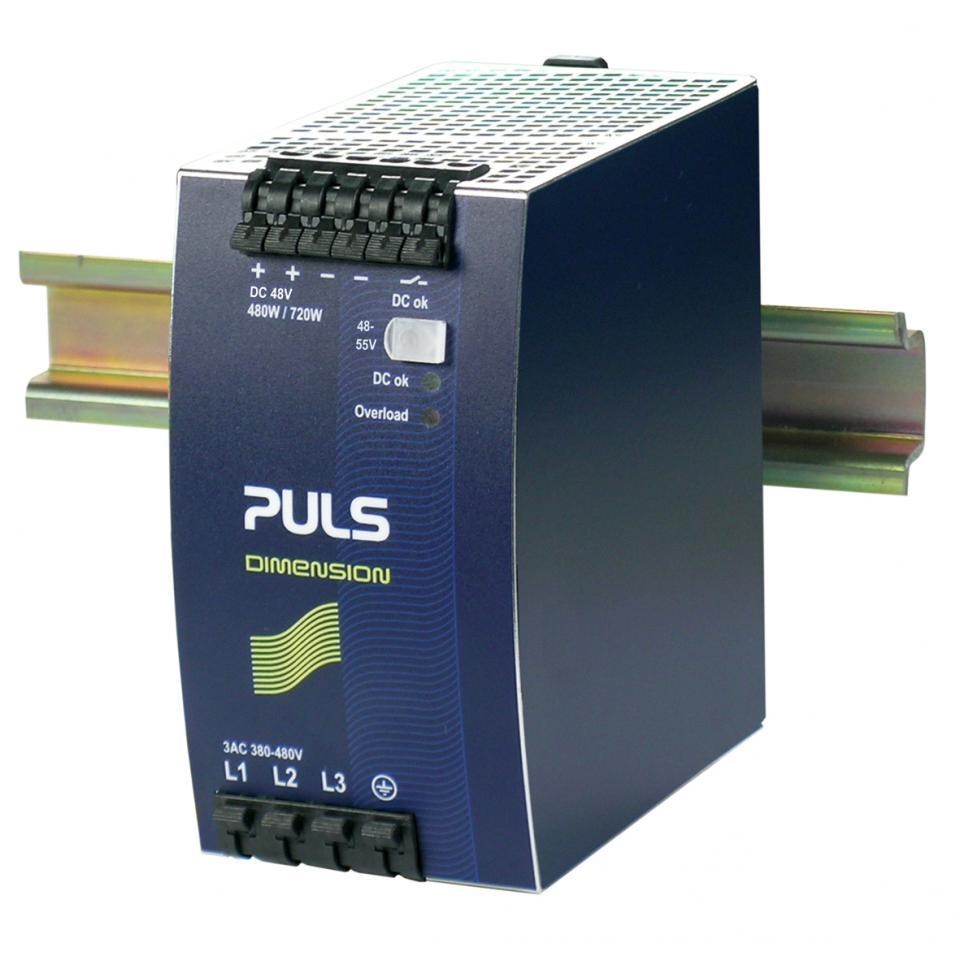

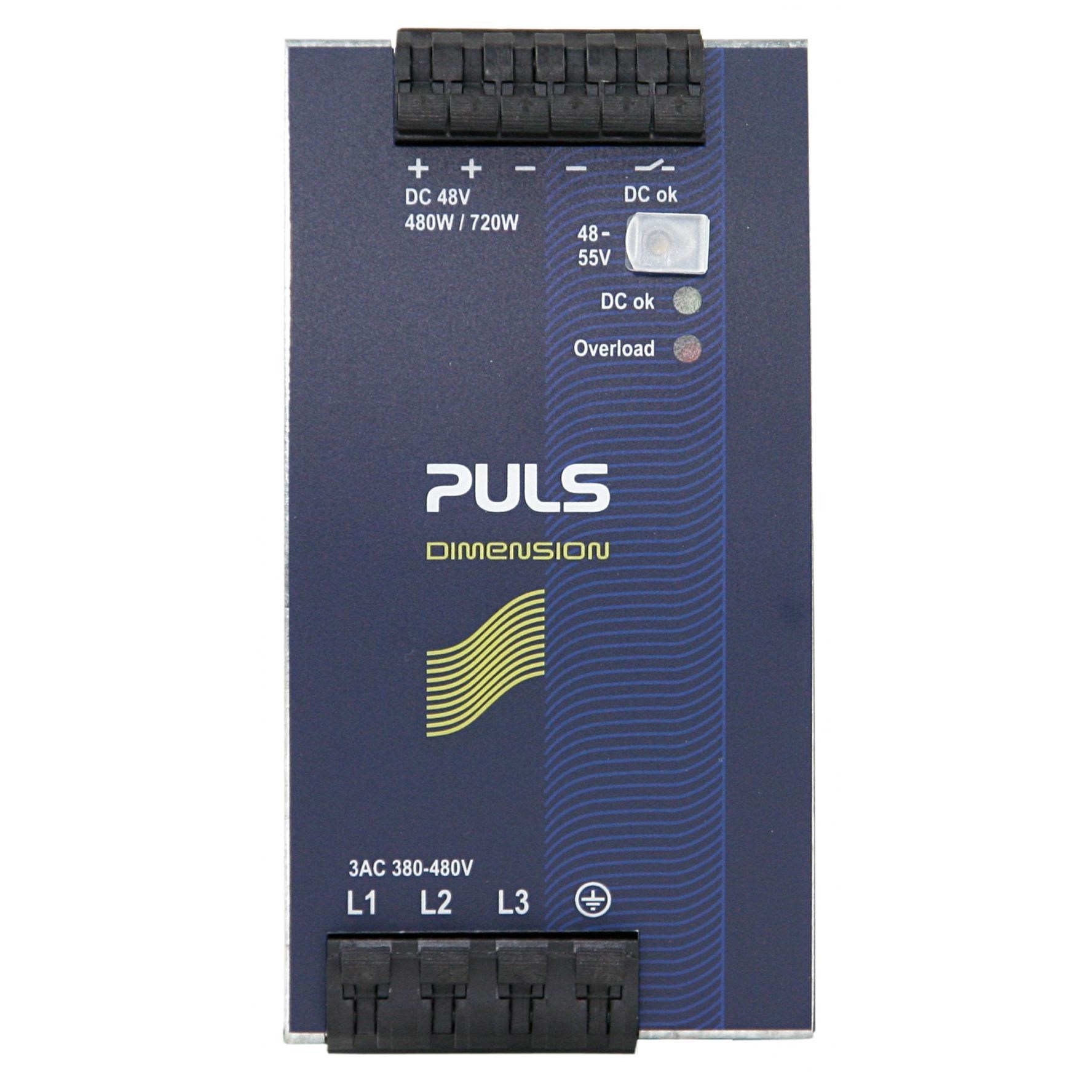

Puls QT20.481 Power Supply 3PH 380-480VAC 48VDC 10A 480 Watt 23.1 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QT20.481

  • Three-phase, 10 A current rating
  • Wide voltage range: 380-480 VAC, 48 VDC
  • High efficiency at 95.4%
  • Compact size: 65x124x127 mm
  • IP20 protection with DIN rail mount
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
380-480V AC
Output Current - Nominal
10A
Output Current - Range
10A to 8.7A
Output Power
480W
Output Voltage - Nominal
48V
Output Voltage - Range
48V to 55V
Efficiency
95.4 / 95.0%
Terminal Type
Spring clamps

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.87kg
Width
65mm

Environmental

Approvals / Conformity
UL 508, UL 60950-1, 2nd Edition, ANSI / ISA 12.12.01-2007(Class I Div 2), Marine (ABS), EAC TR, EC, IEC 60950-1 2nd Edition
Operating Temperature
-25°C to 70°C
IP Rating
IP20
