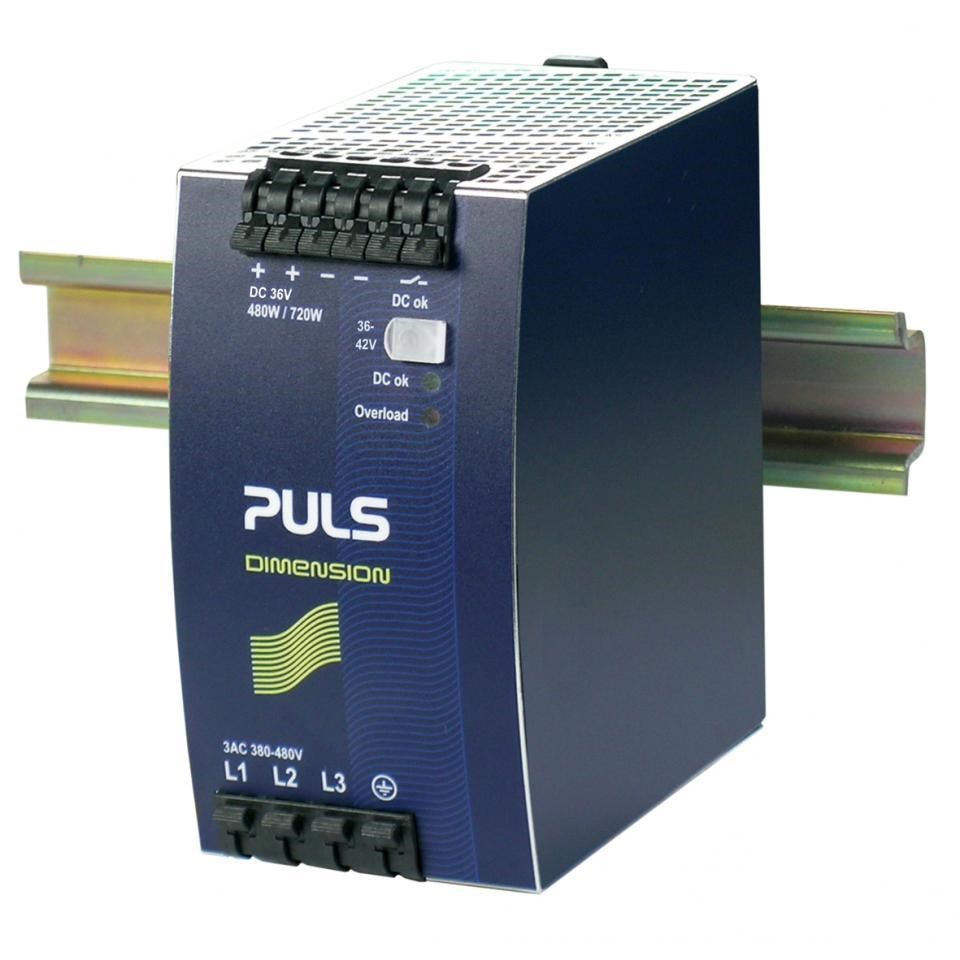

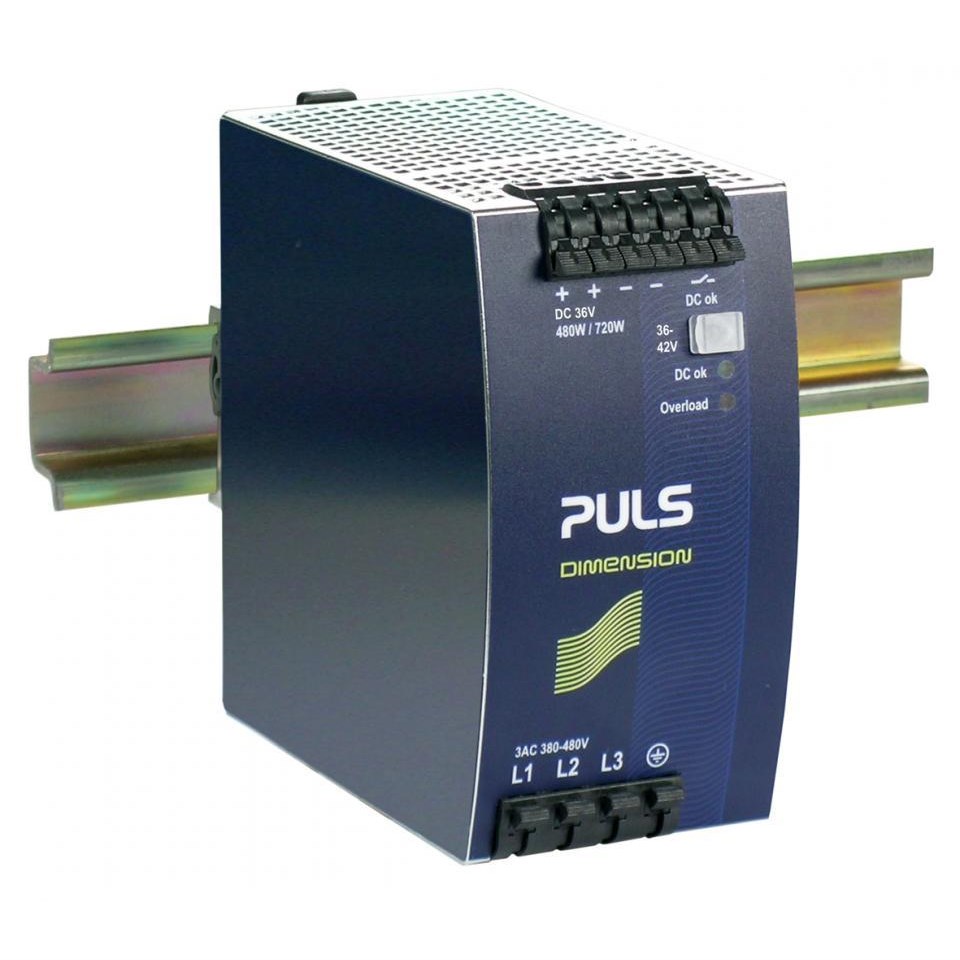

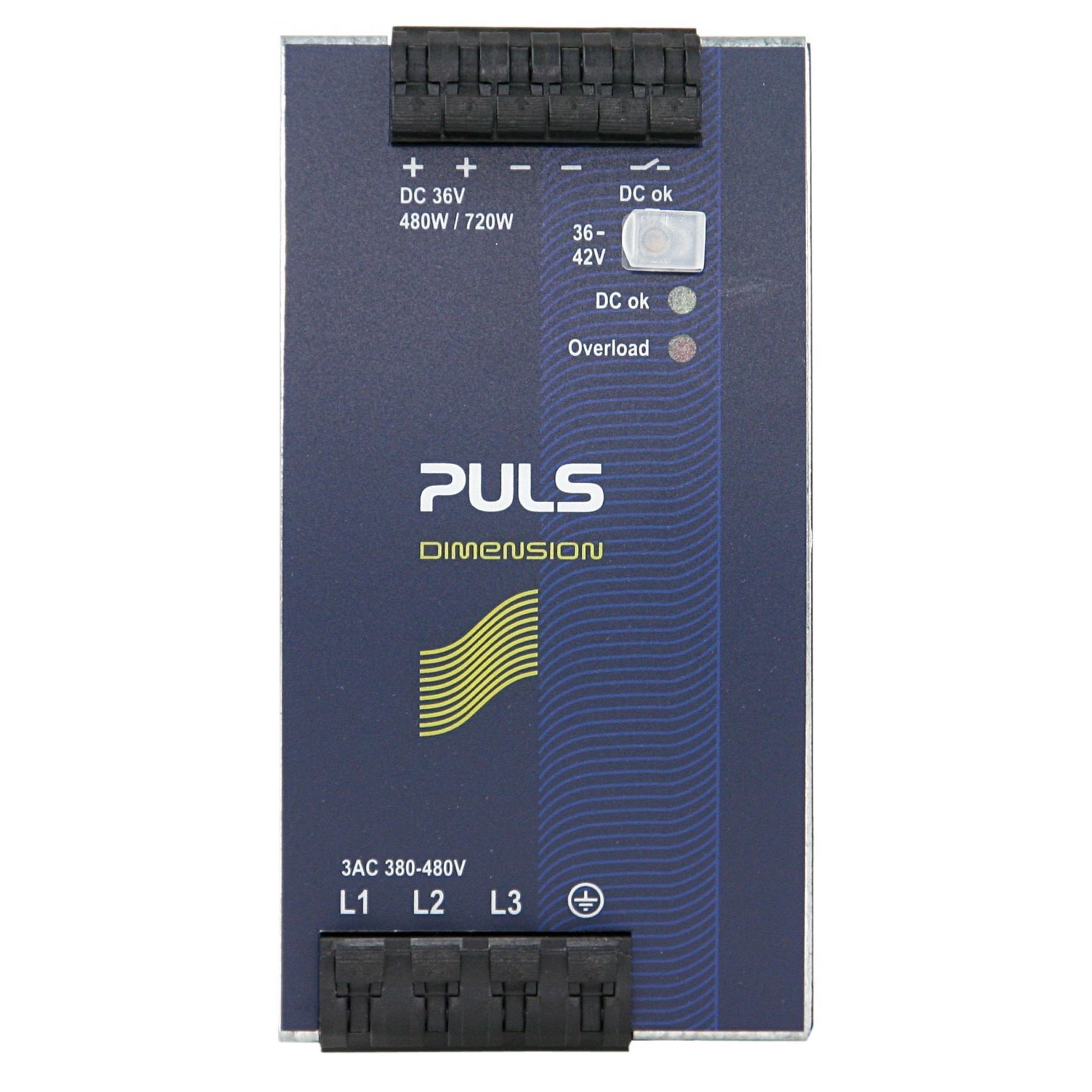

Puls QT20.361 Power Supply 3PH 380-480VAC 36VDC 13.3A 480 Watt 26.3 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QT20.361

  • Three-phase power with 94.8% efficiency
  • Compact size: 65x124x127 mm, weight 870 g
  • Wide-range input: 380-480 VAC, 36 VDC
  • Spring clamp connections for secure fit
  • DIN rail mounting and IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
380-480 V AC
Output Current - Nominal
13.3A
Output Current - Range
13.3A to 11.4A
Output Power
480W
Output Voltage - Nominal
36V DC
Output Voltage - Range
36V to 42V DC
Efficiency
94.8 / 94.6% at 3x400 / 480Vac
Terminal Type
Quick-connect spring-clamp terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.87kg
Width
65mm

Environmental

Operating Temperature
-25°C to 70°C
