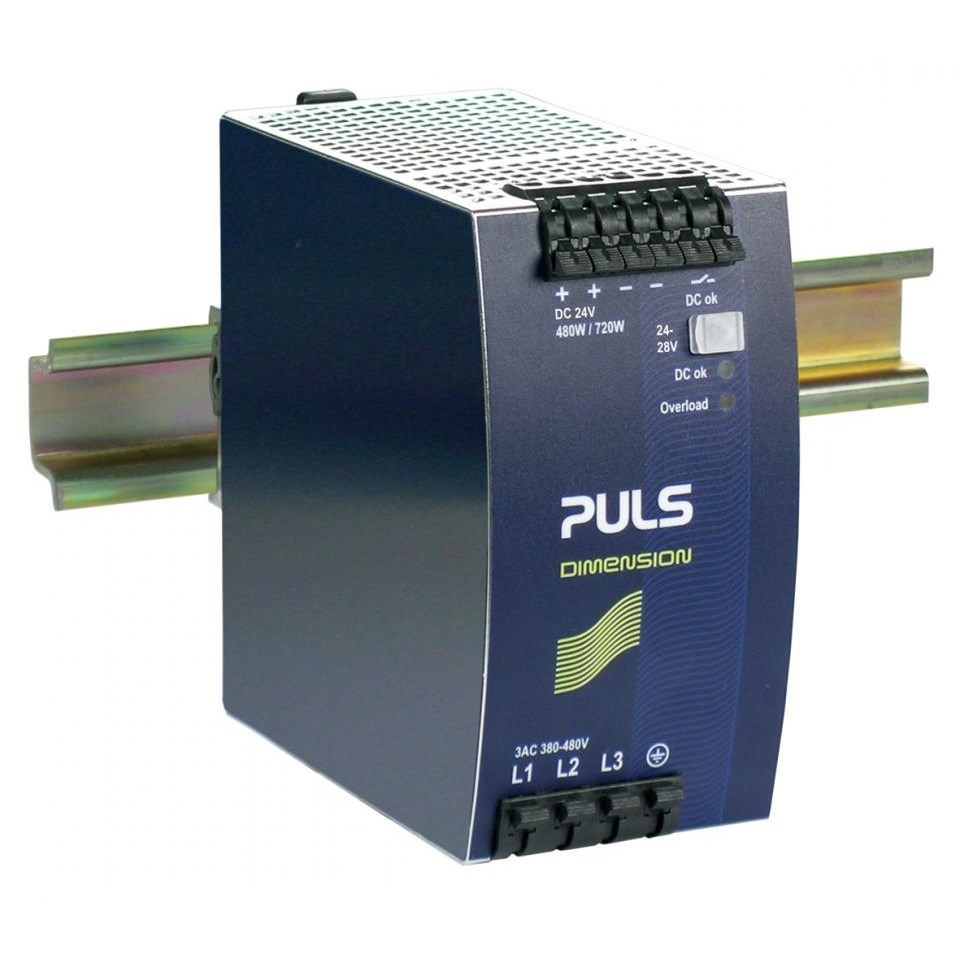

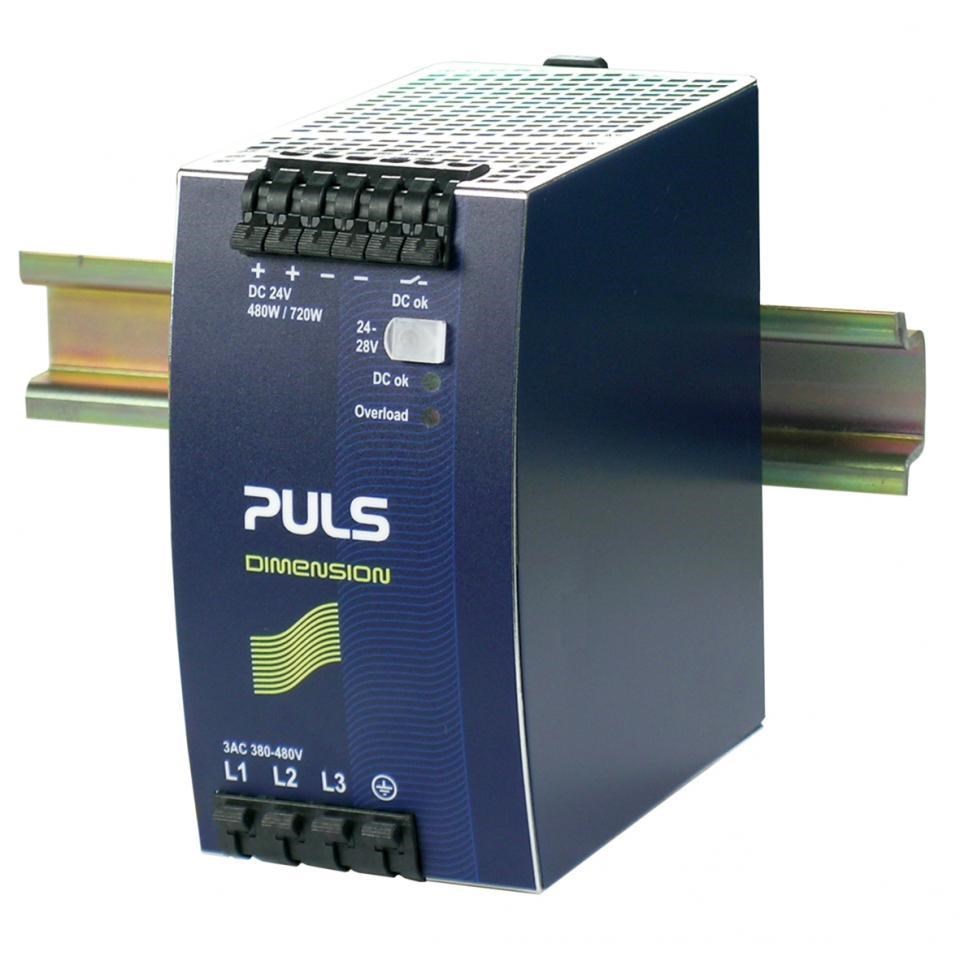

Puls QT20.241 Power Supply 3PH 380-480VAC 24VDC 20A 480 Watt 25.3 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QT20.241

  • Three-phase, 20 A rated current
  • Wide-range input: 380-480 VAC, 24 VDC
  • Active inrush current limitation
  • High efficiency at 95%
  • Spring clamp connection for easy install
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
380-480V AC
Output Current - Nominal
20A
Output Current - Range
20A to 17.5A
Output Power
480W
Output Voltage - Nominal
24V
Output Voltage - Range
24V to 28V
Efficiency
95.0 / 94.8%
Terminal Type
Spring clamps

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.87kg
Width
65mm

Environmental

Approvals / Conformity
UL 508, UL 60950-1, 2nd Edition, ANSI / ISA 12.12.01-2007(Class I Div 2), SEMI F47, Marine (ABS), EAC TR, EC, IEC 60950-1 2nd Edition
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
