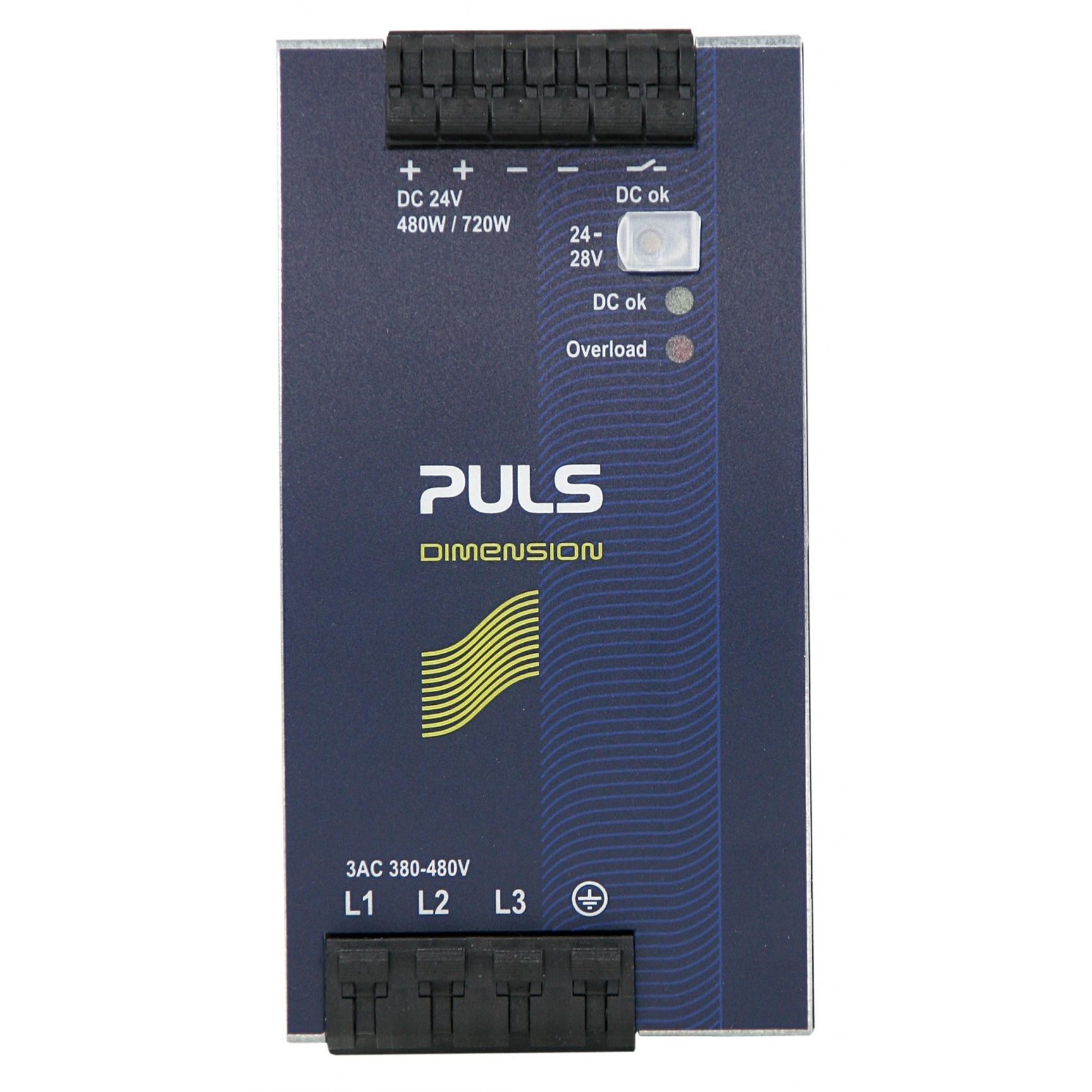

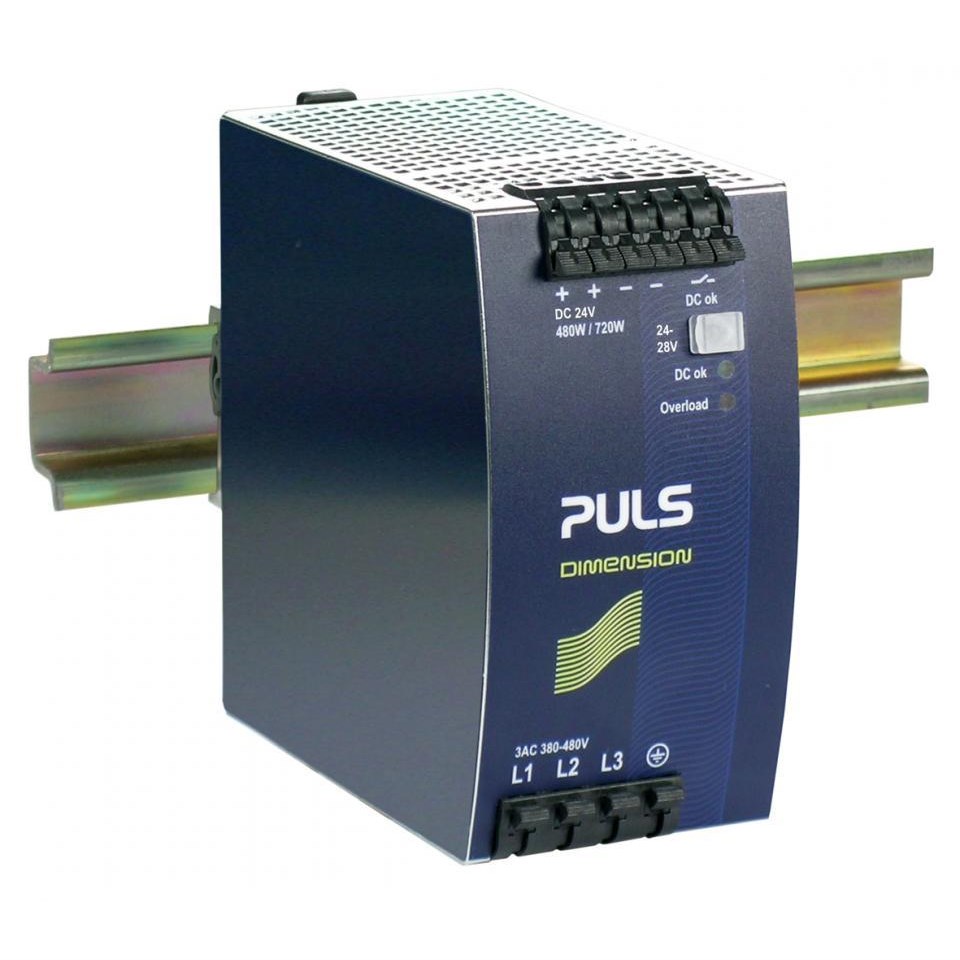

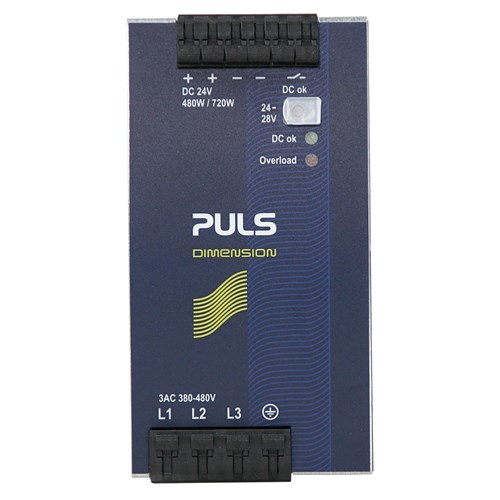

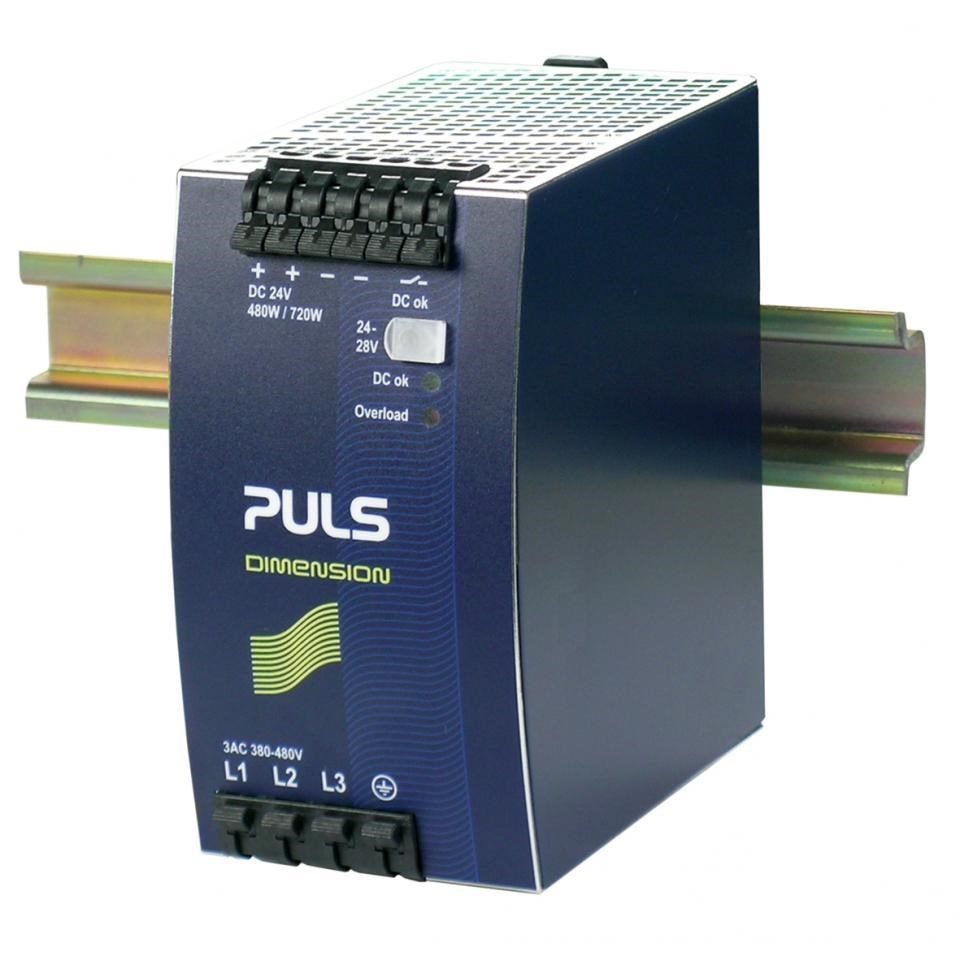

Puls QT20.241-C1 Power Supply 3PH 380-480VAC 24VDC 20A 480 Watt 25.3 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QT20.241-C1

  • Rated for 20 A, 380-480 VAC, and 24 VDC
  • High efficiency of 95%
  • Compact dimensions: W65 x H124 x D127 mm
  • IP20 protection with DIN Rail mount
  • Active harmonic correction and inrush current limit
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
380-480 V AC
Output Current - Nominal
20A
Output Current - Range
20A to 17.5A
Output Power
480W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
95.0 / 94.8% at 3x400 / 480Vac
Terminal Type
Quick-connect spring-clamp terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.87kg
Width
65mm

Environmental

Operating Temperature
-25°C to 70°C
Conformal Coated
Yes
