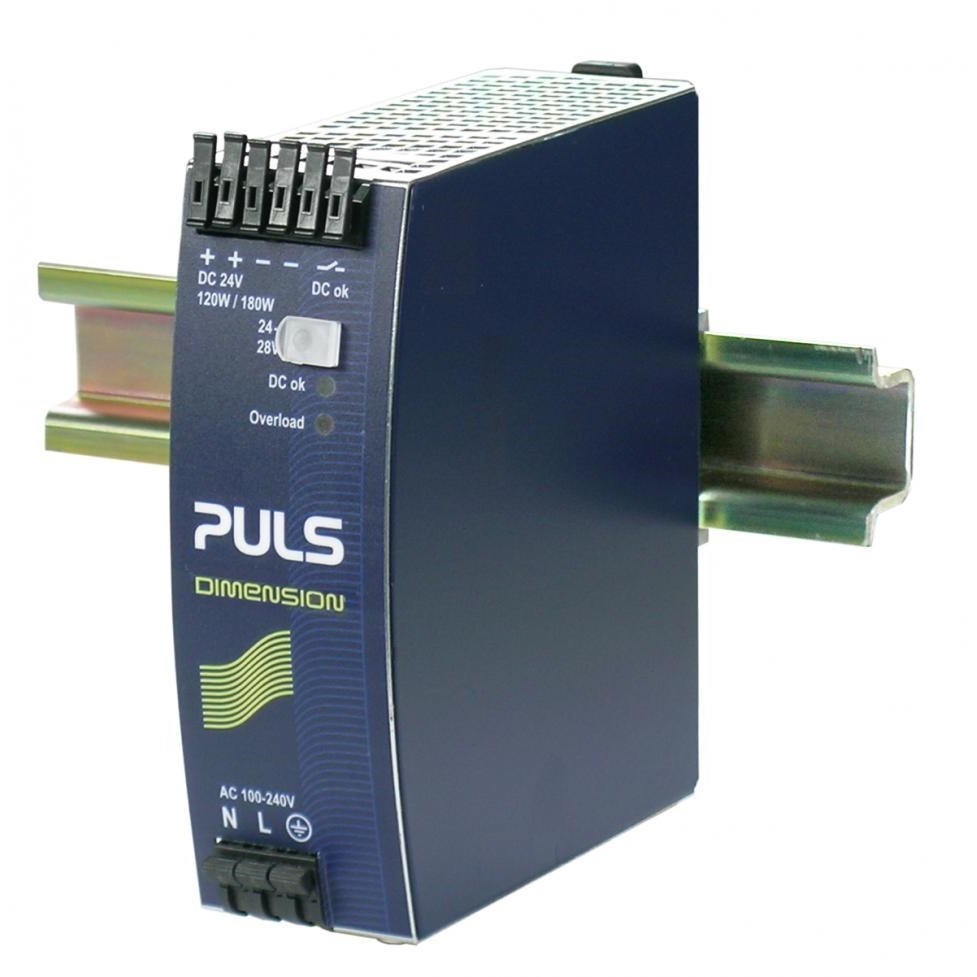

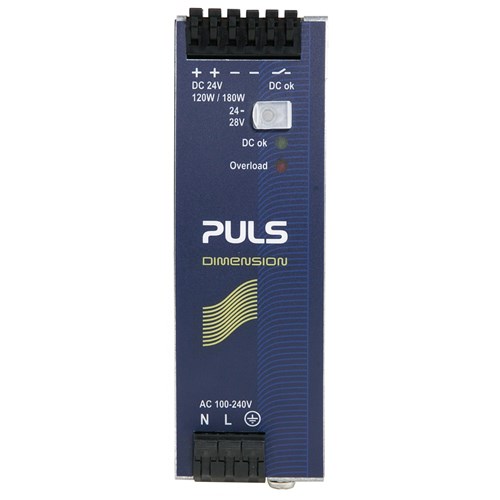

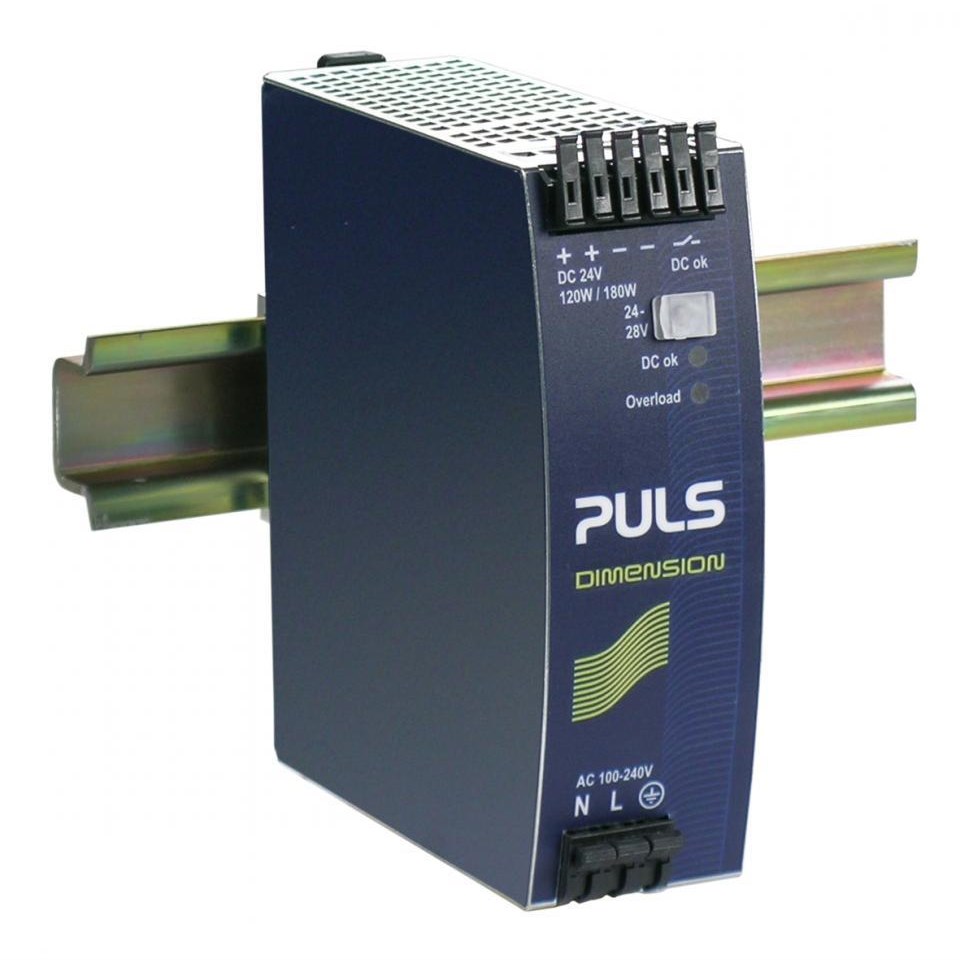

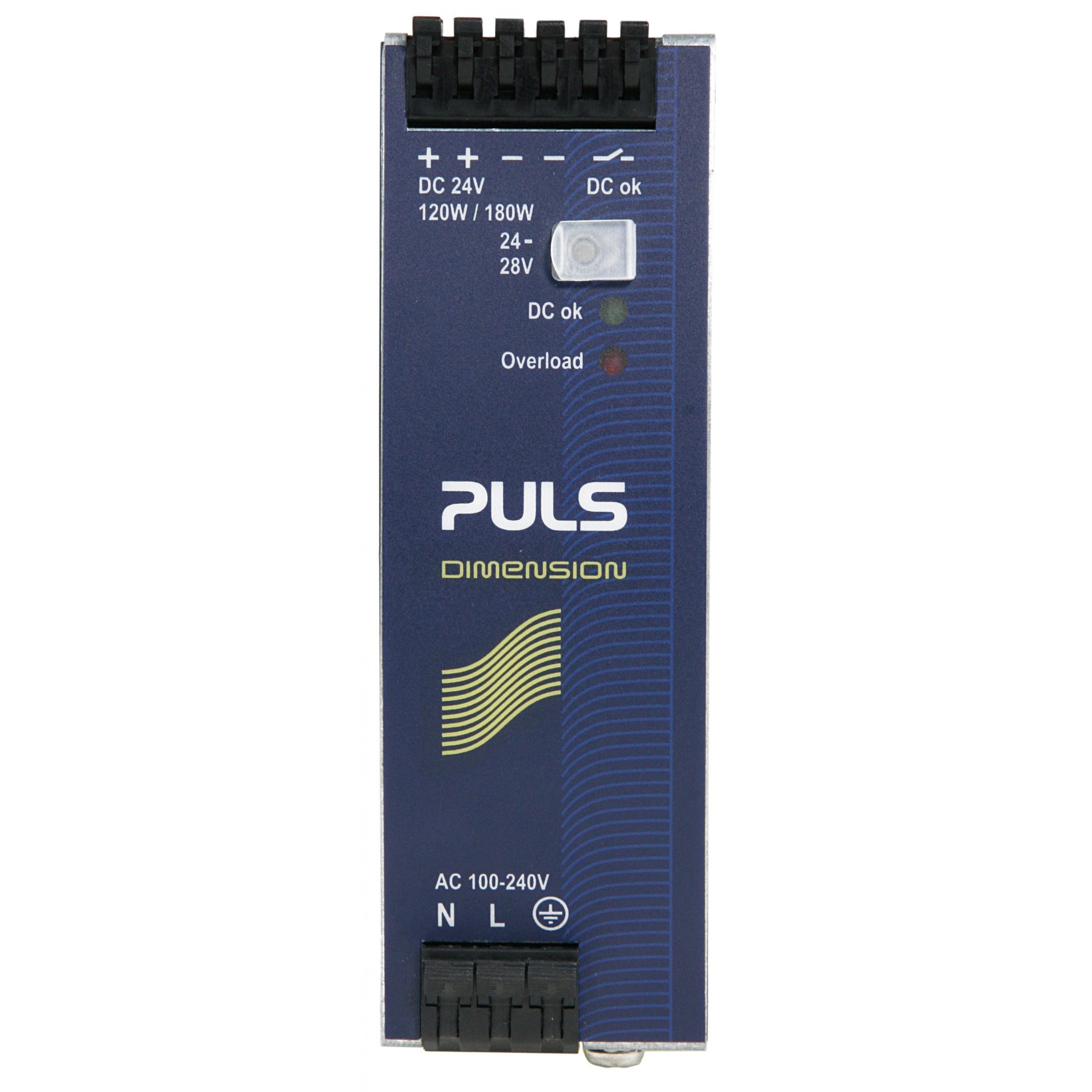

Puls QS5.241 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt 9.4 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS5.241

  • Single-phase, 120W power supply
  • Wide input voltage range: 110-300 VDC, 24 VDC
  • High efficiency at 92.7%
  • Active inrush current limitation
  • Spring clamp connection for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
DIN rail power supplies
Brand
PULS
Series
Q-Series

Electrical

Input Voltage AC
100 - 240 V
Input Voltage DC
110 V - 300 V
Output Current - Nominal
5A
Output Current - Range
5 – 4.5A
Output Power
120 W
Output Voltage - Nominal
24V
Output Voltage - Range
24 - 28V
Efficiency
91.6 / 92.7%
Terminal Type
Spring clamps

Mechanical

Mounting Style
DIN rail

Dimensions

Depth
117mm
Height
124mm
Weight
620g
Width
40 mm

Environmental

Approvals / Conformity
UL 508,IEC 61010-2-201,IEC 60950-1,IEC 62368,UL 60950-1,Marine (DNV),Marine (ABS),IEC 60068-2-60,ISA-71.04 G3,VDMA 24364,SEMI F47,CE,REACH,WEEE,EAC TR
Operating Temperature
-25 °C to 70 °C
IP Rating
IP20

Documents

IPD Product Catalogue V17
