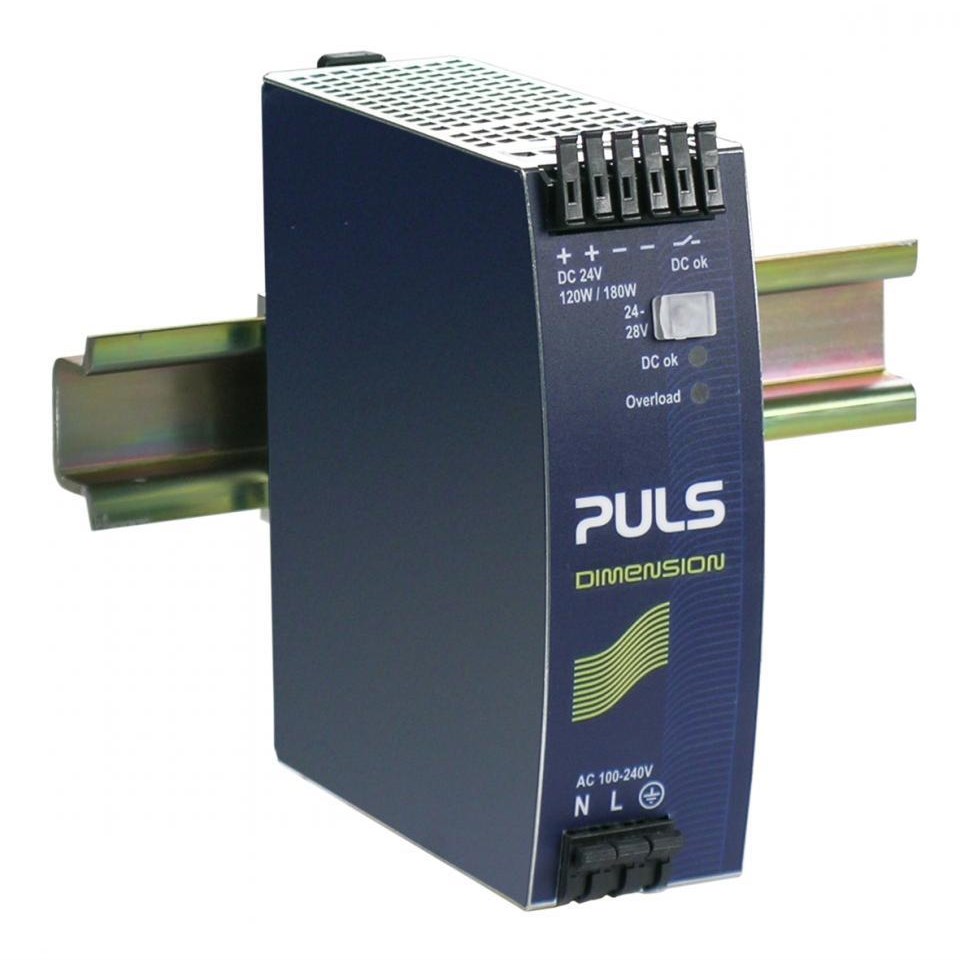

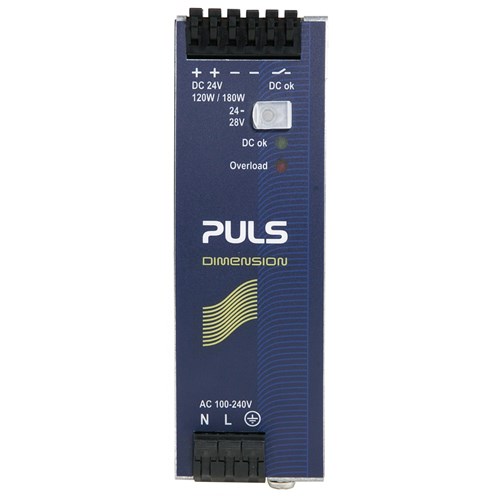

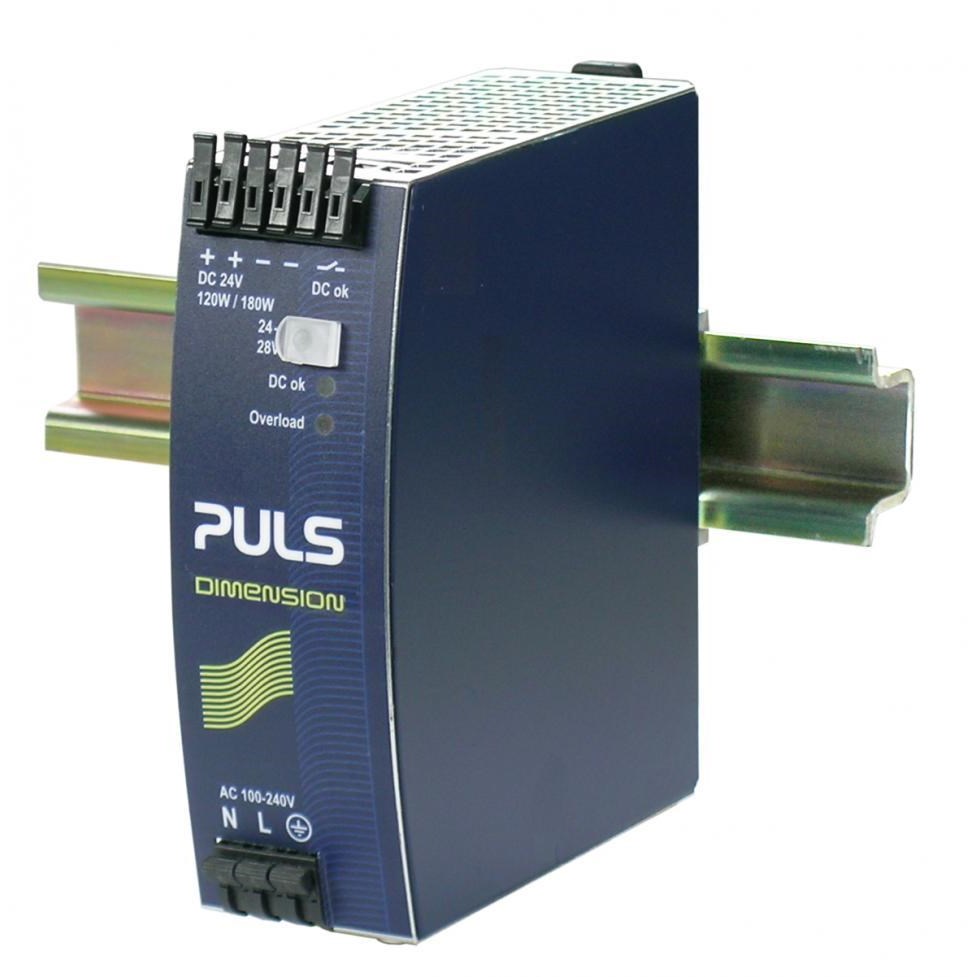

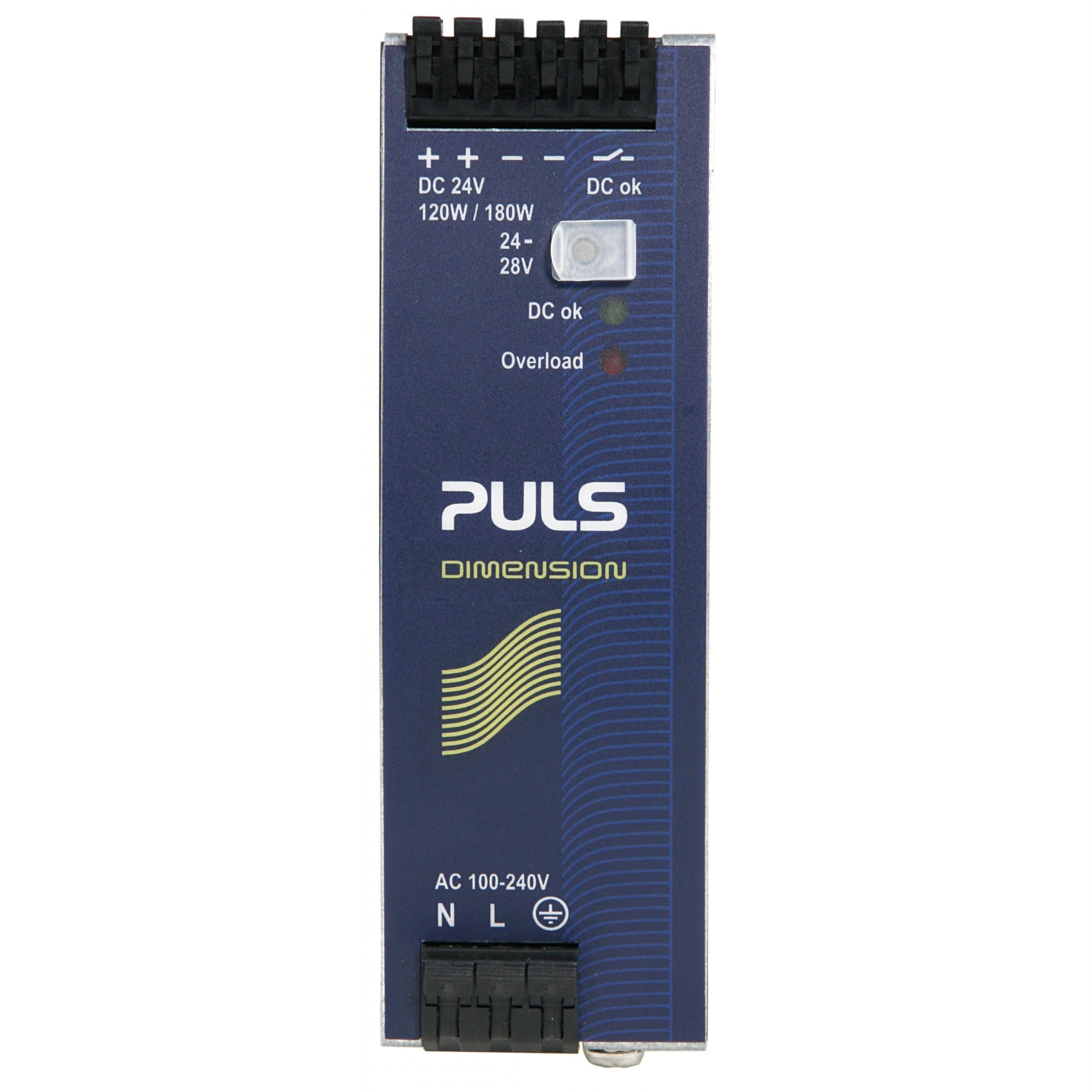

Puls QS5.241-A1 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt 9.4 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS5.241-A1

  • Single-phase, 5 A rated current
  • Wide-range input: 110-300 VDC, 24 VDC
  • High efficiency at 92.7%
  • Compact size: 40x124x117 mm
  • Spring clamp connection for easy install
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
100-240 V AC / 110-300 V DC
Output Current - Nominal
0.2083333333
Output Current - Range
5 – 4.5 A
Output Power
120 W
Output Voltage - Nominal
24 Vdc
Output Voltage - Range
24 - 28 Vdc
Efficiency
91.6 / 92.7% at 120 / 230Vac
Terminal Type
Spring-clamp

Dimensions & Physical Data

Depth
117 mm
Height
124 mm
Weight
620 g
Width
40 mm

Environmental

Operating Temperature
-25 °C to 70 °C
