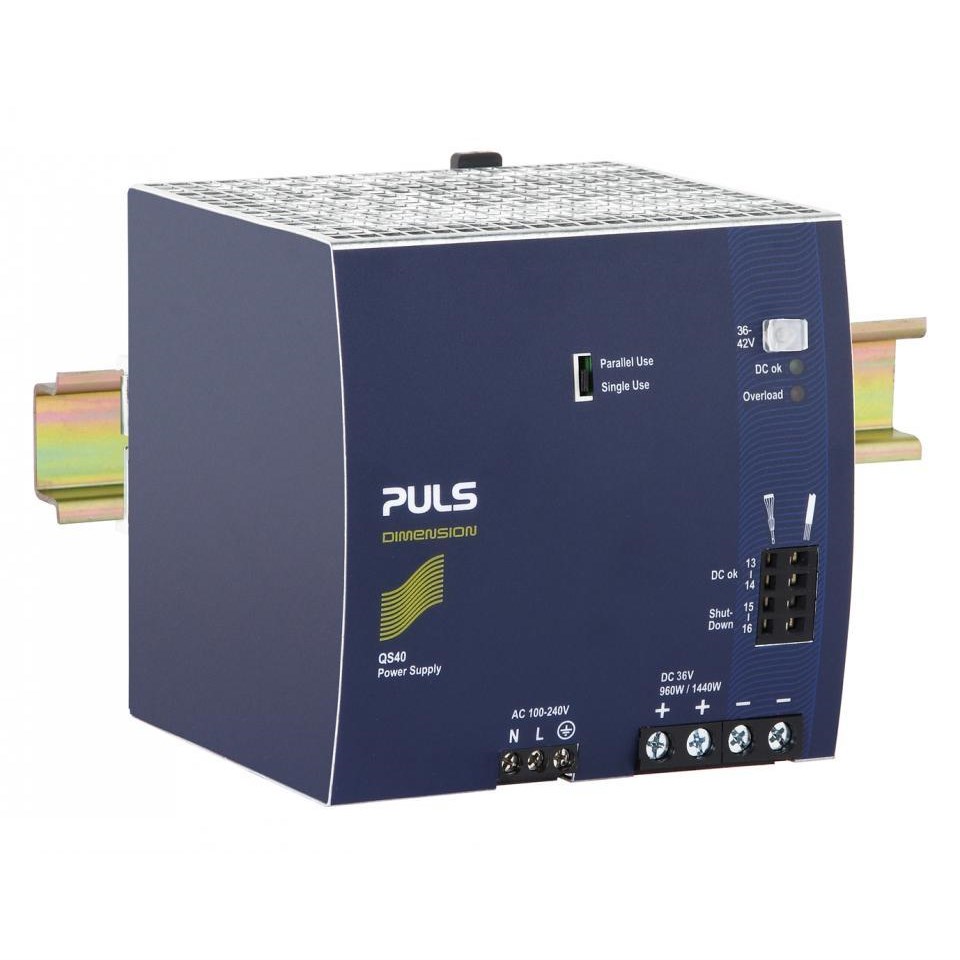

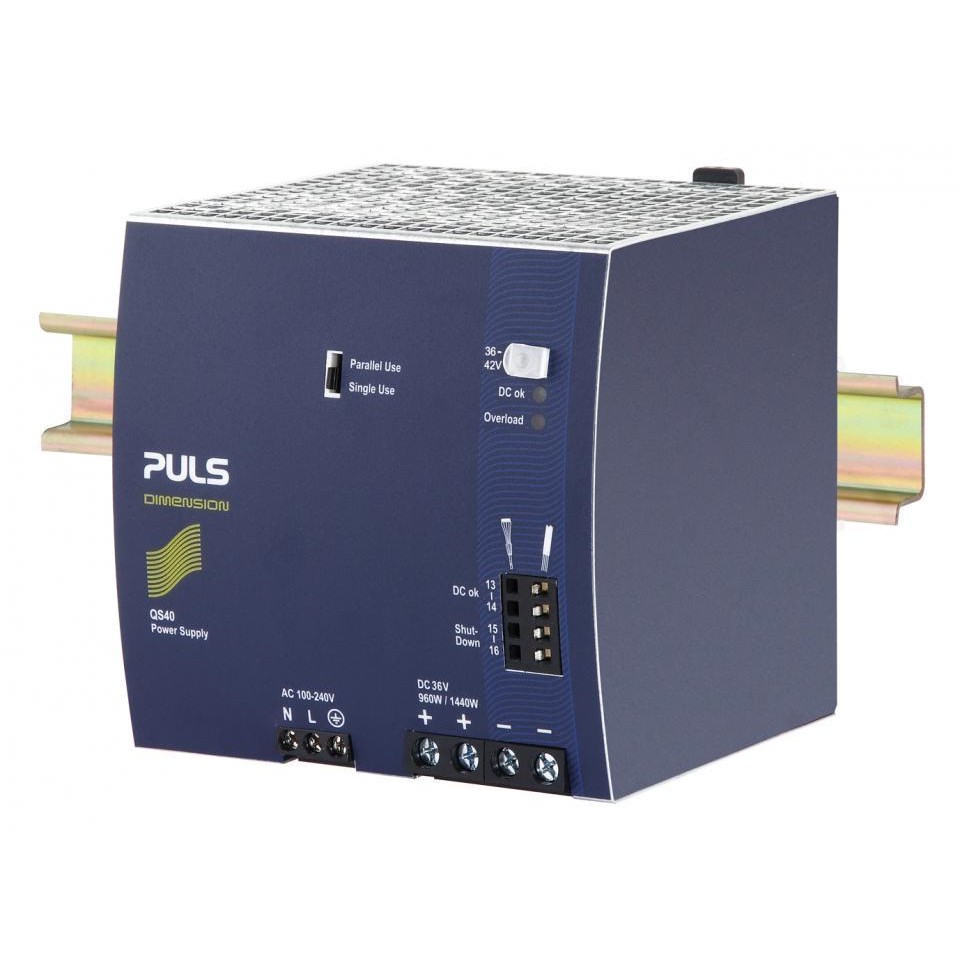

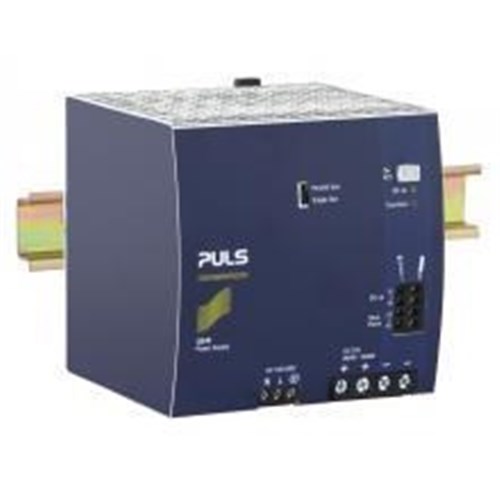

Puls QS40.361 Power Supply 1PH 100-240VAC 36VDC 26.7A 960 Watt 54.8 Watt DIN Rail Mount Screw Terminal IP20

Product Code: QS40.361

  • Single-phase, 26.7 A rated current
  • Wide-range input: 100-240 VAC, 36 VDC
  • High efficiency at 94.6%
  • DIN rail mounting with screw terminals
  • ATEX and IECEx certified for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
100-240 V AC
Output Current - Nominal
26.7A
Output Current - Range
26.7A to 22.9A
Output Power
960W
Output Voltage - Nominal
36V DC
Output Voltage - Range
36V to 42V DC
Efficiency
93.5 / 94.6% at 120 / 230Vac
Terminal Type
Screw Terminals

Mechanical

Housing Material
Aluminium body, Steel cover

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.9kg
Width
125mm

Environmental

Operating Temperature
-25°C to 70°C
