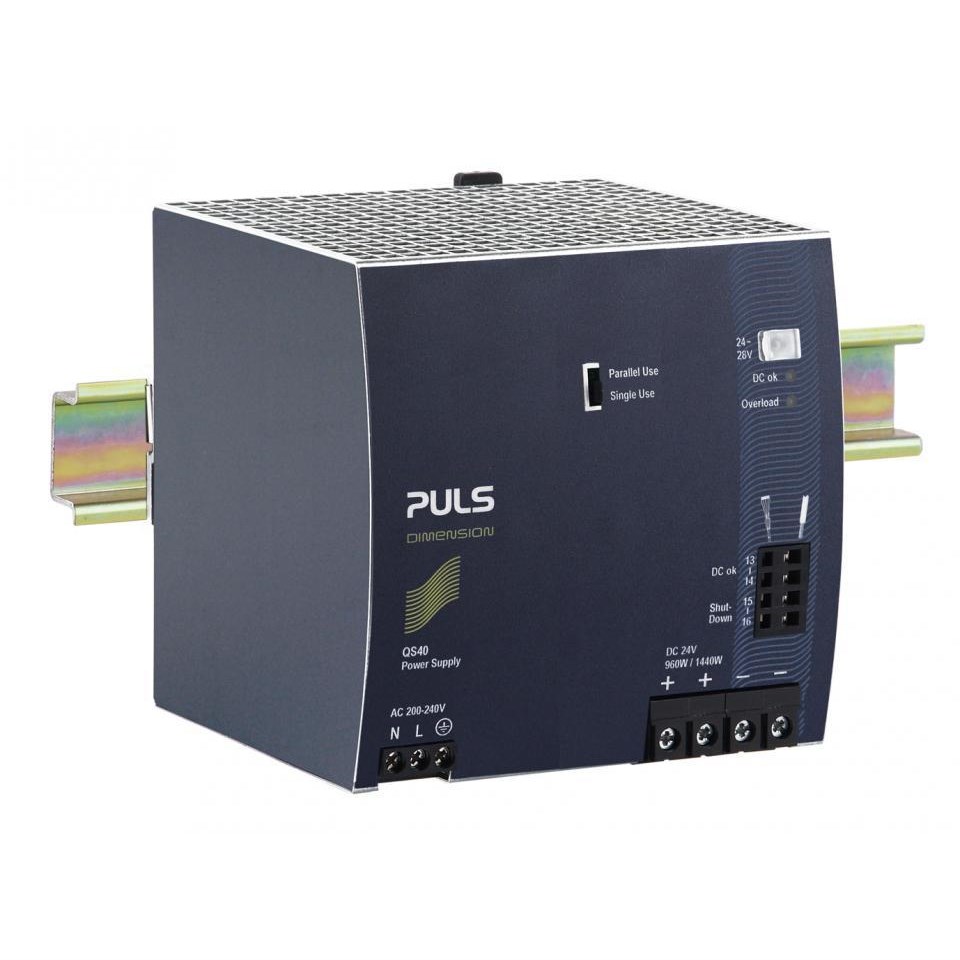

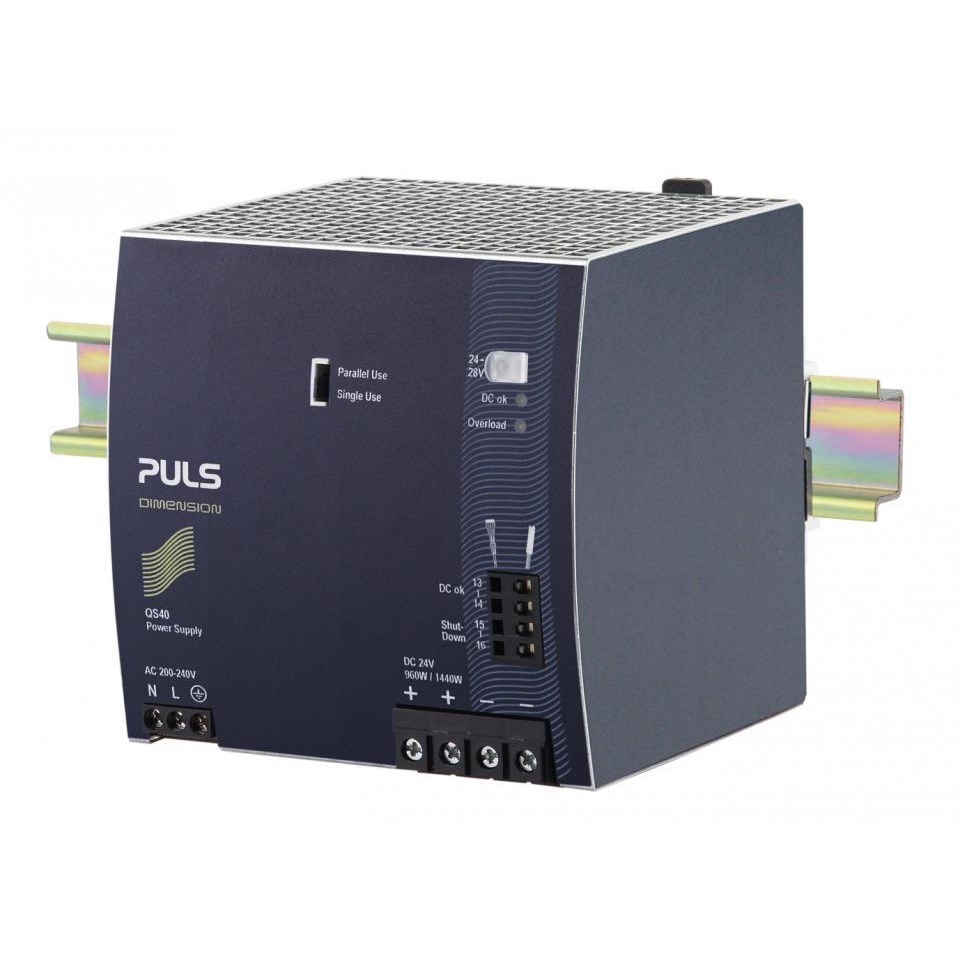

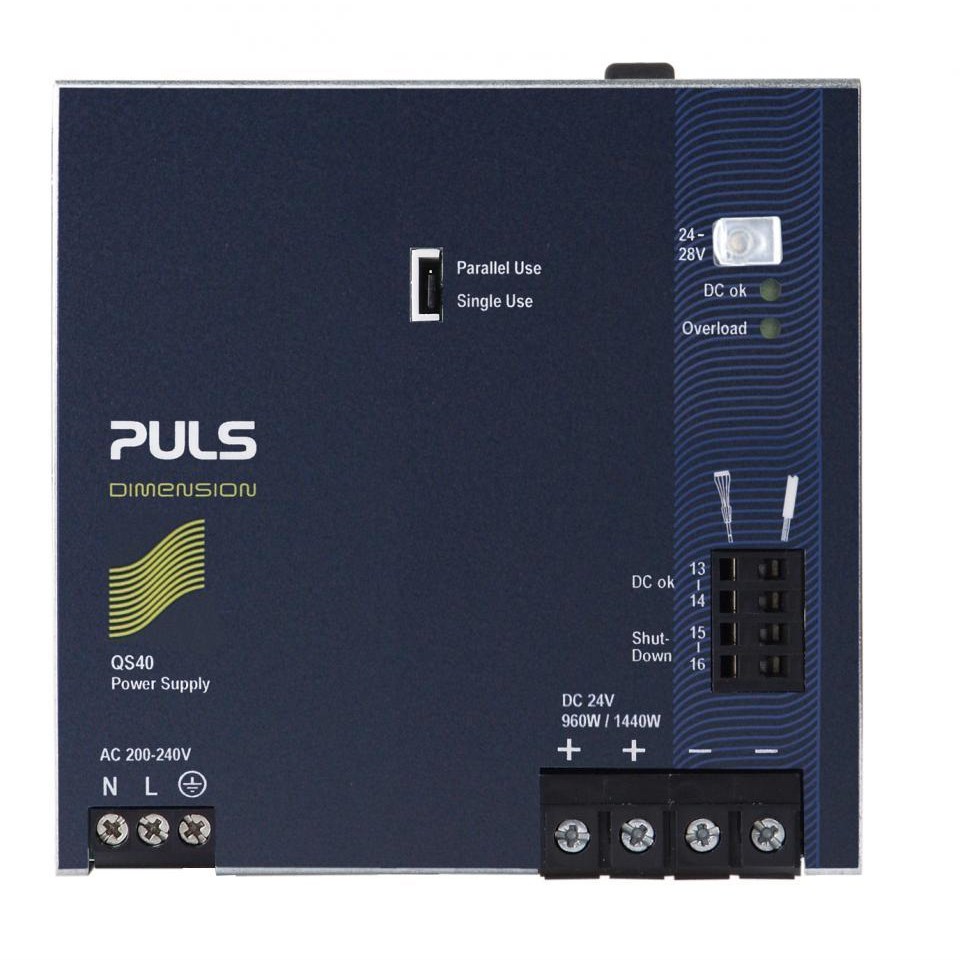

Puls QS40.244 Power Supply 1PH 200-240VAC 24VDC 40A 960 Watt 54.8 Watt DIN Rail Mount Screw Terminal IP20

Product Code: QS40.244

  • Single-phase, 40 A rated current
  • Wide voltage range: 200-240 VAC, 24 VDC
  • High efficiency at 94.6%
  • Active harmonic correction & inrush limitation
  • DIN rail mount with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
200 -240 V AC
Output Current - Nominal
40A
Output Current - Range
40A to 34.3A
Output Power
960W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
94.6% at 230Vac
Terminal Type
Screw Terminals

Mechanical

Housing Material
Aluminium body, Steel cover

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.8kg
Width
125mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
