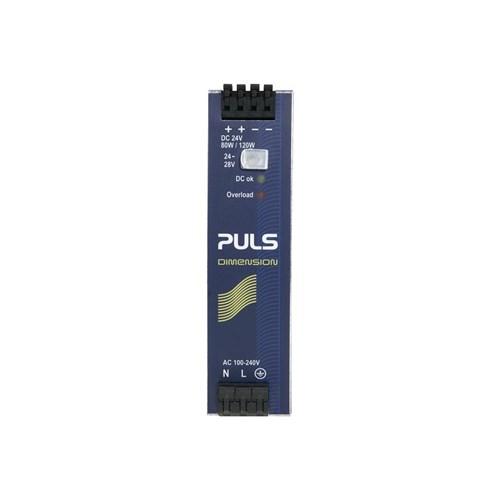

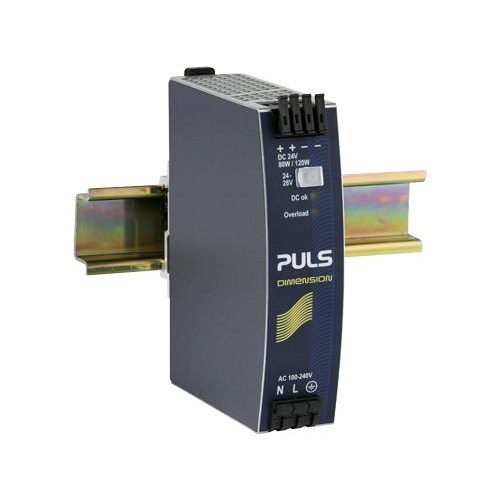

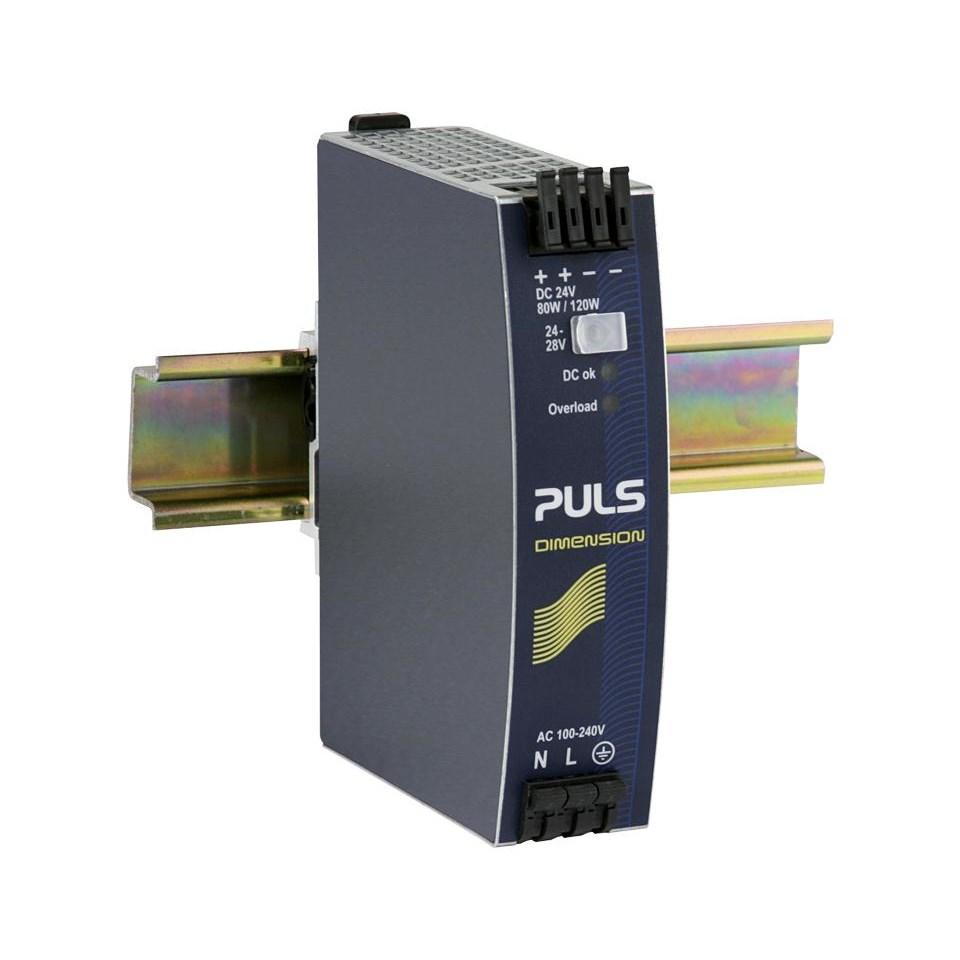

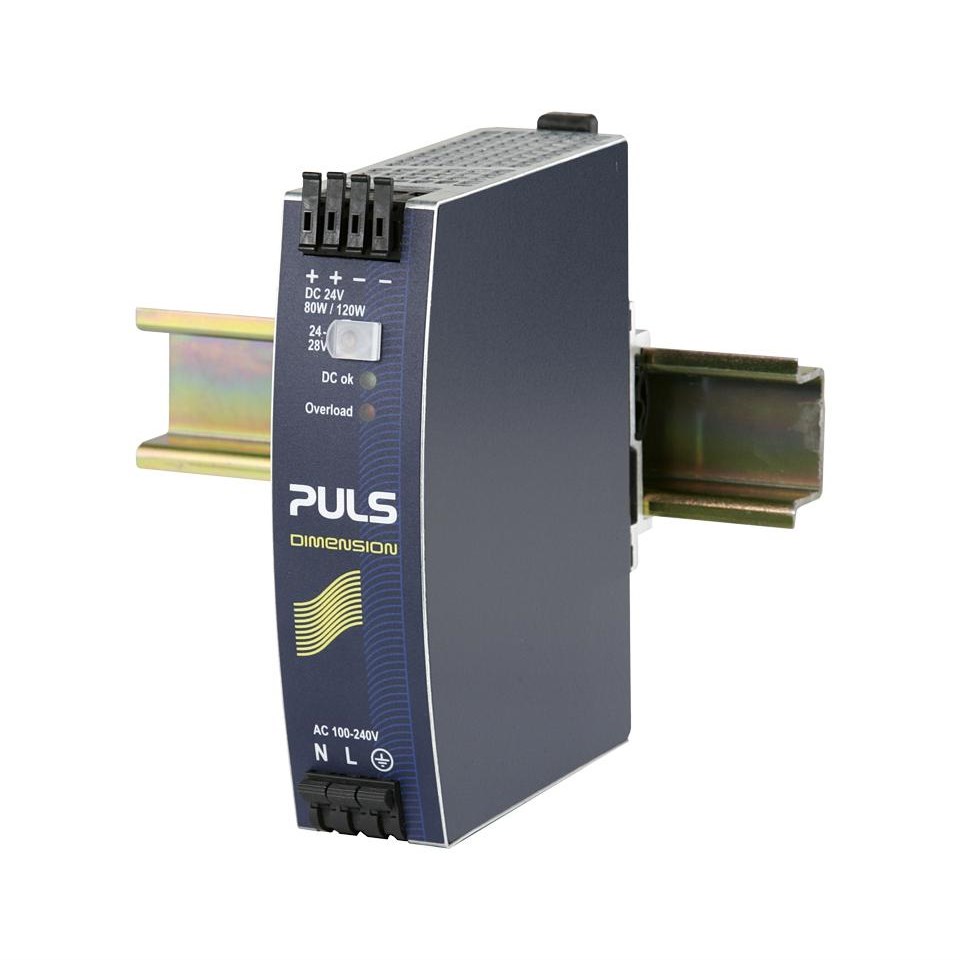

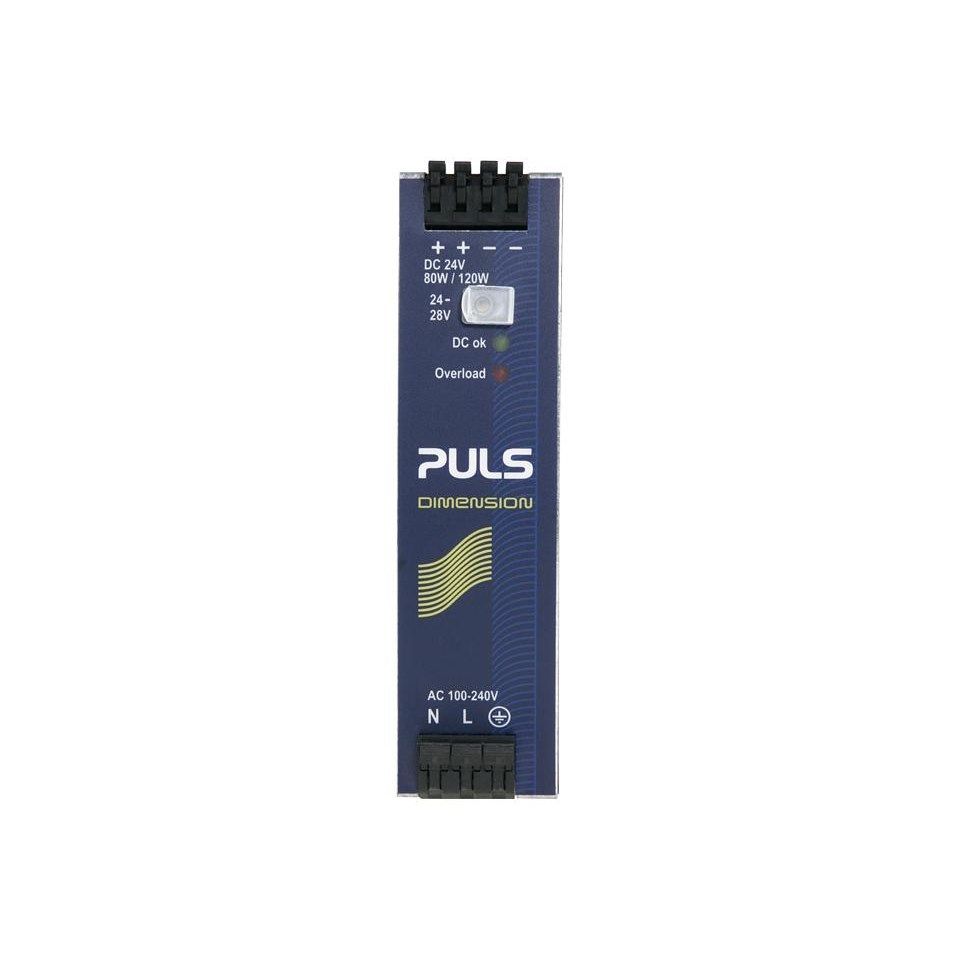

Puls QS3.241 Power Supply 1PH 110-300VDC 24VDC 3.4A 80 Watt 9.1 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS3.241

  • Single-phase, 80W power supply
  • Wide-range input: 110-300 VDC, 24 VDC
  • High efficiency at 90%
  • Spring clamp connections for easy install
  • DIN rail mountable with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
100-240 V AC / 110-150 V DC
Output Current - Nominal
3.4A
Output Current - Range
3.4A to 3A
Output Power
80W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
88.7 / 90.0% at 120 / 230Vac
Terminal Type
Spring-clamp

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.44kg
Width
32mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
