Products

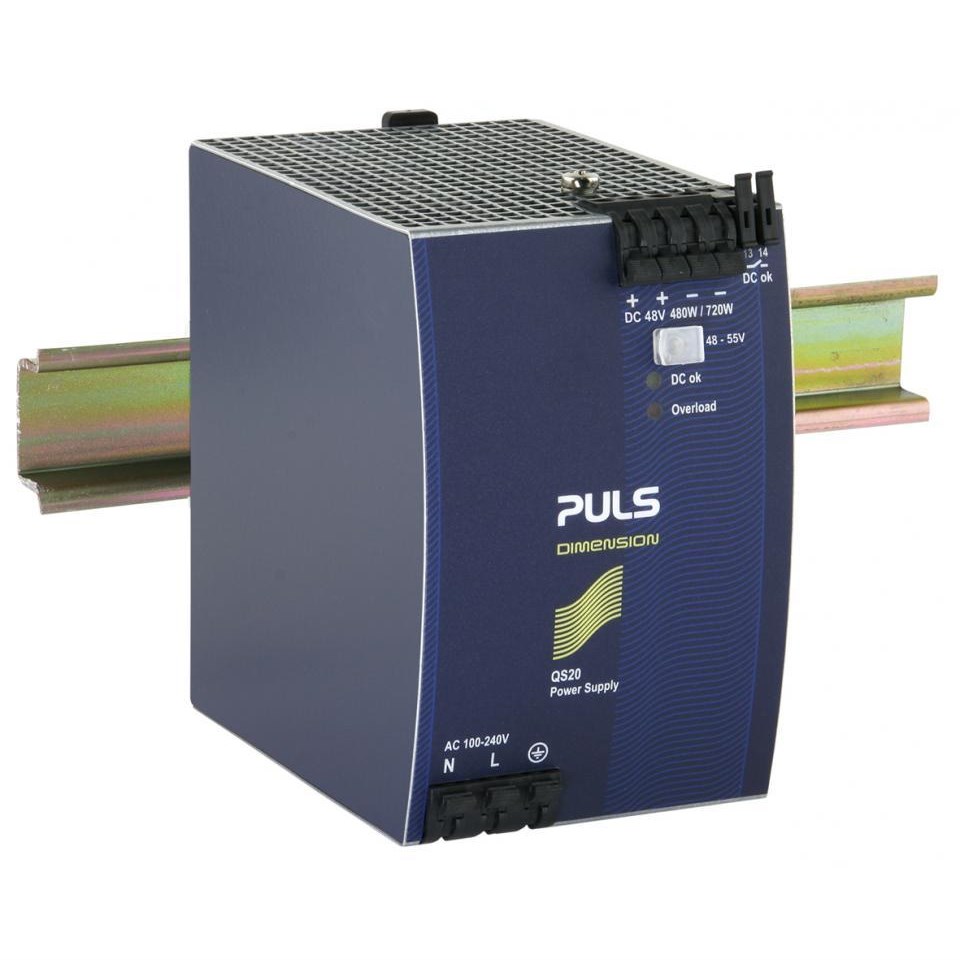

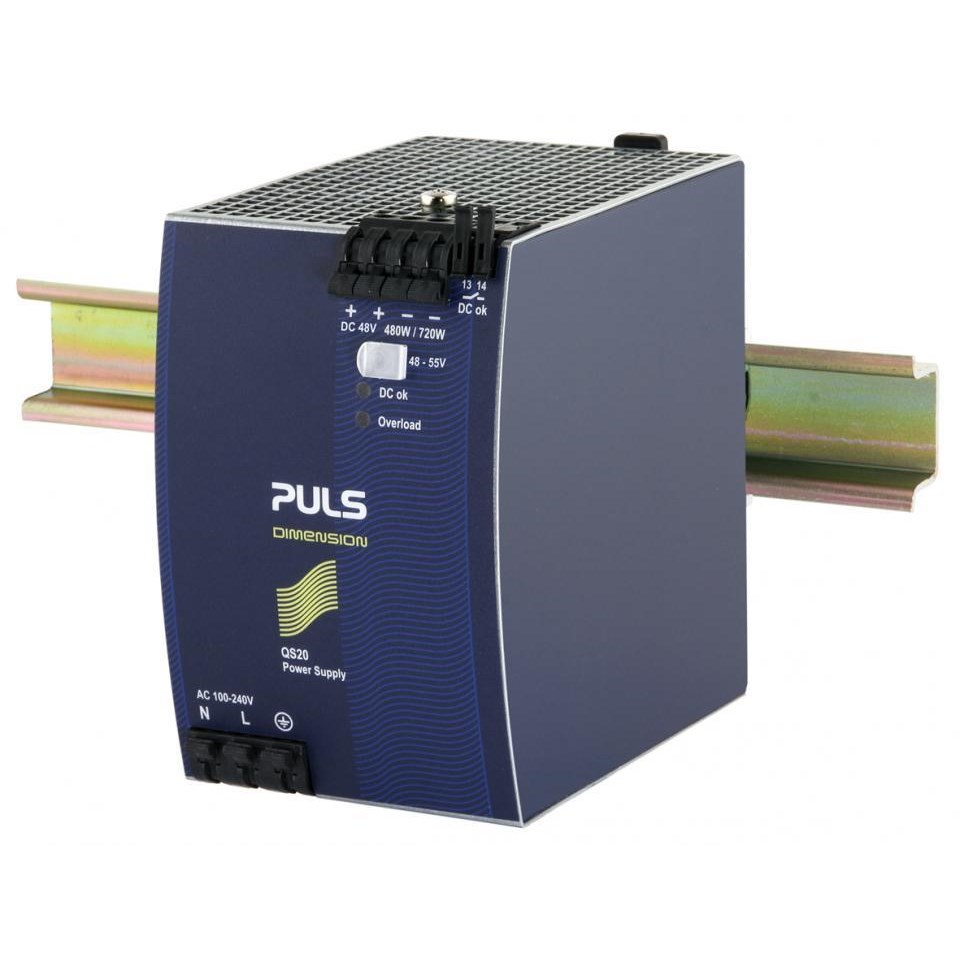

Puls QS20.481 Power Supply 1PH 110-150VDC 48VDC 10A 480 Watt 29 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS20.481

  • Single-phase with 10 A rated current
  • Wide-range input type for flexibility
  • High efficiency at 94.3%
  • IP20 protection, DIN rail mountable
  • Active inrush current limitation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
DIN rail power supplies
Brand
PULS
Series
Q-Series

Electrical

Input Voltage AC
100 - 240 V
Input Voltage DC
110 V - 150 V
Output Current - Nominal
10A
Output Current - Range
10 - 8.7 A
Output Power
480 W
Output Voltage - Nominal
48V
Output Voltage - Range
48 - 55V
Efficiency
92.8 / 94.3%
Terminal Type
Spring clamps

Mechanical

Mounting Style
DIN rail

Dimensions

Depth
127mm
Height
124mm
Weight
1200g
Width
82mm

Environmental

Approvals / Conformity
UL 508,IEC 61010-2-201,IEC 60950-1,IEC 62368,UL 60950-1,Class 1 Div 2,Marine (DNV),Marine (ABS),IEC 60068-2-60,ISA-71.04-1985,VDMA 24364,CE,REACH,WEEE,KC
Operating Temperature
-25 °C to 70 °C
IP Rating
IP20

Documents

IPD Product Catalogue V17
