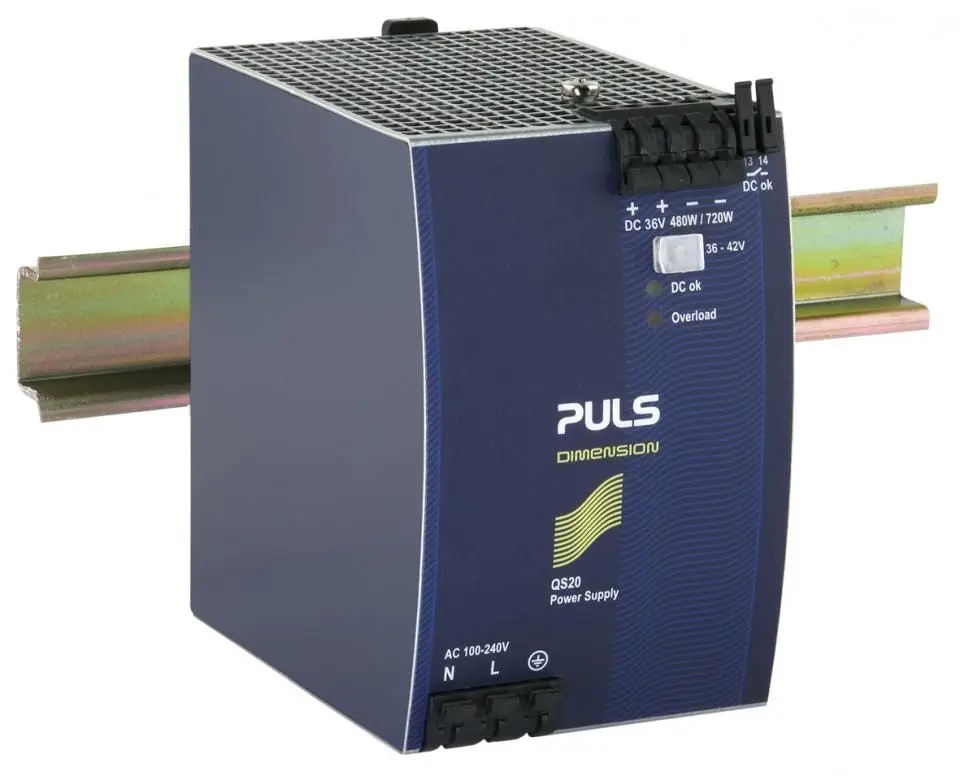

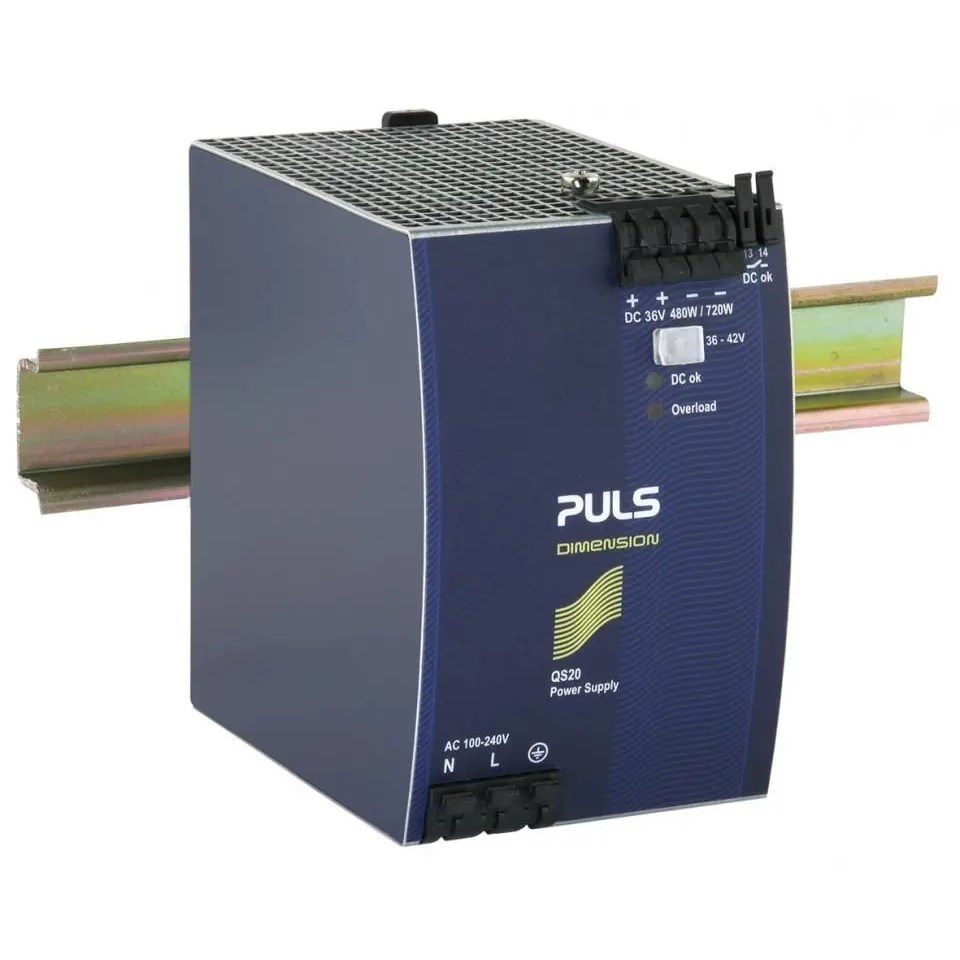

Puls QS20.361 Power Supply 1PH 100-240VAC 36-42VDC 13.3A 480 Watt DIN Rail Mount Spring Clamp

Product Code: QS20.361

  • Delivers 480W with 13.3A rated current.
  • Supports 100-240VAC and 36-42VDC inputs.
  • Compact design with dimensions of 88x124x127 mm.
  • Active harmonic correction for efficiency.
  • Spring clamp connections for easy installation.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
100 - 240 V AC / 110 V - 150 V DC
Output Current - Nominal
13.3A
Output Current - Range
13.3A to 11.4A
Output Power
480W
Output Voltage - Nominal
36V
Output Voltage - Range
36V to 42V
Efficiency
92.5 / 94.0%
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.2kg
Width
82mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, IEC 62368, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-6, ISA-71.04-1985, VDMA 24364, CE, REACH, WEEE
Operating Temperature
-25°C to 70°C
IP Rating
IP20
