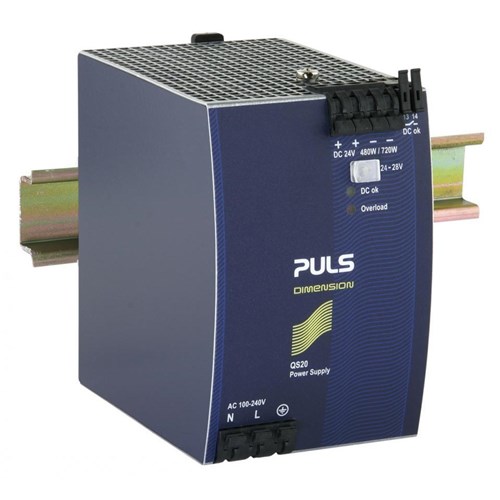

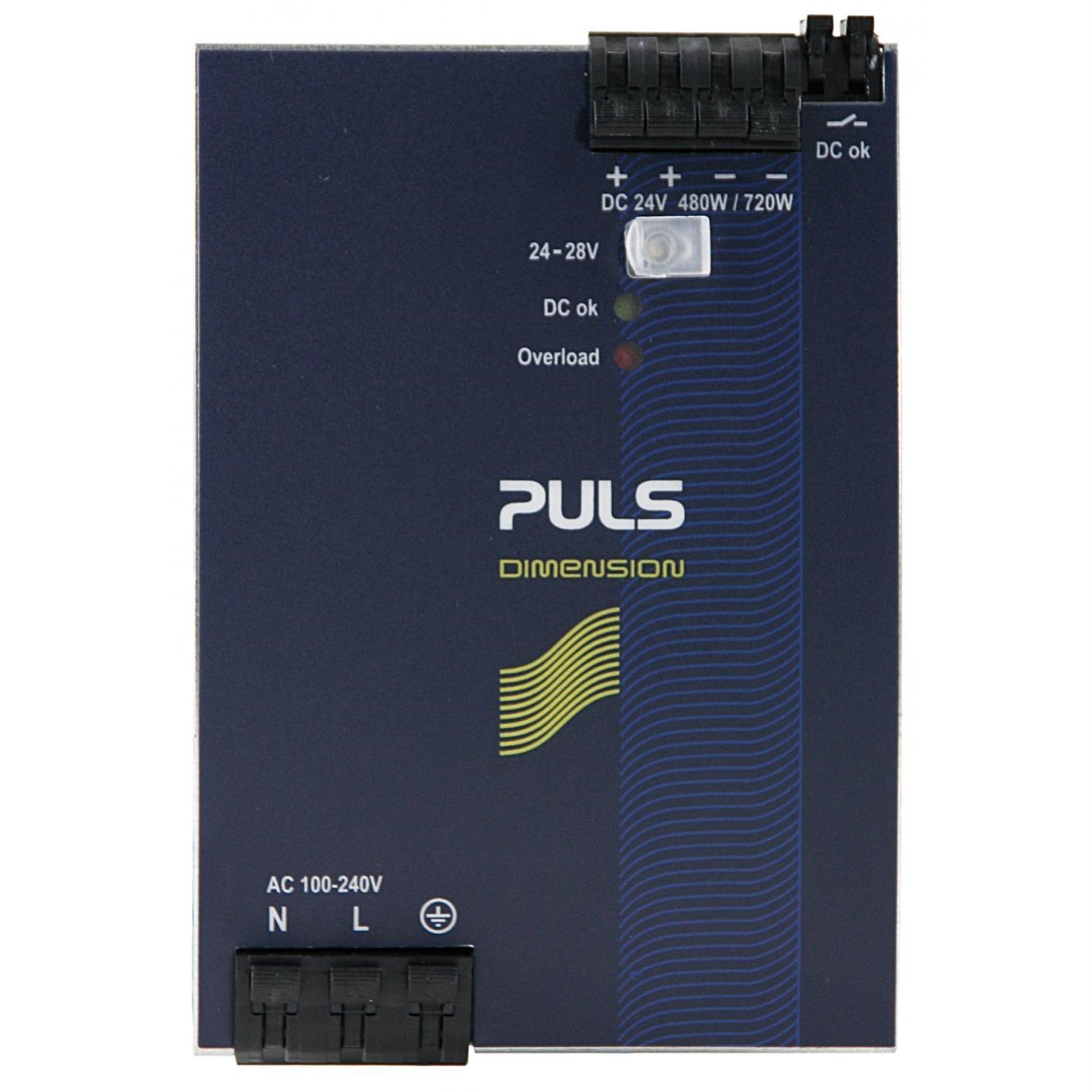

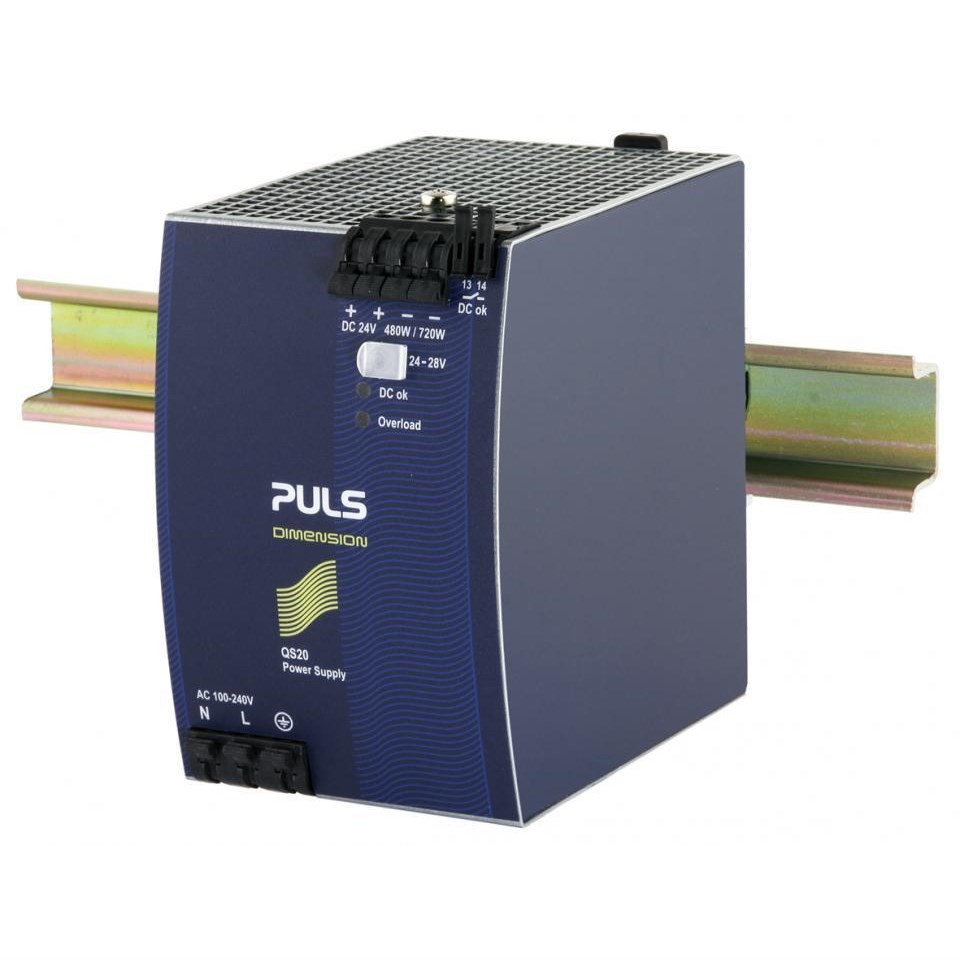

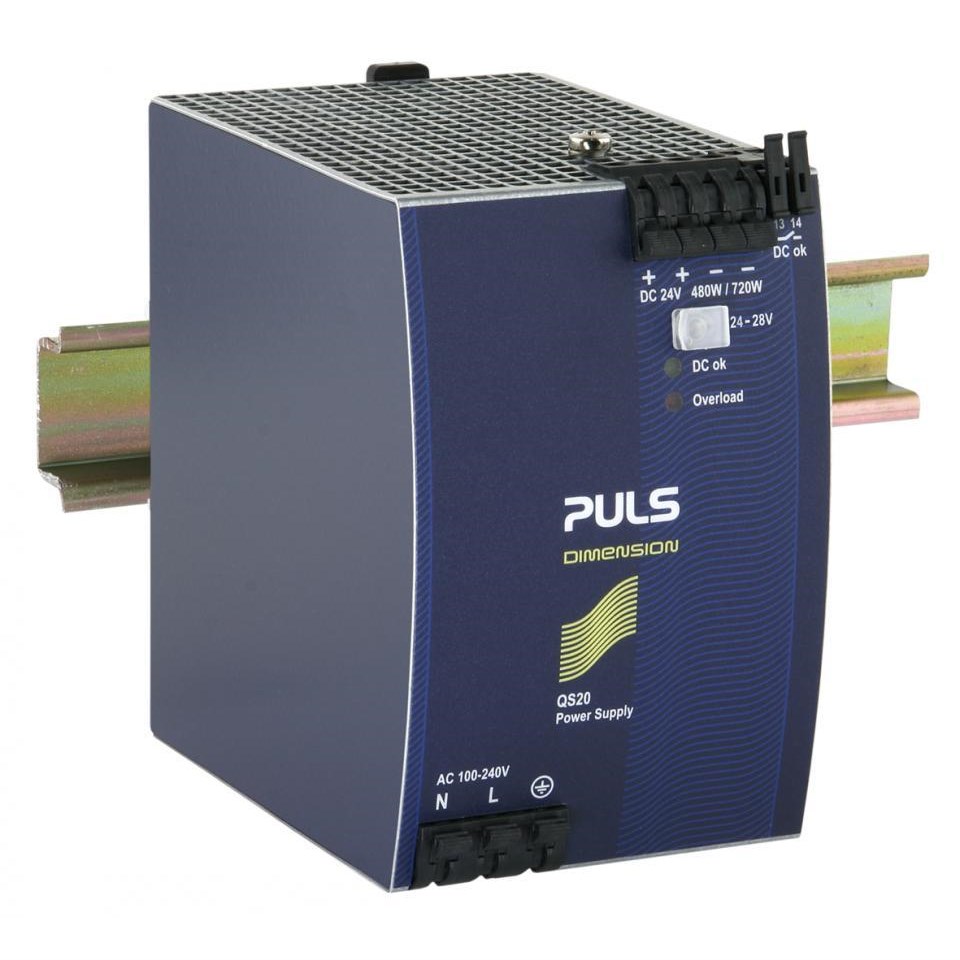

Puls QS20.241 Power Supply 1PH 110-150VDC 24VDC 20A 480 Watt 31.4 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS20.241

  • Single-phase, 20 A rated current
  • Wide-range input: 110-150 VDC, 24 VDC
  • High efficiency at 93.9%
  • Spring clamp connection for easy install
  • DIN rail mountable with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
100 - 240 V AC / 110 V - 150 V DC
Output Current - Nominal
20A
Output Current - Range
20A to 17A
Output Power
480W
Output Voltage - Nominal
24V
Output Voltage - Range
24V to 28V
Efficiency
92.4 / 93.9%
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1.2kg
Width
82mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-60, IEC 61558-2-16, ISA-71.04-1985, VDMA 24364, SEMI F47, CE, REACH, WEEE, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20
