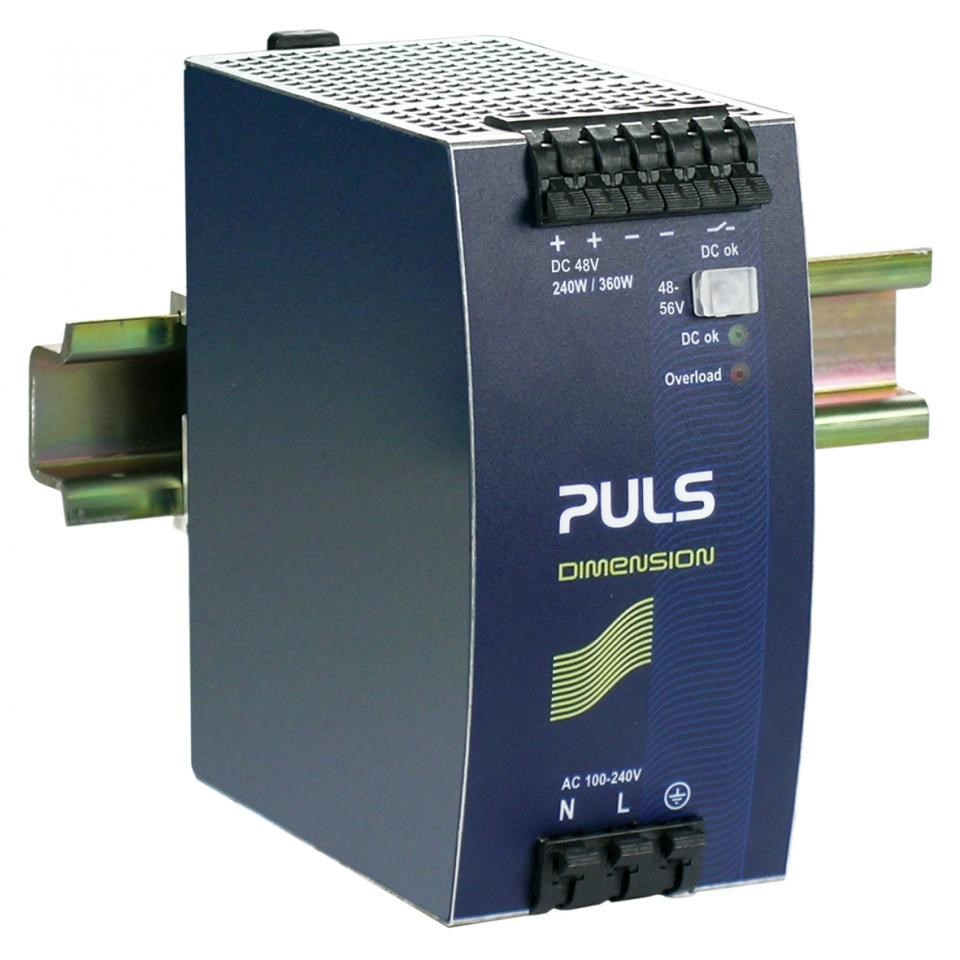

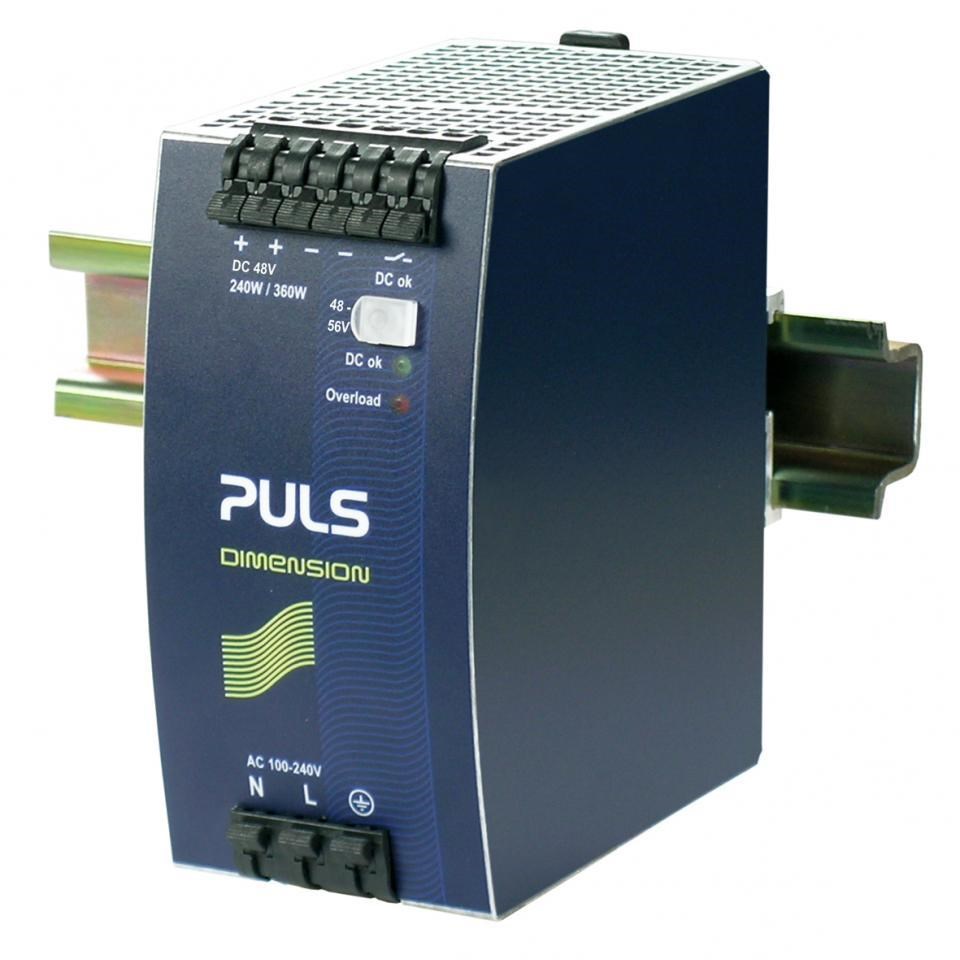

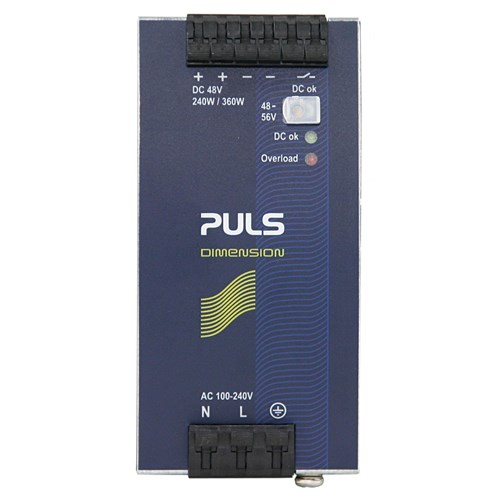

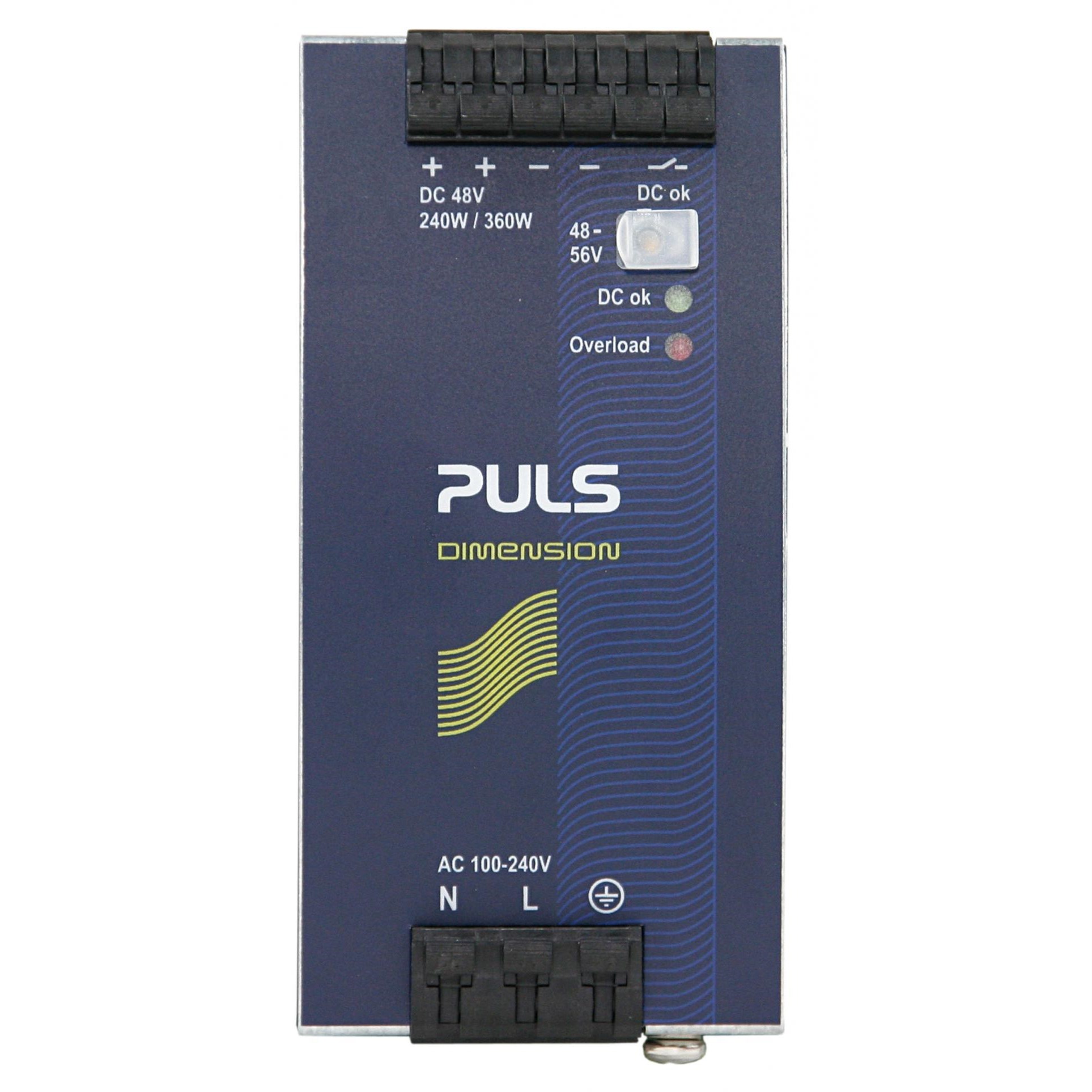

Puls QS10.481 Power Supply 1PH 110-150VDC 48VDC 5A 240 Watt 20.9 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS10.481

  • Single-phase, 5 A rated current
  • Compact size: 60x124x117 mm
  • Wide-range input type for flexibility
  • High efficiency at 92%
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
100-240V AC / 110 V - 150 V DC
Output Current - Nominal
5A
Output Current - Range
5A to 4.3A
Output Power
240W
Output Voltage - Nominal
48V
Output Voltage - Range
48V to 56V DC
Efficiency
91.2 / 92.0%
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.9kg
Width
60mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-60, IEC 61558-2-16, ISA-71.04-1985, VDMA 24364, CE, REACH, WEEE, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20
