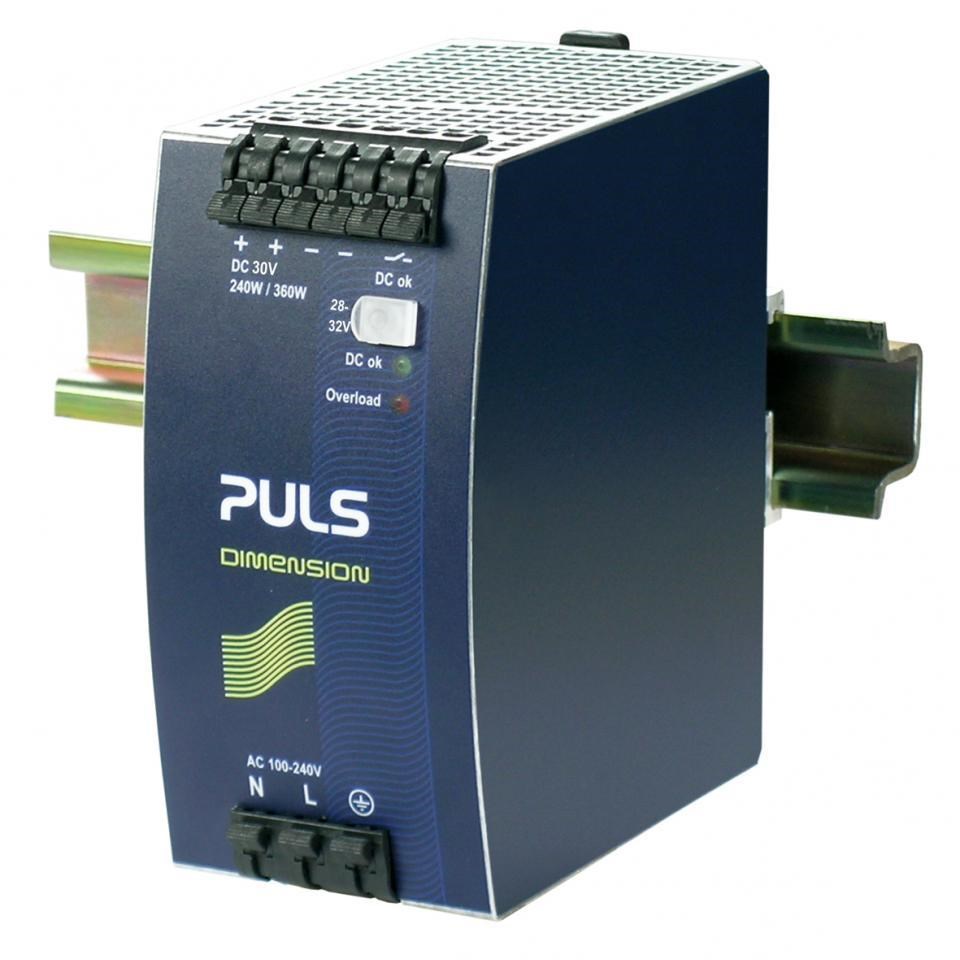

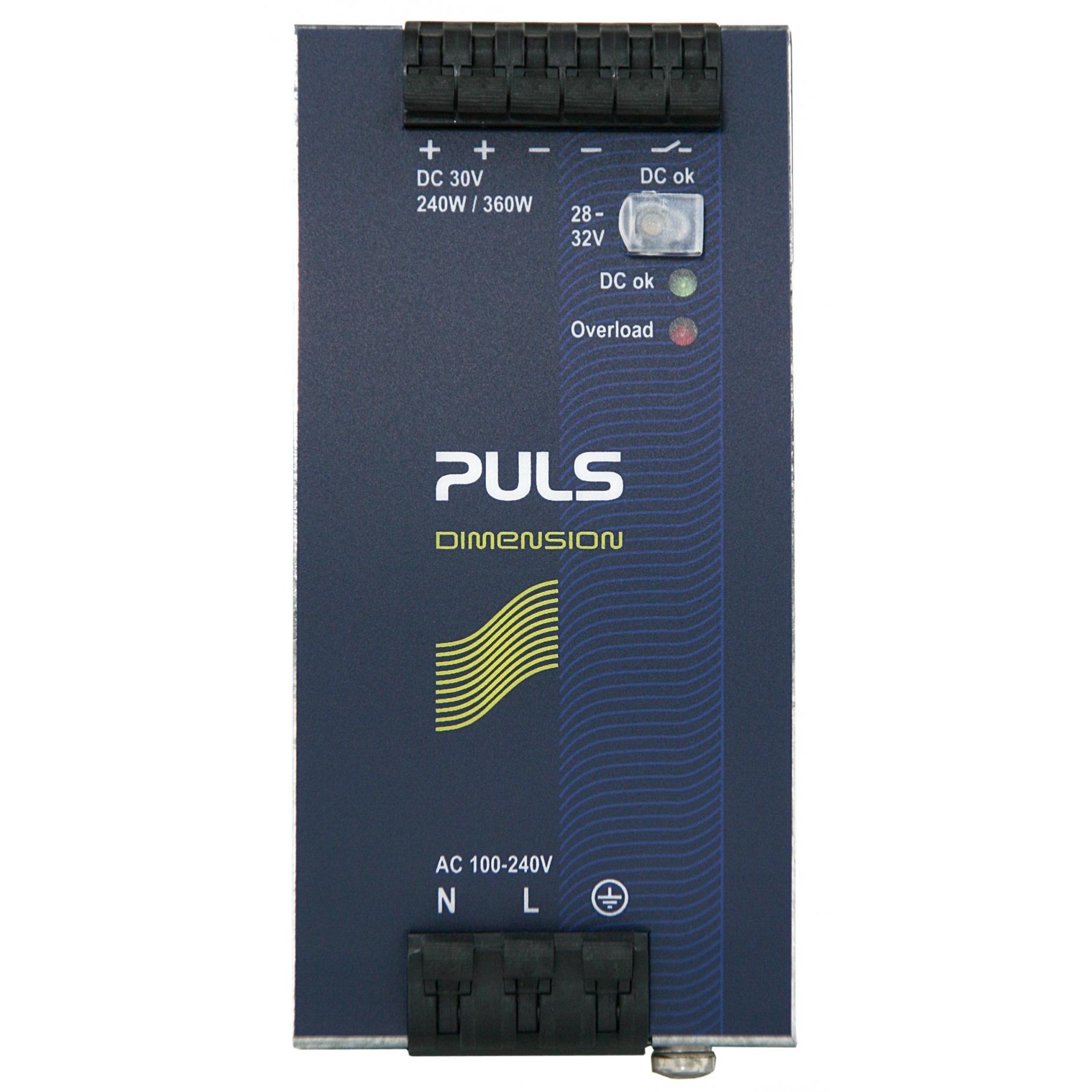

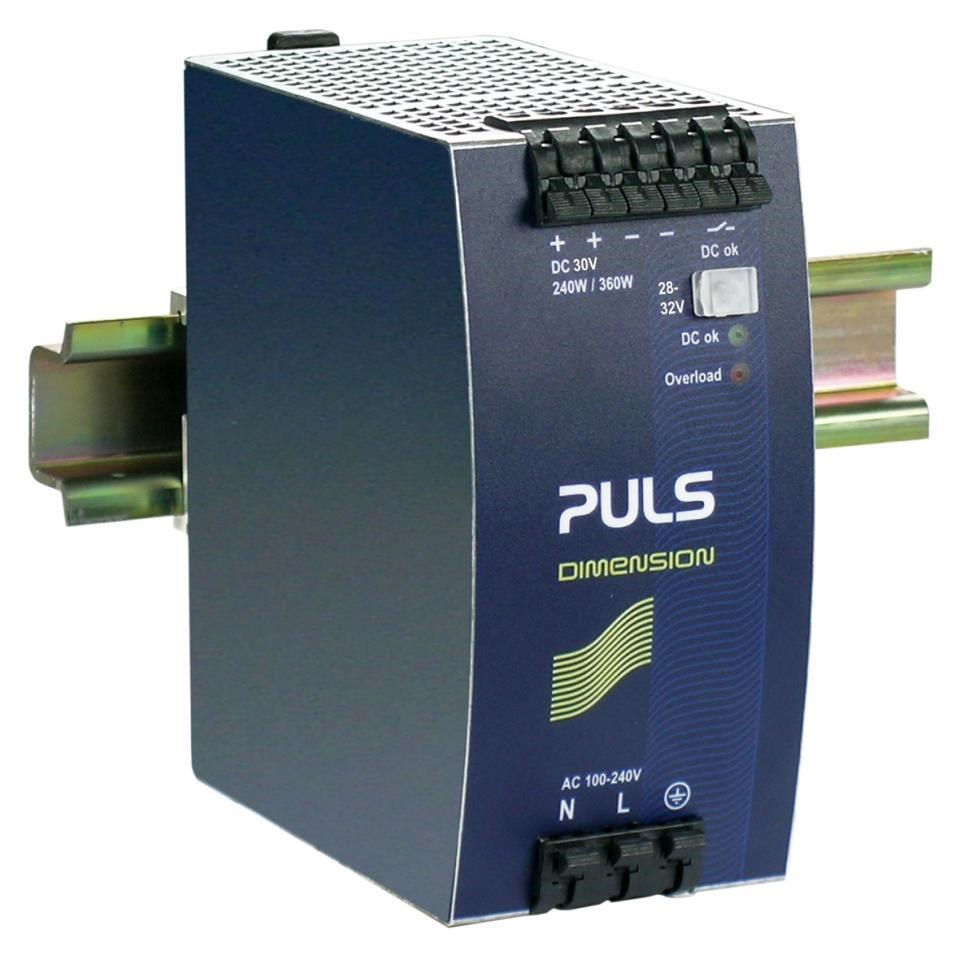

Puls QS10.301 Power Supply 1PH 110-150VDC 28VDC 8A 240 Watt 16.7 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS10.301

  • Single-phase, 8 A rated current
  • Wide-range input, 110-150 VDC & 28 VDC
  • High efficiency at 93.5%
  • Compact size: 60x124x117 mm
  • IP20 protection, DIN rail mount
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension Q

Electrical

Input Voltage
100-240 V AC / 110-150 V DC
Output Current - Nominal
0.3333333333
Output Power
240 W
Output Voltage - Nominal
30 Vdc
Output Voltage - Range
28 – 32 Vdc
Efficiency
92.6 / 93.5% at 120 / 230Vac
Terminal Type
Spring-clamp

Dimensions & Physical Data

Depth
117 mm
Height
124 mm
Weight
900 g
Width
60 mm

Environmental

Operating Temperature
-25 °C to 70 °C
